Summary of Contents for Gerni MC 2C

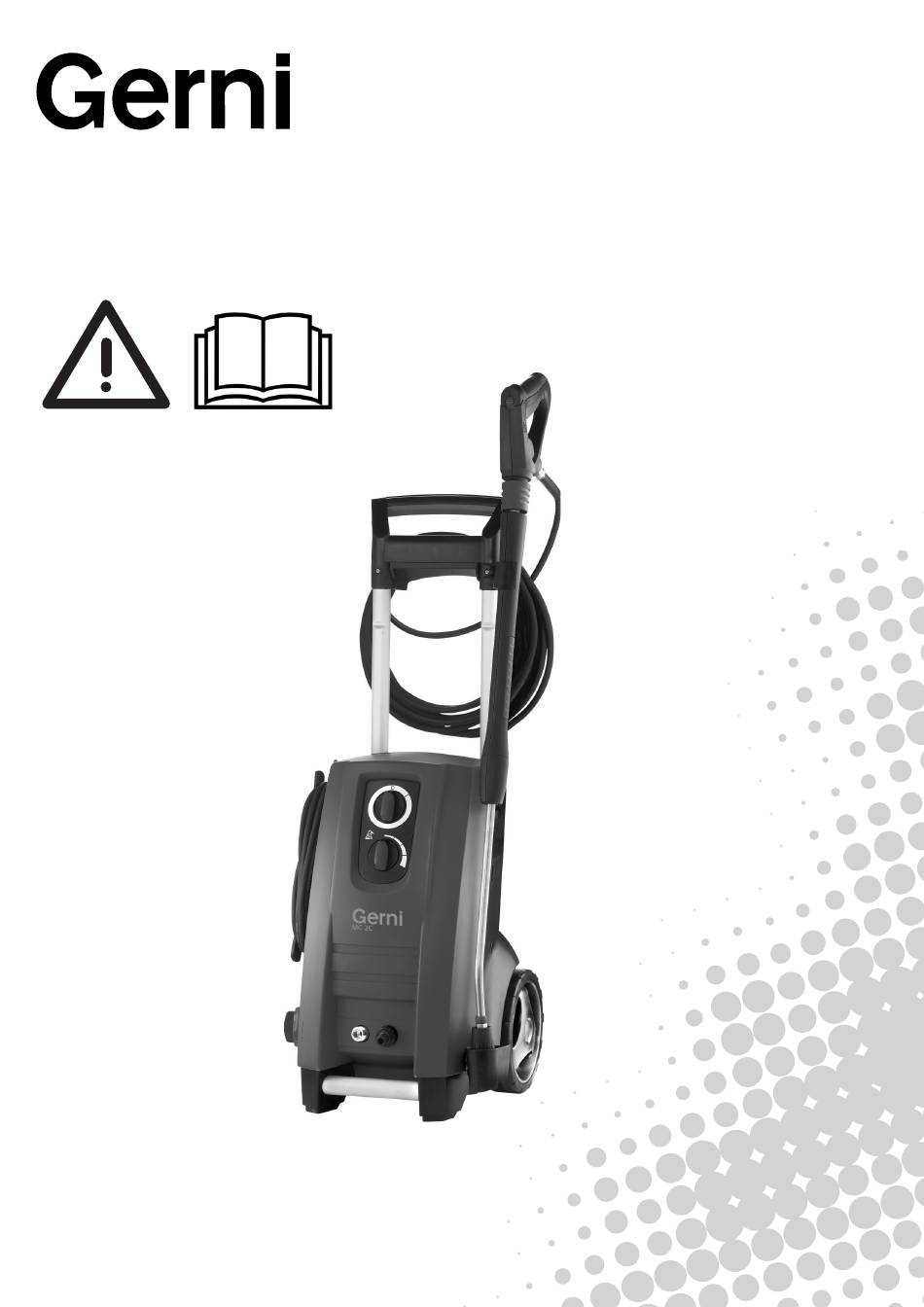

- Page 1 MC 2C User Guide 128700578 c (01.2019)
-
Page 3: Table Of Contents
Contents Introduction ....................4 1.1 Symbols used to mark instruction ...............4 Safety precautions and working techniques ..........4 Description ....................10 3.1 Application ......................10 3.2 Operation elements and model survey .............10 Before you start using your pressure washer ........11 4.1 Mounting of holders for spray lance ..............11 4.2 Mounting of hose hook (only models without hose reel) ........11 4.3 Mounting of quick coupling ................11 4.4 Mounting of high pressure hose ...............12... -
Page 4: Introduction
• Before starting up your machine please check it care- fully for any defects. If you fi nd any, do not start up your machine, contact your Gerni distributor. The in- sulation of the electric cable should be faultless and without any cracks. - Page 5 Any other use is considered as improper use. Gerni ac- cepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user.
- Page 6 • When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over. • Gerni recommends that the machine is positioned horizontally on the backside, when transported in or on a vehicle.
- Page 7 • Gerni recommends use of an extension cable drum when cable extension is needed which keeps the socket at least 60 mm above the ground.
- Page 8 inletpressure of 1 MPa/10 bars and max. 60°C. Safety devices Locking device on spray handle: • The spray handle features a locking device. When the pawl is activated, the spray handle cannot be ope- rated. Thermal sensor: • A thermal sensor protects the motor against overload- ing.
- Page 9 • Always disconnect the electrical plug from the socket prior to maintenance, cleaning and repair. • Any repair should always be made in Gerni autho rized workshop with original Gerni spare parts. • Do not attempt any maintenance not described in the instructions.
-
Page 10: Description
3 Description 3.1 Application This high-pressure washer has Only use the high-pressure been developed for semiprofes- washer for purposes described sional routine cleaning: in this manual. - Professional craftsman jobs, The safety precautions must be cleaning of vehicles, boat, observed to prevent damage caravan and minor cleaning to the machine, the surface to jobs within building and con-... -
Page 11: Before You Start Using Your Pressure Washer
4 Before you start using your pressure washer 4.1 Mounting of holders for spray lance Mount the holders for spray lance on the machine. 4.2 Mounting of hose hook Mount the hose hook (12) on (only models without the handle (2 screws). hose reel) Note: the hose hook can be mounted on the front as well as... -
Page 12: Mounting Of High Pressure Hose
4.4 Mounting of high Attach the high pressure hose (4) to the spray handle (7). pressure hose 5 Operating your pressure washer 5.1 Connection of high pres- Attach the high pressure hose sure hose (4) to the high pressure connec- tion of the machine (3). -
Page 13: Water Connection
5.3 Water connection An ordinary 1/2" garden hose of IMPORTANT! Only use wa- min. 10 m and max. 25 m will ter without any impurities. If be suitable. there is a risk of silt, sand or sediment in the inlet water (i.e. from your own well), an addi- tional fi... -
Page 14: Start The Machine (When Connected To Open Containers (Suction Mode))
3. Shut off the water supply and When releasing the trigger of activate the trigger to relieve the spray handle, the machine the machine of pressure. automatically stops. The ma- 4. Lock the spray handle. chine will start again when you re-activate the spray handle. -
Page 15: Regulation Of Pressure / Water Volume
The cover has a standard thread Remount the fi lter in the suction and fi ts common detergent con- hose. tainers. If your container does not have a standard thread, Extra detergent hose can be detach the fi lter from the suc- pulled out of the machine. -
Page 16: After Using Your Pressure Washer
7 After using your pressure washer 7.1 Storing the washer The machine should be sto- the side of the machine. red in a frost-free room! 4. Separate spray handle and spray lance. Pump, hose and accessories 5. Detach high pres sure hose, should always be emptied of coil it up and place it on the water prior to storing as follows:... -
Page 17: Maintenance
8 Maintenance Clean the connectors of dust WARNING! Always disconnect the electrical plug from the and sand. Clean the nozzles. socket prior to maintenance or cleaning. To ensure a long and problem Any repair should always be free working life, please take made in an authorized work- the following advice: shop with original spare parts. -
Page 18: Trouble-Shooting
9 Trouble-shooting Please ensure that you check the following before contacting the Gerni service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse. Switch off other machines. -
Page 19: Further Information
Our general conditions of busi- Subject to change as a result of ness are applicable with regard technical advances. to the guarantee. 11 Main Technical Data Type MC 2C-120/520 Electrical Specification Rated voltage 230-240 Rated frequency Rated power consumption Current 10.0... -
Page 20: Eu Declaration Of Conformity
Kornmarksvej 1 DK-2605 Broendby DENMARK Hereby solely declare, that the Product: HPW - Consumer Description: 230V 1~, 50 Hz, IPX5 Type: MC 2C series Is in compliance with the following standards: EN 60335-1:2012+A11:2014 EN 60335-2-79:2012 EN 55014-1:2017 EN 55014-2: 2015... - Page 24 NEW ZEALAND: AUSTRALIA: Accent Tools Ltd Nilfi sk Pty Ltd 232 Bush Rd Unit 1/13 Bessemer Street Albany Blacktown NSW 2148 Auckland 0632 Phone: 1300 556 710 Phone: 09 968 2610 E-mail: Info.au@nilfi sk.com E-mail: sales@accent-tools.co.nz...
