- Page 1 POSEIDON 5-6-7 Why compromise Betjeningsvejledning Bruksanvisning Bruksanvisning Operating guide Betribsanleitung Mode d’emploi Gebruiksaanwijzingen Instrucciones de manejo Instruções para uso Käyttöopas Instrukcja obsługi Ελληνικά - οδηγίες λειτουργίάς Operating guide POSEIDON 5-6-7...
-
Page 3: Table Of Contents
POSEIDON 5-6-7 Contents Symbols used to mark instructions .....................4 Important safety instructions ...................4 Description.........................7 Use per day ..........................7 Purpose ...........................7 Operating elements .........................8 Before starting the cleaner ....................9 Setting up the cleaner ......................9 Check the oil level ........................9 Fill up detergent tank ......................10 Connecting the high pressure hose ..................10... -
Page 4: Symbols Used To Mark Instructions
POSEIDON 5-6-7 Symbols used to mark instructions Safety instructions in these This indicates tips and instruc- operating instructions which tions to simplify work and to en- must be observed to prevent sure safe operation. risks to persons are marked with this danger symbol. - Page 5 0° jet. Keep some distance between high pressure nozzle Operation Ensure that the machine is regu- and surface in order to prevent larly serviced by Authorised Gerni the surface from damage. CAUTION! dealers in accordance with the Unsuitable extension leads can maintenace plan.
- Page 6 Please contact the Gerni service Safety devices department or an authorised Thermal sensor: specialist work-shop for all other...
-
Page 7: Description
POSEIDON 5-6-7 2 Description Use per day We recommend these products for an optional use of approx. X-hours use per day. POSEIDON 5 Hours use per day Recommended for use x hours / day POSEIDON 6 Hours use per day... -
Page 8: Operating Elements

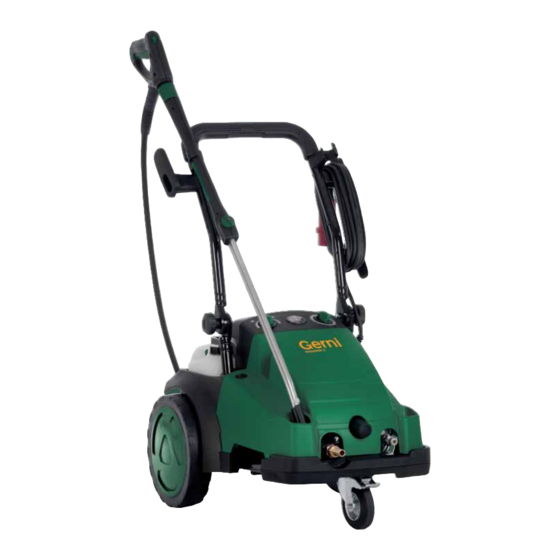

POSEIDON 5-6-7 Operating elements 1. Push/pull handle 2. Spray gun 3. Electrical lead 4. Holder for high pressure hose 5. High-pressure hose 6. Fastening screw 7. Lance 8. Parking brake 9. High-pressure hose connection (on standard models without hose reel) 10. -
Page 9: Before Starting The Cleaner
1. Before using the cleaner for the first time, check it care- fully to detect any faults or damage. 2. In the event of any damage contact your Gerni dealer immediately. 3. Unfold and lock the handle in working position. Check the oil level 4. -
Page 10: Fill Up Detergent Tank
POSEIDON 5-6-7 Fill up detergent tank 1. Fill up detergent tank with prediluted Gerni detergent. 2. Pull detergent hose and filter out of the storage and put it through the opening of the detergent tank filler cap. Connecting the high 1. -
Page 11: Electrical Connection
POSEIDON 5-6-7 NOTE! In the case of poor water quality We recommend the use of a tex- (sand, etc.), we recommend that tile-reinforced water hose with a a fine water filter is fitted to the nominal diameter of min. 3/4"... -
Page 12: Ba Valve
POSEIDON 5-6-7 BA valve This high pressure washer/cleaner is only allowed to be con- nected with the drinking water mains, when an appropriate backflow preventer has been installed, Type BA according to EN 60335-2-79. The BA valve can be ordered under number: (a) Female •... -
Page 13: Control / Operation
POSEIDON 5-6-7 4 Control / Operation Connecting the spray 1. Pull back the blue quick- lance to the spray gun release grip (A) of the spray gun. 2. Insert the nipple of the spray lance (B) into the quick- release connection and re- lease the coupling (A). - Page 14 POSEIDON 5-6-7 4.2.1 Switching on the 1. Before connecting the cleaner when it is suction set: 61256 to the connected to open cleaner, fill the hose with tanks in suction mode water. (Pressure activated model) 2. Turn the main switch to posi tion "...
-
Page 15: Pressure Regulation With Tornado Plus Lance And Powerspeedvario Plus Lance
POSEIDON 5-6-7 Pressure regulation 1. Turn the twist grip on the with Tornado Plus lance: lance and PowerSpeedVario Plus – High pressure = lance. clockwise (+) – Low pressure = anticlockwise (–) 1. Twist cap of the FlexoPower- Pressure Plus nozzle head:... -
Page 16: Lifting With Crane
POSEIDON 5-6-7 Lifting with crane 1. Before crane lifting the machine should be in balance. Loosen the screw (A), push the handle (B) a little forward. 2. When the two marks are aligned (C), the handle is in crane-lifting -position. -
Page 17: Applications And Methods
POSEIDON 5-6-7 5 Applications and methods Techniques Efficient high pressure cleaning is achieved by following a few guidelines, combined with your own personal experience of specific cleaning tasks. Accessories and detergents, when correctly chosen, can increase the efficiency of your pressure washer. Here is some basic information about cleaning. -
Page 18: Some Typical Cleaning Tasks
POSEIDON 5-6-7 Some typical cleaning tasks 5.2.1 Agriculture Task Accessories Method Stables Chemical Foam 1. Soaking – apply foam to all surfaces (bottom to top) Pig Pens, Sties Injectors and wait for approx. 10 - 30 minutes. Foam lance 2. Remove the dirt from surfaces with the high... - Page 19 These are merely several examples of cleaning tasks that can be solved by a pressure washer in asso- ciation with accessories and detergents. Each cleaning task is different. Please consult your local dealer or Gerni representative in order to discuss the best solution for your own cleaning tasks. Options / model variants...
-
Page 20: After Using The Cleaner
POSEIDON 5-6-7 6 After using the cleaner Switching off the 1. Turn the main switch to posi- cleaner tion „OFF“. 2. Close water tap. 3. Squeeze the spray gun han- dle until the cleaner is de- pressurised. 4. Lock the safety catch on the spray gun. -
Page 21: Storing The Cleaner (Below 0°C)
POSEIDON 5-6-7 2. At last, turn and lock the cable end in the cable lock (C). Storing the cleaner Store the cleaner in a dry room without danger of frost or protect as (below 0°C) below: CAUTION! If the high-pressure cleaner is stored in a room with temperatures ... -
Page 22: Maintenance
POSEIDON 5-6-7 7 Maintenance Maintenance plan First time Every 500 after 50 Weekly operating As required operating hours hours 7.2.1 Cleaning water inlet fi lter 7.2.2 Checking pump oil level 7.2.3 Changing pump oil First change - and ... - Page 23 POSEIDON 5-6-7 2. If necessary, add oil. Fill to MAX level (B). 7.2.3 Changing the pump oil 1. Before changing the oil, al- low the cleaner to become warm. 2. Remove cabinet. 3. Loosen and remove drain plug (C).The plug magnet has...
-
Page 24: Troubleshooting
• The pump is blocked or • Contact the Gerni customer frozen service • Incorrect cross-section or • Use lead with correct cross length of the extension lead... -
Page 25: Further Information
POSEIDON 5-6-7 Fault Cause Remedy No detergents drawn in • Detergent tank empty • Top up detergent tank • The cap on the FlexoPower- • Set to low pressure Plus nozzle head is not set to low pressure • Double lance are not adju- •... -
Page 26: Technical Data
POSEIDON 5-6-7 Technical Data POSEIDON 5-30 PA POSEIDON 5-56 PA POSEIDON 6-65 FA Country variant V/ph/Hz Possible voltage, V/ph/Frez. 240V/1ph/50Hz 415V/3ph/50Hz 415V/3ph/50Hz Fuse Power rating bar (MPa) Working pressure p 115(11,5) 200(20) 180 (18) Water flow Q 1200 bar (MPa) Max. - Page 28 AUSTRALIA: Nilfi sk-Advance Pty LTd Unit 1/13 Bessemer Street Blacktown NSW 2148 Phone: 1300 556 710 E-mail: sales@gerni.com.au...
