Protekt PB-30 Instruction Manual

Protekt PB-30 Instruction Manual

Work positioning belt

Advertisement

Quick Links

CONTENT OF BELT IDENTITY LABEL
PB-30
WORK POSITIONING BELT
Ref. AP 030
EN 358:1999
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED.
THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT.
ANY INFORMATION ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD BY A COMPETENT PERSON.
THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT UTILIZATION.
DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY CARD.
ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.
IDENTITY CARD
MODEL AND TYPE OF EQUIPMENT
REF. NUMBER
SERIAL NUMBER
USER NAME
DATE OF PURCHASE
PERIODIC EXAMINATION AND REPAIR HISTORY
REASON FOR
DATE
ENTRY PERIODIC EXAMINATION
OR REPAIR
AND OTHER REVELANT INFORMATIONS
1
2
3
4
PROTEKT - 93-403 LODZ, ul. Starorudzka 9, POLAND
TEL: (48 42) 680 20 83, FAX:
Size:
M-XL
XXL
Date
of manufacture: 03/2003
Serial
number: 0000001
DATE OF MANUF.
DATE OF PUTTING INTO OPERATION
DEFECTS NOTED,
NAME AND SIGNATURE
REPAIRS CARRIED OUT
OF COMPETENT PERSON
(48 42)
680 20 93
Instruction Manual
Read carefully
the manual
before use
the equipment
Apave Exploitation France SAS (n°0082),6 Rue du Général Audran,92412 COURBEVOIE cedex France
Notified body inspecting the equipment according to the article 11 of Directive 89/686/EEC:
The work positioning belt is the component of the personal protective equipment for work positioning and prevention of falls from
a height. The belt complies with EN 358.
The function of the belt is to prevent an occurrence of a fall from the height.

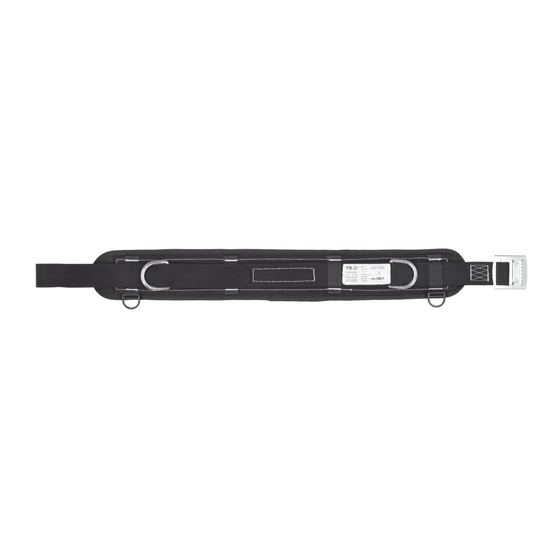

DESCRIPTION
The work positioning belt is made of one piece of polyamide webbing which is suitable sewed and connected by metal buckle.
This configuration guarantee full safety and comfort work.
Work positioning belt can be equipped with fixed lanyard connected to one of lateral D ring of the belt.
The lanyard can be equipped with certified connectors complied with EN 362.
SIZES
The belt is manufactured in two sizes:
- universal: M-XL
- extra large: XXL
ADMISSIBLE TIME OF USE
Work positioning belt PB-30 can be used for a maximum of 5 years, counting from the date of first issue for operations, provided it
has passed a pre-use visual inspection. After first five years of using the belt must be made a subject to the manufacturer's control.
The manufacturer's control can be made by:
- the manufacturer
- or person recommended by manufacturer
- or company recommended by the manufacturer.
During fabric control will be established time of usage till next detailed manufacturer's control.
BASIC EQUIPMENT
front connecting and adjusting
!
buckle
- for comfort wearing
and using of the belt
side attaching steel D-rings -
!
for attaching work positioning
system
belt pad
- suitably formed,
!
ergonomic, made of special
foam
small plastic "D" rings
- for
!
attaching tool bags
work positioning lanyard
!
PERIODIC
made of polyester/polyamide
EXAMINATION
NEXT DUE DATE
webbing, fixed to one of side
belt's D-ring. The lanyard can
be manufactured in a range of
lengths from 0,5 m to 1,9 m.
EN 358:1999
WORK POSITIONING BELT
0082
Ref. AP 030
CETE APAVE SUDEUROPE, BP 193, 13322 Marseille, France - 0082
side steel D-rings
for attaching
work positioning
system
small "D" ring
for attaching
tool bag
lanyard
PB-30
belt pad
connecting
small "D" ring
and adjusting
for attaching
buckle
tool bag
