Summary of Contents for Protekt RJ200
- Page 1 DAVIT INSTRUCTION MANUAL EN 795:2012 Class B Reference number: BEFORE USE READ THIS MANUAL CAREFULLY RJ200 edition: 3/25.02.2019 pl p. 1...
-
Page 2: Table Of Contents
Complete folding ...............................14 Inspection of the device before use ..........................14 Periodic inspection of the device ..........................15 Work field range when using one device RJ200 .......................15 Work field range when using two devices RJ200 .....................16 Additional inspection of individual fall protection equipment ..................16 Notes ..................................17... -
Page 3: General Information

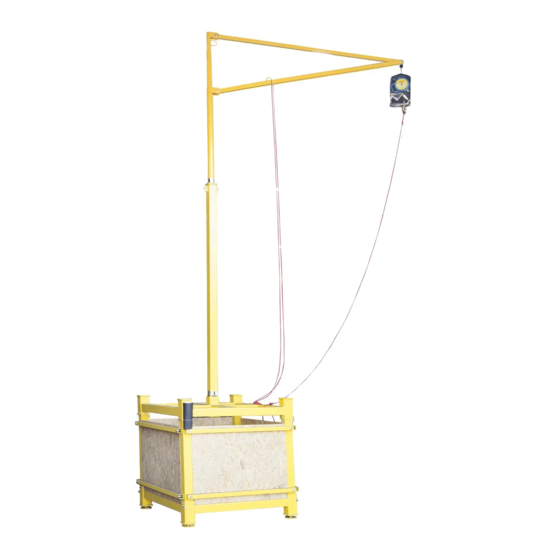

The device RJ200 complies with EN 795:2012 for Class B devices. The device RJ200 is designed to provide protection against fall from a height only for one person. The device should be placed in one location. If needed it can be moved to another location of adequate characteristics. -
Page 4: Safety Instructions
Be particularly careful when handling the device from one location of its use to another. If any damages to the product are found, the affected part must be replaced. • It is necessary to draw a rescue plan for the location where the device is to be used in case if the device RJ200 arrests a fall. •... -
Page 5: Inspection Of The Device After Arresting A Fall
Inspection of the device after arresting a fall When the device RJ200 has been used to arrest a fall, it must be withdrawn from use immediately and inspected by a competent person. In case of any doubts please contact the manufacturer. -
Page 6: Technical Data
- RJ200.03.000 – 4 pcs - RJ200.04.000 - 1 pc - RJ200.07.000 - 8 pcs - RJ200.08.000 - 1 pc - RJ200.09.000 - 4 pcs RJ200 – spare parts price list Example uses Part (drawing) Quantity Part name Method of use... - Page 7 DAVIT INSTRUCTION MANUAL EN 795:2012 Class B Reference number: BEFORE USE READ THIS MANUAL CAREFULLY RJ200 (Housing tube) Śruba M12x90 (Bolt) Podkładka M12 (Washer) ASB500-130 Locking pin RJ200.09.000 Płyta OSB #18 mm 12.400 boczna (OSB side panel) RJ200.08.000 Płyta OSB #18 mm 20.200...

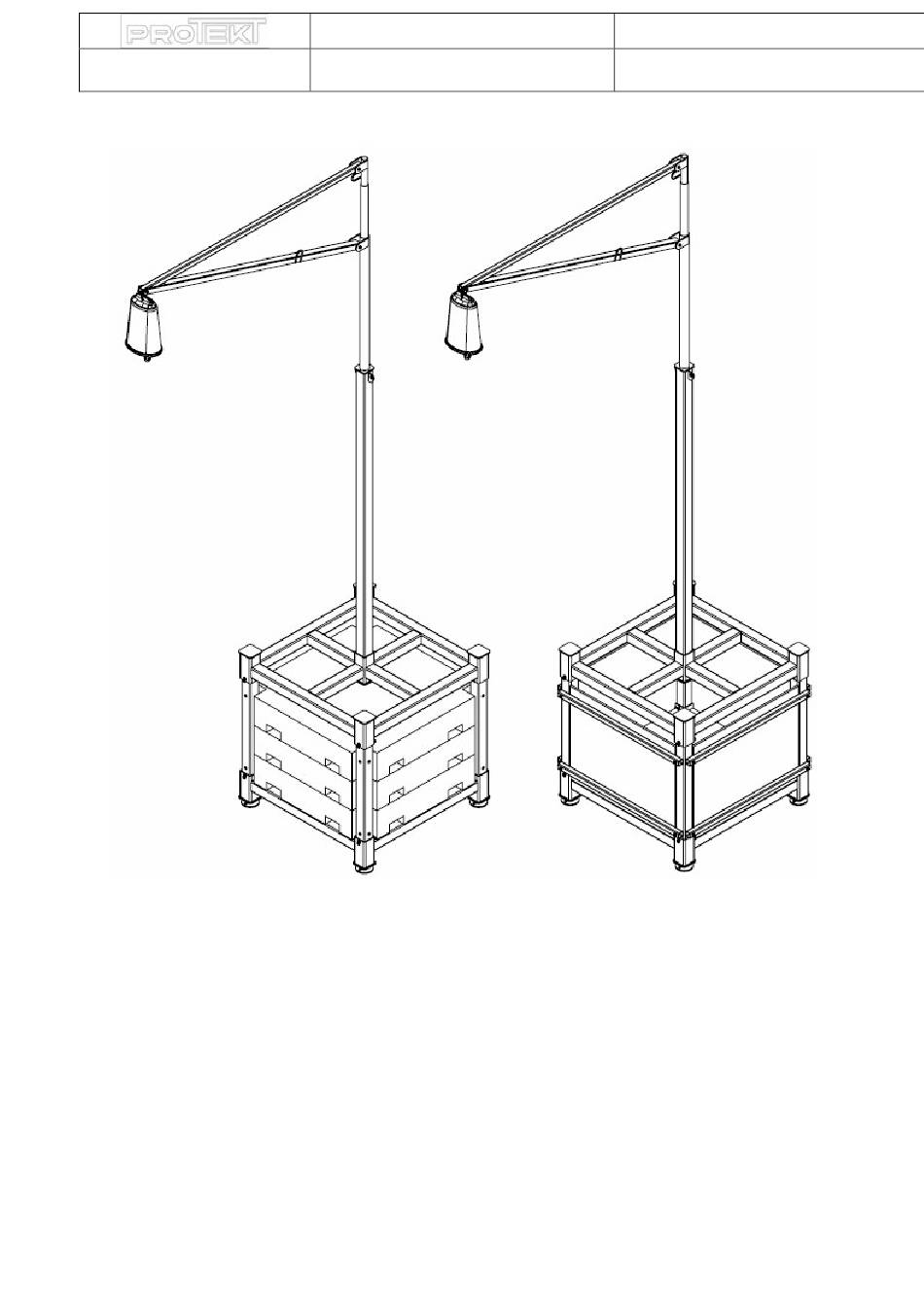

- Page 8 METHOD OF USE NO. 1 METHOD OF USE NO. 2 Rotary arm - 65.0kg The device RJ200 can be loaded with The device RJ200 can be loaded by Concrete unit weight - 1000.0kg +/- 20.0kg any ballast of a total weight of min.
- Page 9 RJ200.12.000 (sprzedawana oddzielnie) RJ200.12.000 (sold separately) Odważnik betonowy RJ200.10.000 o Concrete unit weight RJ200.10.000 with wadze 1000kg (sprzedawany a weight of 1000kg (sold separately) oddzielnie) UWAGA!!! Należy stosować min. 3 NOTE!!! Use at least 3 weights.
- Page 10 WEIGHT: METHOD OF USE NO. 3B CONDITIONS OF USE: Socket - 76.4kg The device RJ200 can be used as an anchor point to be Weather conditions: (+50)°C; (- Rotary arm - 65.0kg embedded in concrete elements (e.g. columns, attics, etc.).
- Page 11 DAVIT INSTRUCTION MANUAL EN 795:2012 Class B Reference number: BEFORE USE READ THIS MANUAL CAREFULLY RJ200 opuszczania snap hook of NOTE!!! zatrzaśnika retractable type fall urządzenia arrester 1. Refer to other methods samohamownego RJ200.12.000 of use on the following RJ200.12.000 (sold separately) pages.
- Page 12 Device RJ200 can be used as an 30)°C; humidity. 30)°C; humidity. Device RJ200 can be used as an anchor concrete structures anchor point for mounting on steel Static strength: min. 12 kN (in Static strength: min. 12 kN (in...
- Page 13 DAVIT INSTRUCTION MANUAL EN 795:2012 Class B Reference number: BEFORE USE READ THIS MANUAL CAREFULLY RJ200 NOTE!!! Ramię obrotowe Rotary arm 1. Refer to other methods of use on the previous pages. Linka do opuszczania zatrzaśnika urządzenia Line for lowering of snap hook of retractable type fall 2.
-
Page 14: Installation Of The Device
BEFORE USE READ THIS MANUAL CAREFULLY RJ200 INSTALLATION OF THE DEVICE (Method of use no. 1 and 2) Order of installation Before installing the device RJ200 prepare necessary tools as follows: • Hammer • Spirit level • Combination open-end wrenches 19mm (2 pcs.) List of elements: Śruba M12x90 (Bolt) - Page 15 “10” and push cotters at the end. pionowego ramienia the arm 3. Using forklift truck place three concrete unit weights (RJ200.10.000) with a WIDOK A VIEW A weight of 1000kg each on base “1” or fix beams “7” to four legs “3” with bolts M12...
- Page 16 INSTALLATION OF THE DEVICE (Method of use no. 3 and 3B) Method of use no. 3 Method of use no. 3B Order of installation Before installing the device RJ200 prepare necessary tools as follows: • Hammer • Spirit level • Combination open-end wrenches 19mm (2 pcs.)
- Page 17 RJ200 INSTALLATION OF THE DEVICE (Method of use no. 4) Method of use no. 4 Order of installation Before installing the device RJ200 prepare necessary tools as follows: • Hammer • Spirit level • Set of combination open-end wrenches List of elements: Płyta (Plate)
- Page 18 INSTALLATION OF THE DEVICE (Method of use no. 5 and 6) Method of use no. 5 and 6 Order of installation Before installing the device RJ200 prepare necessary tools as follows: • Hammer • Spirit level • Set of combination open-end wrenches •...
-
Page 19: Complete Folding
DAVIT INSTRUCTION MANUAL Reference number: BEFORE USE READ THIS MANUAL CAREFULLY EN 795:2012 Class B RJ200 Complete folding Inspection of the device before use Before each use of the device carry out its visual inspection • Make sure that there are no cracks or deformations on the device •... -
Page 20: Periodic Inspection Of The Device
RJ200 Periodic inspection of the device According to EN 365 it is recommended to perform periodic inspections of the device RJ200. Periodic inspection should be carried out by a service point authorized by the manufacturer. Periodic inspection (min. once a year) should be carried out by a competent person or a service point authorised by the manufacturer. -
Page 21: Work Field Range When Using Two Devices Rj200
Base of device Dimensions are given in millimetres [mm]. Additional inspection of individual fall protection equipment • When working with the device RJ200 use a retractable type fall arrester • Inspect if snap hooks are closed and locked • Use correctly adjusted full body harness edition: 3/25.02.2019 pl... -
Page 22: Notes
DAVIT INSTRUCTION MANUAL Reference number: BEFORE USE READ THIS MANUAL CAREFULLY EN 795:2012 Class B RJ200 Notes: ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
