- Page 1 DAVIT INSTRUCTION MANUAL Katalognummer: BEFORE USE READ THIS MANUAL CAREFULLY...
-
Page 2: General Information

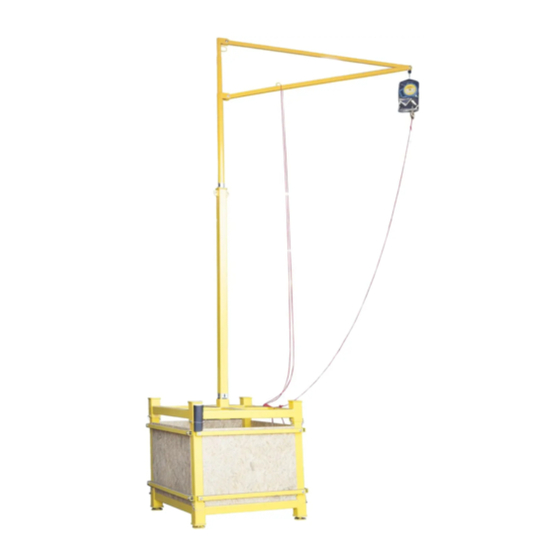

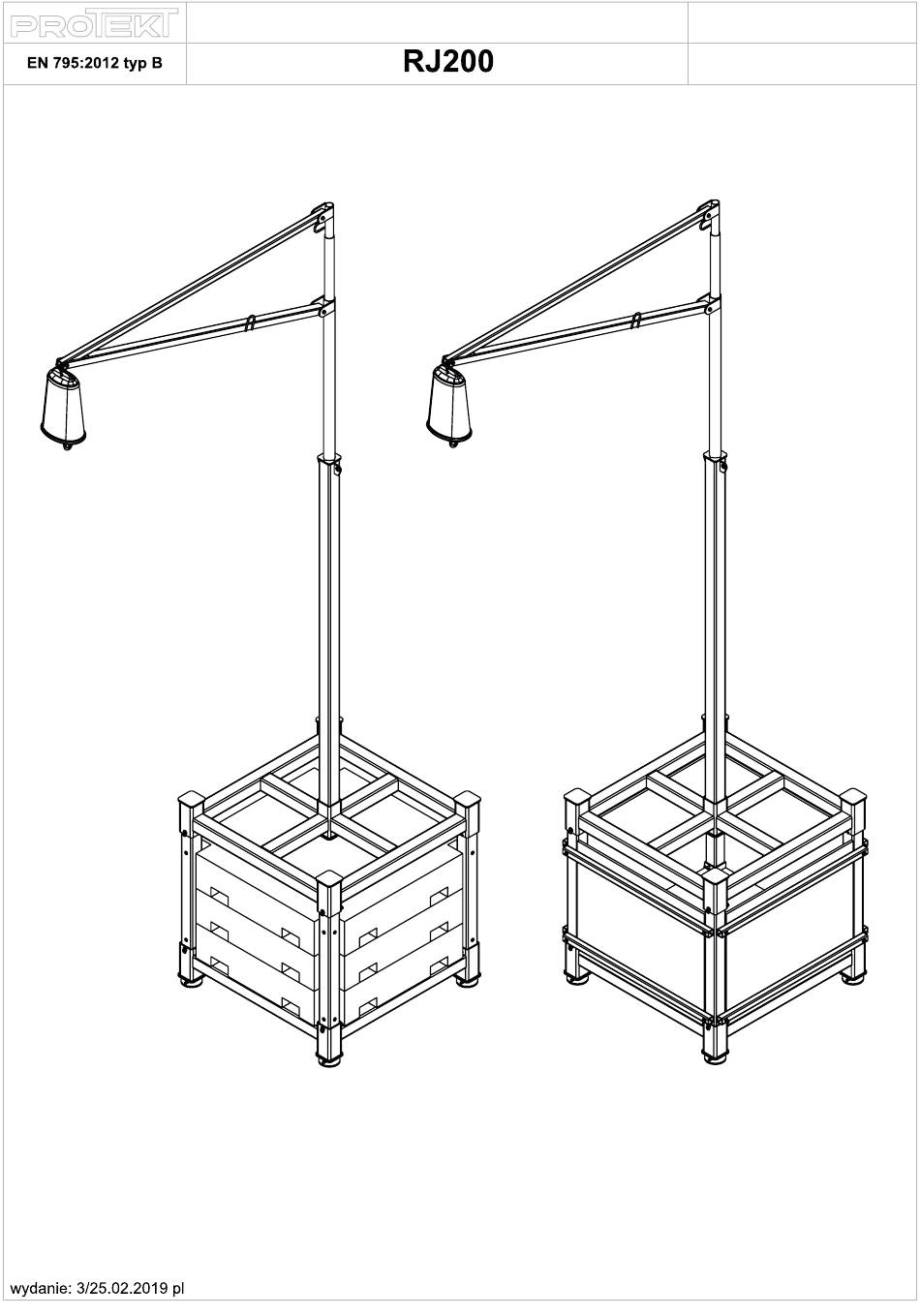

GENERAL INFORMATION The device RJ200 is designed for safe work when loading and unloading of vehicles and levellers. Anchor point for retractable type fall arrester is at 6.25m and enables operation at 5.00m from the “zero” level and within a 3.50m radius from the device's arm rotation axis. - Page 3 TECHNICAL DATA NOTE!!! Components of the device / configurations 1. Refer to methods of use on the following pages. 2. Before use read instruction manual BASKET contains: RJ200 – spare parts price list Example uses Part (drawing) Quantity Part name Method of use Method of use Method of use...
- Page 4 TECHNICAL DATA Components of the device / configurations Snap hook AZ011 (sold Technical parameters RJ200: separately) Dimensions: Retractable type fall arrester guard OS010 (sold separately) Socket Retractable type fall arrester CR240/10m (sold separately) Line for lowering of snap hook of Fatning retractable type fall arrester RJ200.12.000 (sold separately)
- Page 5 TECHNICAL DATA Components of the device / configurations Technical parameters RJ200: Technical parameters RJ200: Dimensions: Dimensions: Rotary arm Rotary arm Housing tube Housing tube Line for lowering of snap hook of retractable type fall arrester RJ200.12.000 snap hook of retractable type (sold separately) fall arrester RJ200.12.000 (sold separately)
- Page 6 TECHNICAL DATA Components of the device / configurations TECHNICAL PARAMETERS RJ200: DIMENSIONS: TECHNICAL PARAMETERS RJ200: DIMENSIONS: Rotary arm Rotary arm Line for lowering of snap hook of retractable type Socket Line for lowering of snap fall arrester hook of retractable type RJ200.12.000 fall arrester (sold separately)
- Page 7 INSTALLATION OF THE DEVICE (Method of use no. 1 and 2) Order of installation Before installing the device RJ200 prepare necessary tools as follows: Hammer Spirit level Combination open-end wrenches 19mm (2 pcs.) Points for installation List of elements: of slings for lifting of the arm Ś...
- Page 8 INSTALLATION OF THE DEVICE (Method of use no. 4) INSTALLATION OF THE DEVICE (Method of use no. 3 and 3B) Order of installation Before installing the device RJ200 prepare necessary tools as follows: Order of installation Before installing the device RJ200 prepare necessary tools as follows: Hammer Spirit level Hammer...
- Page 9 Method of use no. 5 and 6 INSTALLATION OF THE DEVICE (Method of use no. 5 and 6) Order of installation Before installing the device RJ200 prepare necessary tools as follows: Hammer Spirit level Set of combination open-end wrenches Hammer drill (for mounting in concrete) Masonry drill Ø18mm (for fixing of chemical anchors in concrete) Masonry drill Ø16mm (for fixing of mechanical anchors in concrete) List of elements:...
- Page 10 Complete folding Inspection of the device before use Before each use of the device carry out its visual inspection • Make sure that there are no cracks or deformations on the device • Make sure that the device can rotate •...
- Page 11 Periodic inspection of the device According to EN 365 it is recommended to perform periodic inspections of the device RJ200. Periodic inspection should be carried out by a service point authorized by the manufacturer. Periodic inspection (min. once a year) should be carried out by a competent person or a service point authorised by the manufacturer.
- Page 12 IDENTITY CARD IT IS RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED. THE IDENTITY CARD SHOULD BE FILLED IN ONLY BY COMPETENT PERSON RESPONSIBLE FOR PROTECTIVE EQUIPMENT. THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE OF THE EQUIPMENT. ANY INFORMATION ABOUT THE EQUIPMENT LIKE: PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT’S WITHDRAWN FROM USE SHALL BE NOTED.
