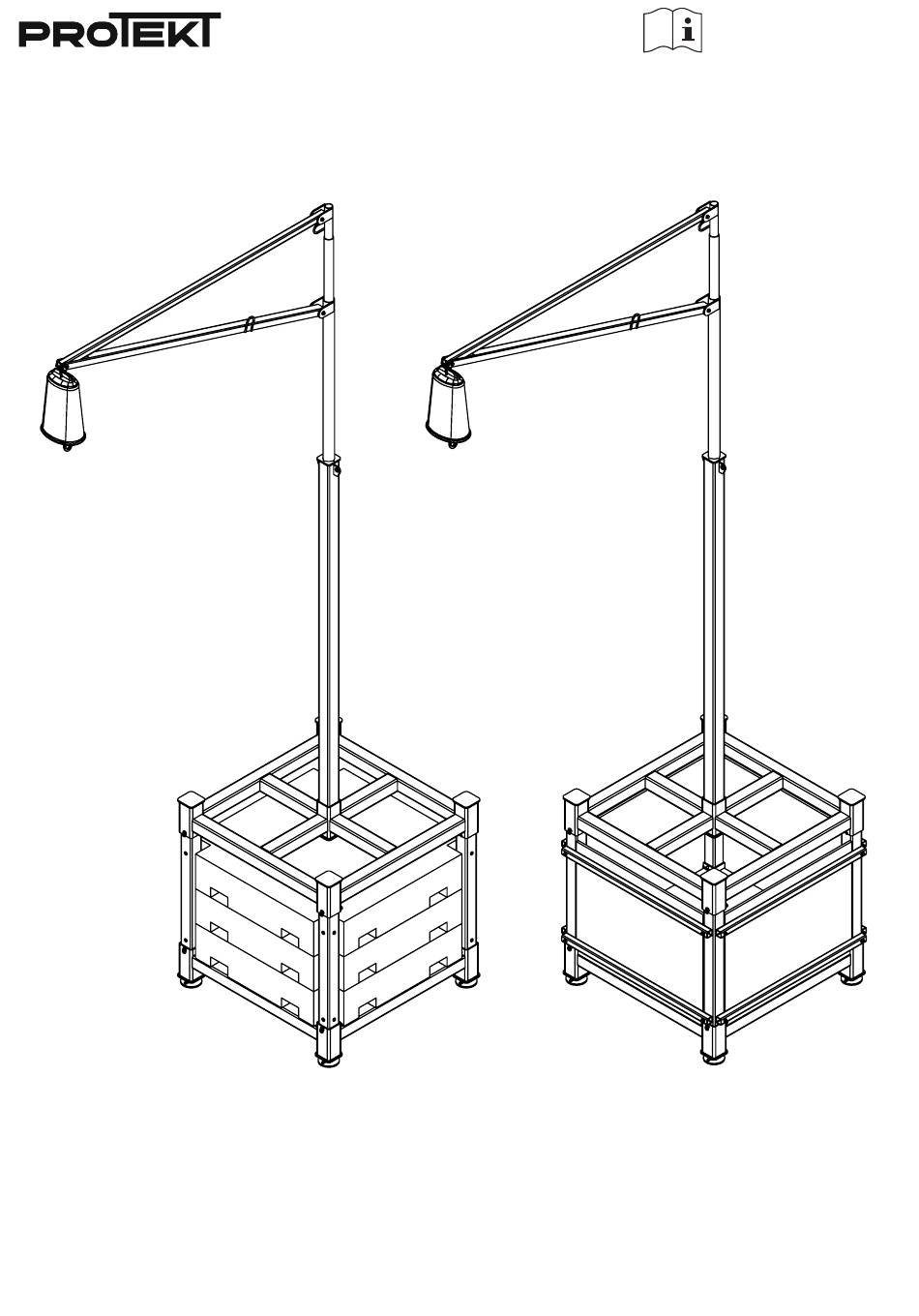

- Page 1 PORTABLE DAVIT ARM INSTRUCTION MANUAL RJ200 READ CAREFULLY BEFORE EN 795:2012 type B USE THE EQUIPMENT 1/03.11.2017...
- Page 2 Contents GENERAL..........................3 SAFETY INSTRUCTIONS..................... 4 General information......................4 Always check products and equipment before use............4 Do not combine products ....................4 Always use personal fall arrest equipment............... 5 Inspection after a fall......................5 Remember ........................5 TECHNICAL DATA........................ 6 Main parts.........................
- Page 3 General Device RJ200 has been designed to allow the loading and unloading of equipment from the top of a flatbed delivery truck/trailer in a safe manner. The system stands approximately 6,25 metres in height to the anchor point position allowing the operative to work up to 5 metres in height from ground level with a working radius of up to 3.5 metres.
- Page 4 Safety instructions General information The Portable Davit Arm is only intended for the purpose stated in this user instruction in preventing an operative from a fall incident when loading/unloading flatbed delivery vehicles. • Under no circumstances should the product be used as a makeshift crane or lifting/lowering device.
- Page 5 Inspection after a fall If a Portable Davit Arm has been used in anger e.g. a person falling. Then it should be removed from service and be inspected by a competent person. Contact manufacturer in the event of uncertainty. Remember •...
- Page 6 Works at height USAGE METHOD NO 1 USAGE METHOD NO 2 WARNING!!! RJ200 device can be load with any RJ200 device can be load with specially 1.Ceck out other usage methods described on following pages. ballast with total minimum weight of prepared unit weights of mass 1000kg 2.Read user manual before use.
- Page 7 Works at height USAGE METHOD NO 3 USAGE METHOD NO 4 RJ200 device can be used as an anchor RJ200 device can be used as an anchor point set in a concrete point set to the steel structures with usage WARNING!!! (for example: pillars, atticsi, etc.).
- Page 8 USAGE METHOD NO 6 USAGE METHOD NO 5 WARNING!!! RJ200 device can be used as an anchor RJ200 device can be used as an anchor point set to the concrete structures with point set to the steel structures with usage 1.Ceck out other usage methods...
- Page 9 DIN 931 0,090 M12 Washer galvanized steel DIN 125-A 0,010 Locking pin S235/A2 (steel) ASB500-130 0,250 (OSB) #18mm OSB side panel RJ200.09.000 12,400 #18mm OSB bottom panel (OSB) RJ200.08.000 20,200 Beam S235 (steel) RJ200.07.000 7,200 S235 (steel) RJ200.06.000 65,000...
- Page 10 Final Assembly Safety check before initial use Before and after each use inspect and make sure the product: - has not suffered any mechanical deformation, is free of cracks, corrosion or wear, - is free to rotate, - is perpendicular, Ensure that separate parts are install correct, espacially where safety signs appears.
- Page 11 Check Checking should be performed by a competent person. Checking includes: • Checks for weld damage of deformation. • Wear on retractable fall arrest block. • Nuts and bolts are secured properly. • Frame should be fully engaged in the in the cone inside the column unit. PFPE Guide One Portable Davit Arm needs to be positioned centrally to trailer at a minimum of 100 mm from the edge of the base to the edge of the trailer.
- Page 12 PFPE Guide Two Portable Davit Arms are required to work in together. Devices need to be positioned centrally to trailer at a minimum of 100 mm from the edge of the base to the edge of the trailer. As shown below: operative fall arrester rope base...
- Page 13 NAME AND SIGNATURE OF DATE OF NEXT REASON FOR SERVICING / REPAIR REPAIRS CARRIED OUT DATE COMPETENT PERSON EXAMINATION PROTEKT, 93-403 LODZ, Poland ul. Starorudzka 9, TEL.: (+48 42) 680 20 83, FAX: (+48 42) 680 20 93, e-mail: protekt@protekt.com.pl...
