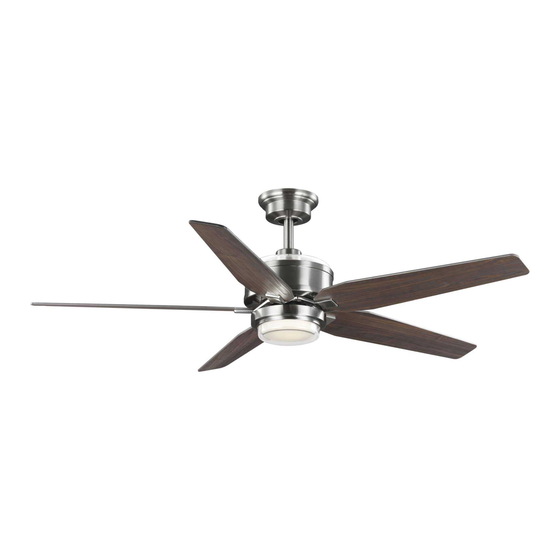

AirPro PROGRESS LIGHTING P250061 Instruction Manual

AirPro PROGRESS LIGHTING P250061 Instruction Manual

Advertisement

Quick Links

®
P250061
93133624_A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROGRESS LIGHTING P250061 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AirPro PROGRESS LIGHTING P250061

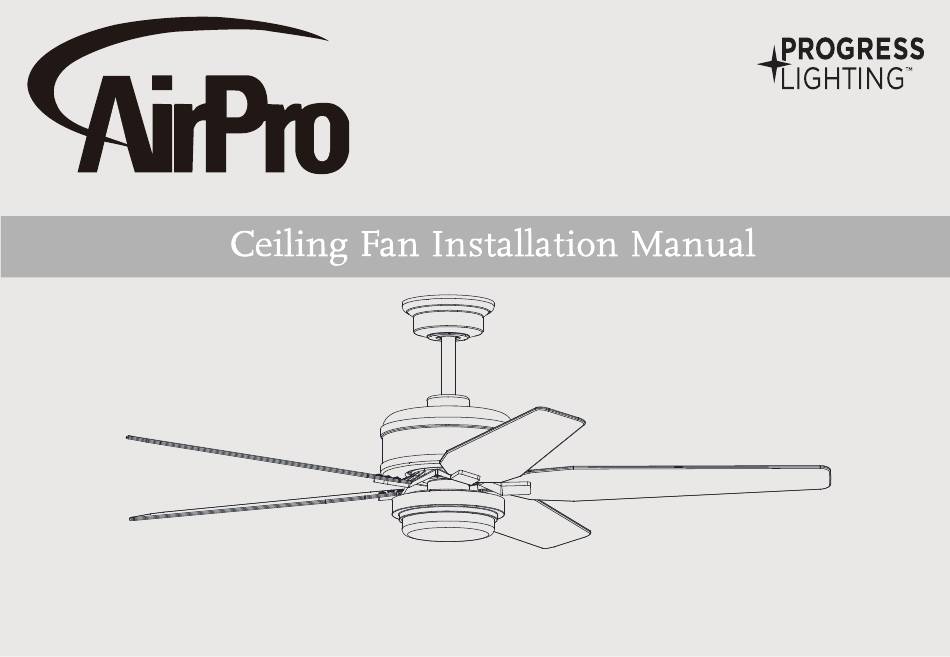

  • Page 1 ® P250061 93133624_A...
  • Page 2 Limited Lifetime Warranty Date Purchased Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to be free from defects in materials or workmanship for a period of 1 year from Store Purchased the date of purchase.
  • Page 3: Table Of Contents

    Safety Rules Unpacking Your Fan Installing Your Fan Making the Electrical Connections Remote Control Operating Your Fan Care of Your Fan Troubleshooting Specifications Table of Contents...
  • Page 4: Safety Rules

    READ AND SAVE THESE INSTRUCTIONS To reduce the risk of electric shock, insure electricity has been To avoid personal injury or damage to the fan and other items, turned off at the circuit breaker or fuse box before beginning. be cautious when working around or cleaning the fan. All wiring must be in accordance with the National Electrical Do not use water or detergents when cleaning the fan or fan Code ANSI/NFPA 70-1999 and local electrical codes.
  • Page 5: Unpacking Your Fan

    Unpack your fan and check the contents. You should have the following items: a. Blade attachment hardware (16 screws for attaching blades to blade arms) 1. Mounting Bracket 6. Blade brackets (5) b. Electrical hardware and balancing kit 2. 6” Ball/Downrod Assembly (hanger pin 7.
  • Page 6: Installing Your Fan

    Tools Required Figures 1, 2, and 3 are examples of different ways to mount the electrical box. Phillips screw driver or straight slotted screw driver, adjustable wrench, step ladder, and wire cutters. Figure 3 Mounting Options Note: You may need a longer downrod to maintain proper blade clearance when installing If there isn’t an existing electrical box, then on a steep, sloped ceiling.
  • Page 7 Hanging the Fan 8. Make sure the grommet is properly installed in the collar cover, then slide the collar cover Turn Canopy Ring to Remove REMEMBER on the downrod until it rests on the motor to turn off the power. Follow housing.
  • Page 8 Installing Fan to Connecting the Safety the Electrical Box Cable 1. Turn the wood screw (LL)(not provided) into the ceiling. WHEN USING THE STANDARD BALL/DOWNROD MOUNTING, THE TAB IN THE RING AT THE 2. Place the looped end of the safety cable (S) BOTTOM OF THE MOUNTING BRACKET MUST onto the wood screw and then tighten the REST IN THE GROOVE OF THE HANGER BALL.
  • Page 9: Making The Electrical Connections

    Wiring the Receiver to Installing the SUPPLY CIRCUIT Receiver into the the Household Wiring Mounting Bracket BLACK WHITE 1. Connect the green wire to the household ground wires using a wire connecting nut. GREEN Remote 1. Position the house supply wires to one side Receiver 2.
  • Page 10 Finishing the Fan Installation Screws Blade STANDARD CEILING MOUNTING WHEN USING THE STANDARD BALL/DOWNROD MOUNTING, THE TAB IN THE RING AT THE BOTTOM OF THE MOUNTING PLATE MUST REST IN THE GROOVE OF THE HANGER BALL. FAILURE TO PROPERLY SEAT THE TAB IN THE GROOVE COULD CAUSE DAMAGE TO WIRING.
  • Page 11 Blade Balancing Touching All blades are grouped by weight. Because Ceiling materials vary in density, the fan may wobble even though the blades are weight matched. The following procedure should correct most fan wobble. Check after each step. 1. Check that all blade screws are secure. 2.
  • Page 12 Installing the Light Kit 4. Push the light kit fitter assembly up so that the two loosened screw heads fit into Pan/Light Kit Fitter the keyhole slots. Turn the light kit fitter Assembly/ Light Shade assembly clockwise, tighten the screws. Re- install the screw that was removed in step 3 and tighten firmly.
  • Page 13: Remote Control

    Preparing the Remote Mounting the remote Control control holder NOTE: The remote control has already been NOTE: Screw wall anchors are included for extra support. The included screws are paired to the ceiling fan for your convenience. designed to screw easily into the wall. If you If you have two of the same model fans in would like a more permanent or secure hold, your home, please follow the steps below to...
  • Page 14: Operating Your Fan

    Remote Control Uplight/Downlight Control: Warm weather - (Forward) A downward air flow creates a cooling effect as shown in Figure Up Light: Press and release the button to turn Timer: 24. This allows you to set your air conditioner the up light on/off. Press and hold the button to While the fan is on press 2h - turns on a 2 hour on a higher setting without affecting your activate dimming function and release once the...
  • Page 15: Care Of Your Fan

    Troubleshooting Care of Your Fan Here are some suggestions to help you Problem Solution maintain your fan. Check main and branch circuit fuses or breakers Fan will not start 1. Because of the fan’s natural movement, Check line wire connections to the fan and switch wire connections in some connections may become loose.
  • Page 16: Specifications

    FAN POWER AIRFLOW CONSUMPTION AIRFLOW GROSS CUBE EFFICIENCY SPEED VOLTS SIZE WEIGHT WEIGHT FEET (WITHOUT LIGHTS) (HIGHER IS BETTER) WATTS CFM/WATT 2.27 2317 1020.7 17.42 19.62 54” 1.72 High 29.73 6477 217.86 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
