Operating / Programming Manual & Warranty Document

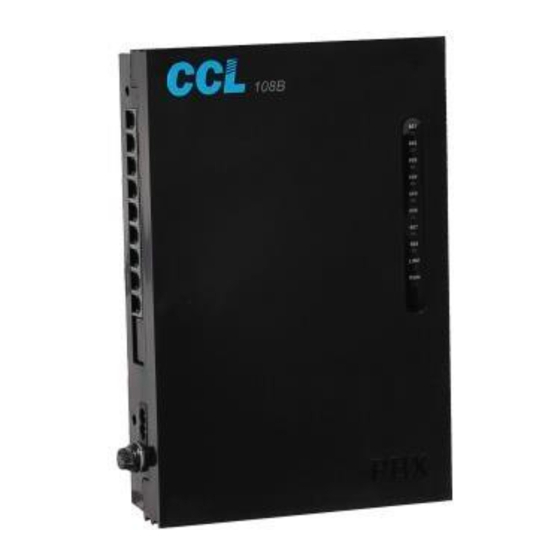

PBX Model: 108B / 108SU
We extend a warm welcome to you on becoming a part of the CCL Epabx family.
Our service support Engineers shall be working hard through our channel partners to ensure your satisfaction
with the product and after sales services.
We welcome your feedback / query at info@cclepabx.com
Contents
.
.
CLI Recieving Mode (DTMF / FSK)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 108SU and is the answer not in the manual?

Questions and answers

Related Manuals for CCL 108SU

Summary of Contents for CCL 108SU

  • Page 1: Table Of Contents

    Operating / Programming Manual & Warranty Document PBX Model: 108B / 108SU We extend a warm welcome to you on becoming a part of the CCL Epabx family. Our service support Engineers shall be working hard through our channel partners to ensure your satisfaction with the product and after sales services.

  • Page 2: Introduction

    Technical Specifications Warranty claim details NOTE- CCL Epabx reserves the right to alter equipment specifications and description contained herein and makes no commitment to update or keep current the information herein. All information herein is subject to change at any time without notice.

  • Page 3: Terminologies Used

    It is for switching the PBX ON / OFF. Note: The PBX is supplied RJ Connectors with short leads for terminating the cables to RJ Sockets. It is recommended to Crimp RJ connectors directly to the cables in order to maintain the aesthetics. Precautions The Mains AC socket from where the PBX is given 220 V AC, should be separately made by taking direct connections from the MCB Box and no other Electrical appliance should be connected on this point.

  • Page 4: Auto Attendant Settings (Optional)

    Extension Number Dial Timeout: After the welcome message is played, the user must dial an extension number within this time period. If no extension number is dialed, then the message can either be repeated or call can be transferred to an extension. Dial #*0000 + 160 TT # where TT is time duration in seconds (01-10) Auto Attendant Mode Settings...

  • Page 5: Call Pick-Up

    Call Forward When Busy / No Answer (This can also be used as Round Robin feature - Refer “Junction Line Ring Assignment”) If calls are to be diverted only when the Extension is busy or is not answering, then: Dial # 27 N XXXX Where, XXXX= Extension number where Calls are to be forwarded.

  • Page 6: Conference With 1 Junction & 1 Ext

    Conference with 1 Junction & 1 Ext An extension user can establish a conference with an extension and a Junction line. Process: During conversation with a Junction line, Hook-Flash to hold the line. Then dial  Ext No. Day / Night Mode The PBX can be configured in 2 sets of programming.

  • Page 7: Extension To Extension Call

    Extension to Extension call Extension numbers in default are from 601 to 608 and can be changed to 1 digit, 2 digits, 3 digits or 4 digits numbering as explained under the heading “Flexible Numbering”. Flash Time setting The Flash time of the PBX can be changed as described below: Dial #0000 + Dial 00 L # Here, L= 1 (for 0.8 secs) 2 (for 1.0 secs)

  • Page 8: Junction Access Control

    Junction Access Codes / Change Junction lines can be accessed by dialing 0. Junction Access Control Every Extension can be programmed to access Junction Line. The access to each Extension can be different in Day mode and Night mode. Procedure: Dial #0000 + 70 1 N X # (For Day Mode access) Dial #0000 + 71 1 N X # (For Night Mode access) = Last Digit of Extension Number...

  • Page 9: Junction Line - Enable / Disable

    Direct Ring Mode (Calls land on Operator or defined extensions in Simultaneous Ring mode or Round Robin Ring mode) Direct Ring Mode (Simultaneous / Round Robin) Simultaneous Ring In this mode, incoming Junction lines ring on one or more Extensions. Incoming ring of Junction Lines can be programmed separately for Day and Night modes as described below: …..+N Dial #0000 + 3 1 M 0 + N...
  • Page 10 During the limited warranty period, CCL Epabx. or its authorized service network will repair or replace, at CCL Epabx. option, any defective product or parts thereof with a new or factory rebuild replacement items and return the product to the consumer in working conditions.
  • Page 11 CCL Epabx. was not notified by consumer of the alleged defect or malfunction of the product during the limited warranty period. c) The product was used with or connected to equipment not fit for use with CCL Epabx. system or used in other than its intended use.
