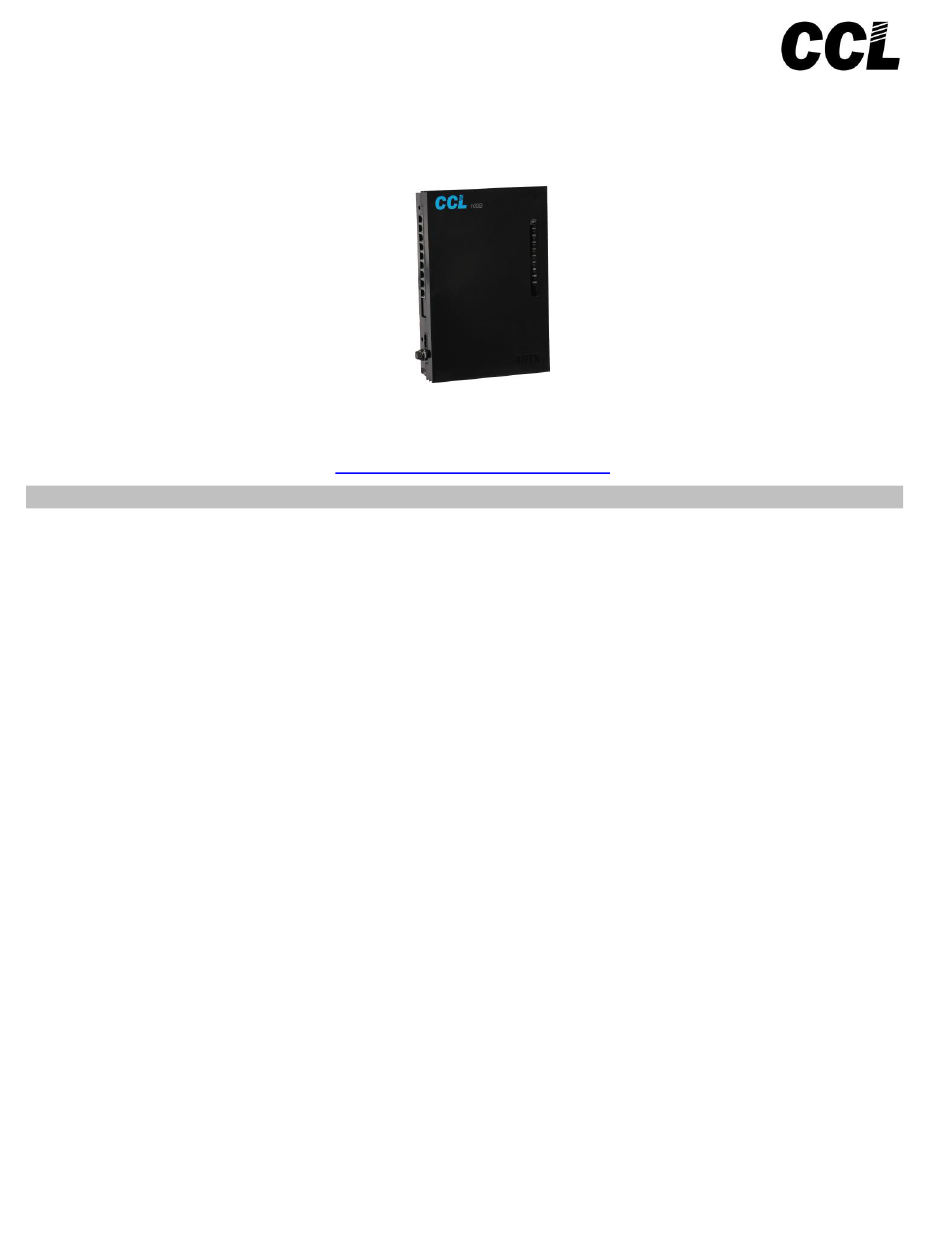

Operating / Programming Manual & Warranty Document

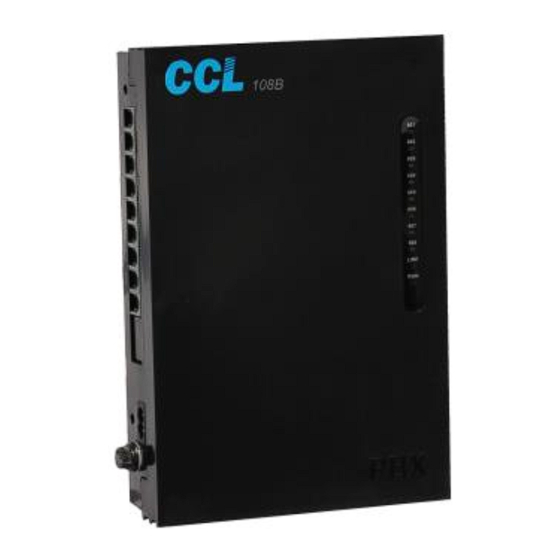

PBX Model: 108B
We extend a warm welcome to you on becoming a part of the Copper Connections family.
Our service support Engineers shall be working hard through our channel partners to ensure your satisfaction
with the product and after sales services.
We welcome your feedback / query at
CCLSERVICECCL@GMAIL.COM
Contents
.
.
CLI Recieving Mode (DTMF / FSK)
Door Lock

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 108B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CCL 108B

Summary of Contents for CCL 108B

  • Page 1: Table Of Contents

    Operating / Programming Manual & Warranty Document PBX Model: 108B We extend a warm welcome to you on becoming a part of the Copper Connections family. Our service support Engineers shall be working hard through our channel partners to ensure your satisfaction with the product and after sales services.

  • Page 2: Introduction

    Junction Line - Enable / Disable Memory Dialing Operator Extension Setting Password PBX Version Redial Resetting the PBX programming Ring Time Settings Troubleshooting Technical Specifications Warranty claim details NOTE-Copper Connections reserves the right to alter equipment specifications and description contained herein and makes no commitment to update or keep current the information herein.

  • Page 3: Terminologies Used

    Connections The PBX has the following connectors on its side panel: Connectors Description LINE 1 Terminate the 1st Junction Line here through a RJ Connector. EXT 601 Terminate the 1st Extension wires over here through a RJ Connector. EXT 602 Terminate the 2nd Extension wires over here through a RJ Connector.

  • Page 4: Auto Attendant Settings (Optional)

    Dial #*0000 + 12 M # Listen Auto Attendant Message: Dial #*0000 + 13M # Where- M = 1 for Welcome Message (20Secs) = 2 for Busy Message = 3 for No Answer Message Busy Message ON/OFF: The facility of playing Busy message can be turned ON or OFF. To turn ON Busy Message: Dial #*0000 + 124 # To turn OFF Busy Message: Dial #*0000 + 134#...

  • Page 5: Barge-In

    Barge-In Extension number 601 and 602 has the facility to barge into any Extension or Junction Line and over hear or talk in conference. To listen to a Junction line, dial # 7 1 To listen to an Extension, dial # 77 Ext Number Call Forward There are two types of Call Forwarding: Call Forward Always...

  • Page 6: Cli Transmitting Mode (Dtmf)

    To Enable, Dial #0000 + 180 1 # To Disable, Dial #0000 + 180 0 # Note- If CLI digit addition is enable then if extension is of 2 digits then 2 dummy zeros are added before extension number and if the extension number is of 3 digits then a zero is added before the extension number. Default: Disabled CLI Receiving Mode (DTMF / FSK ) The system senses CLI on Junction lines in DTMF mode or FSK mode.

  • Page 7: Emergency Call

    Where, N = 1 - 5 (Representing the Extension numbers from 601 to 605) To make the first Door Phone extension as a normal Extension, program as below: Dial #0000 + 800 # Door Phone ring assignment Dial #0000 + 82 N # - To assign extensions to ring when Door Phone calls. Where, N= 1 –...

  • Page 8: Junction Access During Power Failure

    To program an extension in this mode, Dial #0000 + 883 N XXXX# Where, N= last digit of Original Extension numbers that is to be programmed for this feature. XXXX = Extension number to which call will land in Hotline feature.. Dial #0000 + 884 N # - To convert N Extension in normal mode.

  • Page 9: Junction Dialing Delay Time

    To shift back to the default setting, Dial #0000 + 830 # Junction Dialing Delay Time This is the time after the last digit dialed by an extension on Junction Line. It is 7 secs in default. The PBX assumes call maturity from after the lapse of this time. The FLASH function to hold an Incoming Junction call starts working after the lapse of this time.
  • Page 10 To change the Operator Extension, Dial #0000 + 15N# Where, NN = Last digit of Extension which is to be made the Operator. Default: Operator Extension is 602 To call operator Dial 9 Password There is only one Password for the whole PBX programming and this Password can be changed by the user. The default Password is 0000.
  • Page 11 13. The decision of Copper Connections Pvt. Ltd., on defects, damages etc shall be final and binding on the parties and no dispute regarding this, could be agitated before any civil court. Part no: 108B - 6 _______________________________________ ISO 9001:2015 Certified company Copper Connections Pvt.
