Operating / Programming Manual & Warranty Document

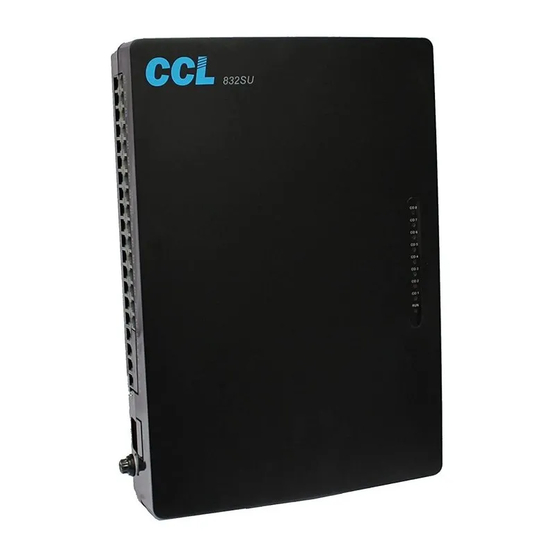

Model: 832X / 832SU
We extend a warm welcome to you on becoming a part of the Copper Connections family.
Our service support Engineers shall be working hard through our channel partners to ensure your satisfaction
with the product and after sales services.
We welcome your feedback / query at CCLSERVICECCL@GMAIL.COM
Contents
.
.
Introduction
Installation
Terminologies Used
Programming the PBX
ALARM
Allowed Table
Auto Call Back
Auto Call Disconnection
Auto Attendant Operations
Auto Attendant Mode settings
Auto Attendant Message Modes
Auto Attendant Night Message
Auto Attendant Voice message of 20 Secs
Auto Day/Night Mode
Barge-In
Call Forward
Call Pick-Up
Call Parking
Checking Extension Number + PBX Version
CLI (Calling Line Identification)
CLI Transferable / Internal CLI
CLI – Digits addition
CLI Recieving Mode (DTMF / FSK / Auto)
CLI Transmitting Mode (DTMF / FSK)
Conference- Internal
Conference with 1 Junction & 1 Ext
Conference with 2 Junctions
DATE and TIME Setting
Day / Night Mode
Denied Table – A
Denied Table – B
Do Not Disturb (DND)
Door Phone
Door Phone Call Forward to Mobile
Door Lock
1
Advertisement
Table of Contents
Related Manuals for CCL 832X
Summary of Contents for CCL 832X
- Page 1 Operating / Programming Manual & Warranty Document Model: 832X / 832SU We extend a warm welcome to you on becoming a part of the Copper Connections family. Our service support Engineers shall be working hard through our channel partners to ensure your satisfaction with the product and after sales services.
- Page 2 All Junction lines of the PBX are Disabled in default. To enable them refer heading “Junction Line - Enable / “ Disable Model Junction Lines Extensions Door Phones Door Locks 832X Numbered as 1 Numbered as 601 to 632 to 8 having 602 is the Operator. 1 Door Phone Locks access code as...
- Page 3 #11, #12, #13, 601, 602, 603 & 604 Extension port. #14, #15, #16, #17, #18 Installation Cabling - All cables of the EPABX should be at least 6” away from the electrical cables. - They should be at least 12” away from the area of high frequencies like tube light chokes, Electric Motors, etc. If it is not possible to avoid, then use shielded cables and earth the shield.
- Page 4 Programming the PBX To program most of the feature mentioned in this manual, programming Password is to be entered from any of the first 4 extensions (601, 602, 603, 604) through the following command: #0000 (Here, 0000 is the default Password) In case of any mistake while programming, dial ...
- Page 5 To set Junction in Auto Attendant Mode: Dial #*0000 10J# Where J= Junction number (1-8) To set Junction in Direct Ring mode: Dial #*0000 11J# Where J= Junction number (1-8) Set Auto Attendant Msg Type- #* 0000 + 25 J N # Where J= junction number (1-8) N=0, for Normal auto attendant (Internal) (Default) N=1, for Multilayer auto attendant msg 1 (SD_CARD-1)
- Page 6 Note : PBX to be in night mode for this message. Auto Attendant Voice message There is two source of auto attendant playing mode; both can be used simultaneously for playing msg at 2 junctions- 1- Internal 2- SD-Card (Optional) (Also Refer to SD Card programming for enabling and mode setting ) NOTE: To use SD-Card as auto attendant, refer to SD Card programming for enabling and mode setting.
-
Page 7: Auto Day/Night Mode
For Multilayer Auto attendant- Format SD-Card with FAT16/FAT32 format and make a folder named- 01 Put these files with File name in folder 01- • 004-Multi layer AA msg1.mp3 (60secs) • 005-Multi layer AA msg2.mp3 (60secs) • 006-AA Level2 msg1.mp3 (23secs) •... -
Page 8: Call Pickup
Call Forward When Busy / No Answer (This can also be used as Round Robin feature - Refer “Junction Line Ring Assignment”) If calls are to be diverted only when the Extension is busy or is not answering, then: Dial # 82 XXX from its own extension. XXX= Extension where calls are to be Diverted. To clear this Call Forward: Dial #82# This feature can also be programmed from any of the Programming Extensions as explained below: Dial # 27 NN XXXX... -
Page 9: Cli - Digits Addition
Checking Extension Number + PBX Version To know the extension number of an extension or PBX date or PBX time, do the following: From SLT extension having CLI Telephone Set Dial # 62 and keep the handset down. The extension will ring and its number shall be displayed on the CLI phone. The display may show a 5 digit number. - Page 10 Procedure: #*0000 890 NN X # NN= the last 2 digits of the original Extension X= 0 - To Disallow 1 - To Allow Default: Extensions are disallowed Conference with 1 Junction & 1 Ext An extension user can establish a conference with an extension and a Junction line. Process: During conversation with a Junction line, Hook-Flash from SLT or HOLD Key from KTS to hold the line.
- Page 11 To cancel DND, simply lift Handset. For KTS phone DND can be activated/deactivated by pressing FWD/DND button. When FWD/DND key is pressed 1 time DND will be activated and LED of DND button is red, when DND is activated and FWD/DND button is pressed then DND will deactivated and LED of DND button is OFF.
-
Page 12: Extension To Extension Call
#0000 + 889 + X + # Where X = 0 to Disable Ethernet Card 1 to Enable Ethernet Card Set IP Address of Ethernet Card : IP address of ethernet card is to be set according to the Network IP Address Series. This IP address should be unique. - Page 13 Dial #0000 + 9000 L K # Where, L = Length of new numbers – 3 digits or 4 digits K = First digit of the new numbering. If K=2 then the numbering will become 201 (or 2001) Onwards. Then all those Numbers can be changed through the following programming. Default: 601,602, to 632 GSM Card Setting When GSM Card is used.
- Page 14 Where, NN= last 2 digits of Original Extension numbers that is to be programmed for this feature. XXXX = Extension number to which call will land in Hotline feature.. Dial #0000 + 883 # - To convert all Extensions in “Hot Line to Extension” mode. This also sets hotline landing extension to Operator.
-
Page 15: Other Options
3 - The Extension can dial all numbers except for STD numbers. 4 - The Extension can dial all numbers except for the numbers starting with digits defined in “Denied Table-A” 5 - The Extension can dial all numbers except for the numbers starting with digits defined in “Denied Table-B”... - Page 16 Junction Line Ring Assignment Junction lines incoming ring can be set in the following 2 modes: Auto Attendant Mode (PBX gives Welcome message. Refer “Auto Attendant Mode Setting” for this.) Direct Ring Mode (Calls land on Operator or defined extensions in Simultaneous Ring mode or Round Robin Ring mode) Direct Ring Mode (Simultaneous / Round Robin) To set Junctions in Direct Ring mode, following are the programs:...
- Page 17 Where, TT= 01 to 99. In default TT = 09 x 10 = 90 Secs (80 secs talk time and 10 secs Alert Time) To cancel the feature, dial from your own Extension #84# Making 2 Junction lines talk to each other while Ext remains out of the conversation. –...
- Page 18 Memory Dialing The PBX has memory for 60 telephone number that can be dialed from an extension by dialing 2digit codes. However if the ext is given only local dialing facility, then it cannot dial STD number of the memory. Storing Telephone number in memory- Dial #*0000 45 CC J NN# Where CC is Memory location (01-60)
- Page 19 Internal Call Ringing Time This is the time for which an extension keeps ringing when an Extension call another Extension. Program: Dial #0000 + 494 TT # Where, TT= 01-99 secs (Default Value = 99 secs) Auto Attendant Voice Message mode ringing time This is the time for which an extension rings when the out side caller dials an Extension number in Auto Attendant Voice Message mode.
- Page 20 If the product is purchased online through Amazon or other web portals, then in case of repair, the system is to be sent to the mentioned company address in Delhi. One-way delivery charge will be borne by company, and one-way will have to be borne by the user. Part no: 832X Manual – 27 ISO 9001:2015 Certified company Copper Connections Ltd.
