KNOW YOUR CYBORG®
3
4
5
9
8
10
6
11
12
Cyborg 6.indd 7-8
2
1
7
Your Cyborg marker contains some of the most innovative new features, wrapped around a classic Cyborg drive.
Please take the time to learn the parts of your Cyborg, it will help you when reading this manual.

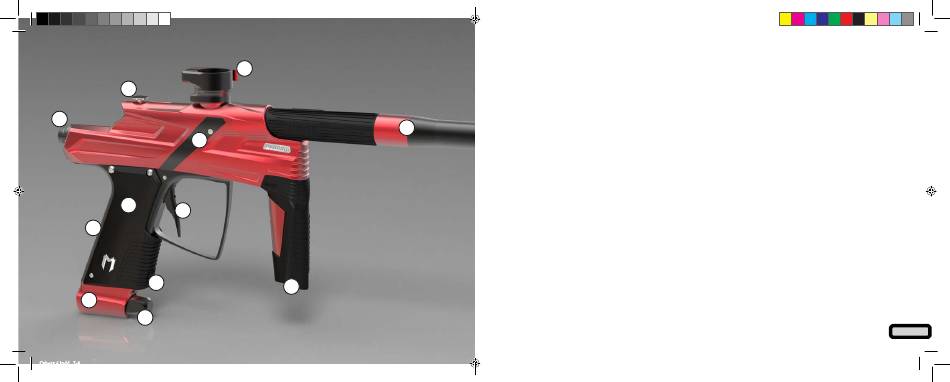

Numbered basic parts as shown in the figure on the left:
1. Shift 2 barrel
2. Feed clamp lever (used to affix your loader)
3. Bolt and pullpin (pull up and back to remove)
4. Drivetrain (note: bolt must be removed and marker must be degassed beofre this can be removed)
5. Eye covers and screws
6. Velocity (High pressure) regulator adjustment (anti clockwise to increase velocity)
7. Low pressure regulator adjustment screw
8. Trigger with screw adjustments
9. OLED display used to view gun status/settings
10. Membrane pad with power and programming buttons
11. Venting ASA, screw your air system in here
12. Venting ASA on/off knob (used to turn the air on or off)
Please note, the features and included accessories are subject to change, and may vary from those show in this manual.
