Summary of Contents for Creda D010E

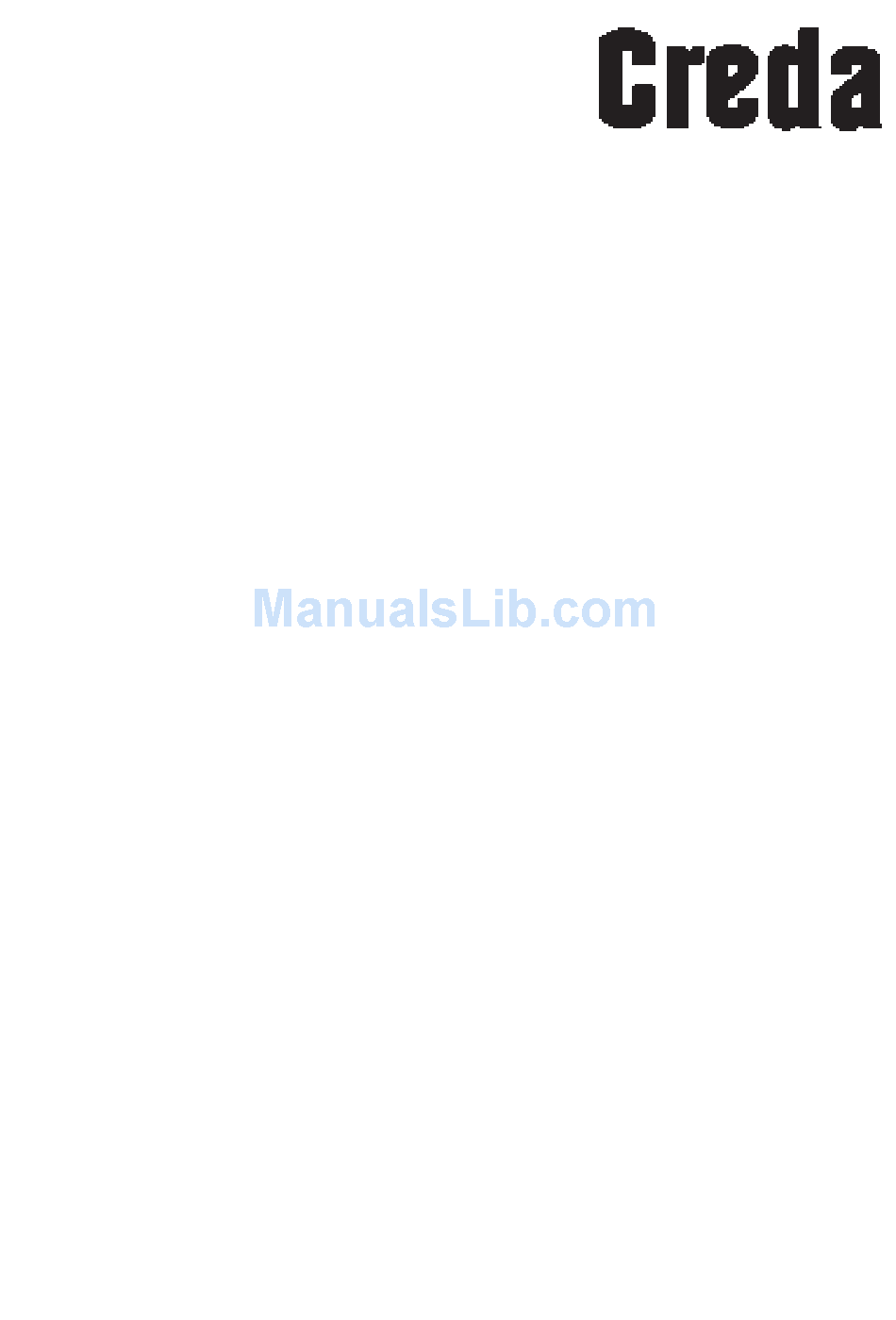

  • Page 1 D010E Installation & User Instructions You must read these instructions prior to using the appliance and retain them for future reference.
  • Page 2 For more information on our exciting product range ring Creda Answer Centre 08701 54 64 74 Visit us on the NET at http://www.creda.co.uk interactive cookbook product selector. Our site invites you to make use of our Feel browse our product range...
  • Page 3: Table Of Contents

    Controls Clock / Minute Minder Operation Grill Pan and Handle Grilling Guide To Grilling Successfully Using the Oven for Fan Cooking Using the Oven for Other Functions Temperature Conversion Chart Oven Temperature Charts Cooking Results Not Satisfactory Care and Cleaning...
  • Page 4: Introduction

    It is suggested that any pets be removed from the room until the smell has ceased. This odour is due to temporary finish on oven liners and elements and also any moisture absorbed by the insulation.
  • Page 5: Safety Information

    Always make sure all controls are turned off when you have finished cooking and when not in use. Always stand back when opening an oven door to allow any build up of steam or heat to disperse. Always use dry, good quality oven gloves when removing items from the oven/grill.
  • Page 6 Never allow anyone to sit or stand on any part of the appliance. Never store items above the appliance that children may attempt to reach. Never remove the oven shelves whilst the oven is hot. Never heat up unopened food containers as pressure can build up causing the container to burst.
  • Page 7: Features

    Features Oven Light Meat/Grill pan Oven Fan Rating plate Oven Door Oven & Grill Oven & Grill Temperature Selector control Oven Indicator Light Clock/Minute Minder Grill Element Credaclean Liners Oven Shelves Door Switch Inner Door Glass...
  • Page 8: Control Panel

    Slow Cooking food warm and warming plates for a short period. When Oven / Grill selector (A) is set to fan oven there is a safety device which Element and disconnects the heating element and oven fan when the door is opened.
  • Page 9: Clock/Minute Minder Operation

    8 seconds, followed by a single press of the ‘+’ button. will light up when you select a Minute Minder Period and will Make sure all oven controls are turned off. Check the electricity supply to the cooker is turned on.
  • Page 10: Setting The Minute Minder

    Clock/Minute Minder Operation TIMER FUNCTION BUTTONS Minute Minder Here you can set a time period of up to 23 hours 59 minutes, that will count down. When it reaches zero, the timer will emit an audible tone. For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.
  • Page 11: Grill Pan And Handle

    If a detachable handle is required, do not replace screw & washers. Note: If a fixed handle is required, the grill pan is unable to be stored in the oven GRILL PAN AND FOOD GRID DOOR POSITION FOR GRILLING...
  • Page 12: Grilling

    Oven / Grill Selector Note: DO NOT allow young children near to the appliance when the grill is in use as the Step 1 Ensure the oven shelf is in the correct position (see Guide to Grilling Successfully). Ensure door is in the grilling position (see grilling page) Step 2 Turn knob (A) clockwise to GRILL function Step 3 Turn knob (B) anti-clockwise to select the Grill Setting (1–6).
  • Page 13: Guide To Grilling Successfully

    Fish Fingers Pre-cooked potato products Pizzas Browning of food Preheat Shelf Position from Base 5 mins. of Oven 6 or 5 6 or 5 6 or 5 3 or 4 Approx. Cooking Time Time depending on type of food.
  • Page 14: Using The Oven For Fan Cooking

    An additional oven shelf can be purchased, from our Parts Department or your nearest retailer, if a third one is required for batch baking. Never use more than three shelves in the oven at one time as air circulation will be restricted.
  • Page 15 Oven / Grill Selector Step 1 Ensure that the oven shelf is in the correct position. Place food centrally on the shelf ensuring the oven door is fully closed. Turn Oven / Grill selector, knob A anti-clockwise to FAN OVEN function.
  • Page 16: Using The Oven For Other Functions

    Extra care should be taken when warming bone china, as it may be damaged in a hot oven. DO NOT place food or plates directly on the oven floor as this could damage both the oven lining and the plates which are being warmed.
  • Page 17: Temperature Conversion Chart

    Temperature Conversion Chart Mark Main Conventional Oven – – Main Oven...
  • Page 18: Oven Temperature Chart - Meat

    Casserole / Stews IF USING ALUMINIUM FOIL 1. Never allow foil to touch sides of oven. 2. Never cover interior with foil. 3. Never cover shelves with foil. The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer into the thickest part of a joint of meat, or the thickest part of poultry thighs, during the cooking period.
  • Page 19: Oven Temperature Charts - Baking

    Oven Temperature Charts - Baking Baking Note: Up to three shelves may be used in this oven. The position of these is not important providing they are evenly spaced. Pre- Temperature Food heat Scones Small Cakes Victoria Sandwich Sponge Sandwich...
  • Page 20: Cooking Results Not Satisfactory

    Ensure that the grill pan is not lined with foil. Ensure that the grill setting is not too high. Ensure that the oven shelves are level. The following may cause cakes to sink: 1. Pre-heating of fan ovens – not always necessary.
  • Page 21: Care And Cleaning

    DO NOT use biological washing powder, harsh abrasives or chemical oven cleaners of any kind as this could damage the “Credaclean” oven liners.
  • Page 22: Cleaning The Oven

    BASE (a) Base of Main Oven. Wipe out the oven with a damp soapy cloth. For more stubborn stains on the base of the oven use a well soaped fine steel wool soap pad. (b) Grill/Meat Pan & Oven Shelves.
  • Page 23: Replacement Of The Oven Lamp

    Warning: Before removing lamp lens, please ensure that the electricity supply to the appliance is switched off and the appliance is fully cold. Open the oven door and remove the oven shelves. Using a thick cloth, grip the lamp lens, unscrew anti- clockwise and remove the lens.
  • Page 24: Cleaning The Doors

    Refit the door inner glass as follows. NOTE: The inner door glass has a special reflective coating on one side. Replace the door inner glass so that the statement: “IMPORTANT THIS FACE TOWARDS THE OVEN” can be read from the inner side of the door.
  • Page 25: Installation

    Installation Instructions IMPORTANT This equipment is designed specifically for domestic purposes and Creda Limited cannot accept responsibility if used in any other type of installation. All Creda oven units are suitable for installation under Creda hob units. This appliance must not be installed over any appliance that generates heat.
  • Page 26: Electrical Installation

    A 20 amp Double Pole control switch with a minimum contact clearance of 3mm must be fitted on or recessed in the wall adjacent to the oven housing cabinetry and should be accessible after installation. If the oven is to be wired into a connector unit this may be positioned behind the oven providing:–...
  • Page 27: Final Installation

    Where a hob is fitted adjacent to or above an oven a 30 amp or 45 amp double pole switch with a minimum contact clearance of 3mm should be used to feed both units via separate suitably rated cables.
  • Page 28: Installation Instructions

    51 x 457mm minimum area 50mm Fig. 1 Oven 50mm Tall Cabinet When fitting a hob above an oven always use these installation instructions in conjunction with the hob instructions. Use 2.5mm High Temp Cable. Refer to Electrical Installation. Fig. 3...
  • Page 29 Control Switch 575mm if cooker trim is to Cable if Hotplate overlap fitted top edge of shelf Conduit Box Cable if hob fitted *excluding pipes and other adjacent to oven projections Cable to Oven Refer to Electrical Installation Fig. 5...
  • Page 30: Something Wrong

    (c) Grilling with inadequate ventilation in the cabinet - see installation instructions. Check that the selector switch (A) is set to ‘FAN OVEN’ and that the temperature control (B) is set to the correct temperature. Check that you have selected :- ‘GRILL’ function on the Oven/Grill Select knob (A) and a Grill setting on the Temperature Control Knob (B) (see grilling page).
  • Page 32: Repair Service

    Genuine Parts & Accessories For further product information All Creda Services are offered as an extra benefit and do not affect your statutory rights. General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB PRINTED BY SIMLEX . FOUR ASHES, WOLVERHAMPTON.
