EVM User's Guide: TPS281C100EVM
TPS281C100 Evaluation Module
Description

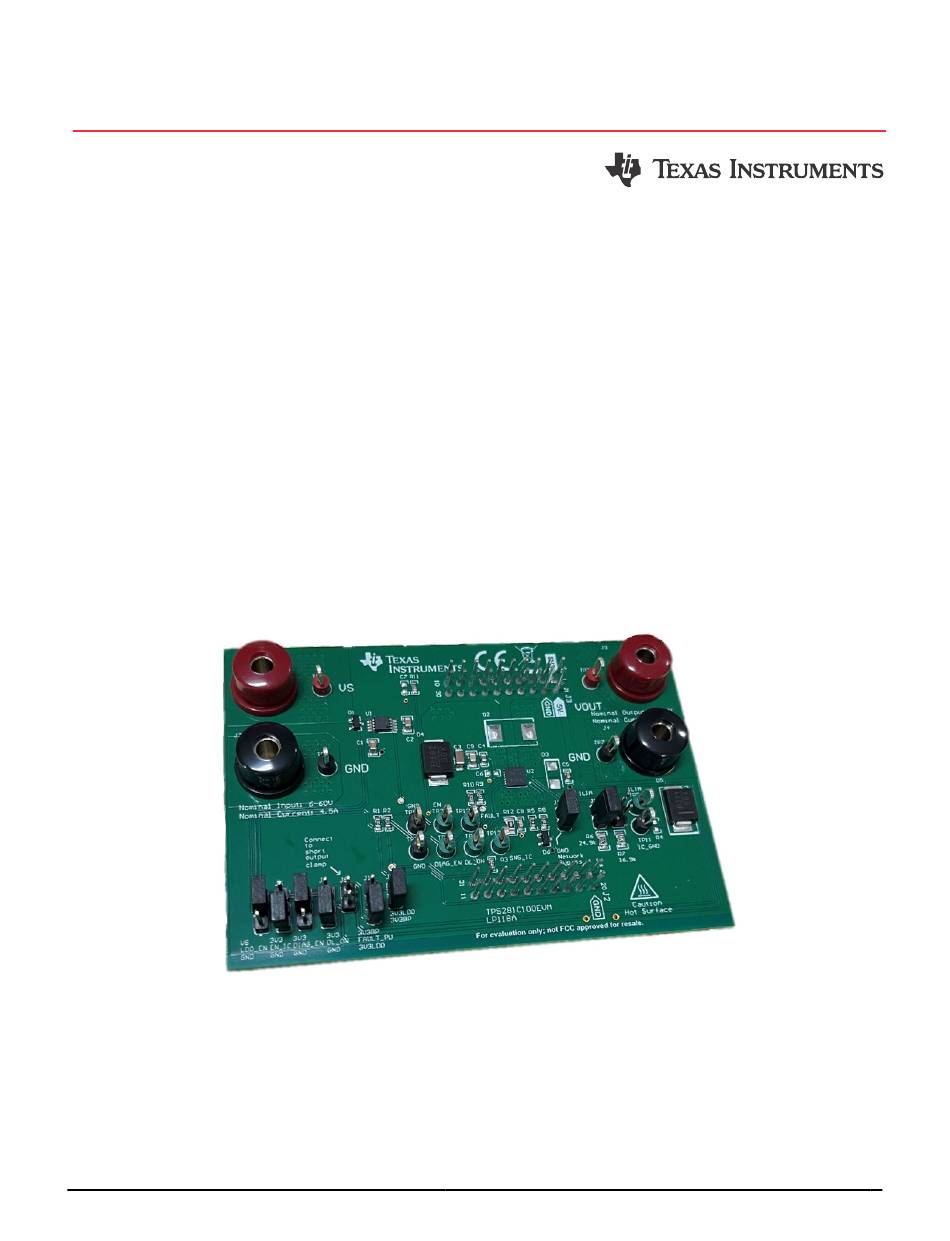

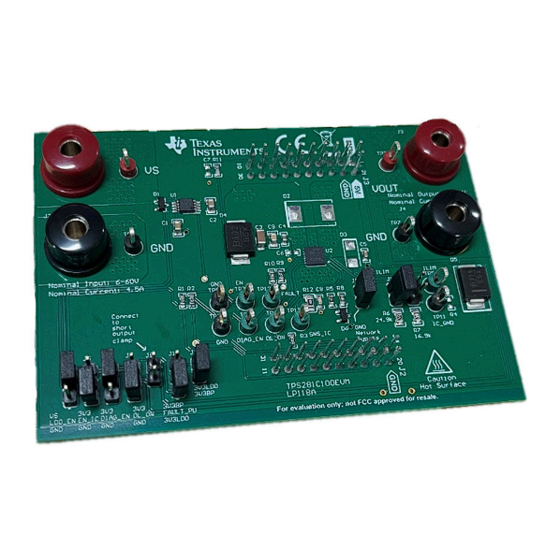

The TPS281C100EVM is a hardware evaluation
module (EVM) used to enable hardware engineers
to evaluate the full performance and functionality of
the TPS281C100 industrial high side switch. The
TPS281C100EVM contains everything needed to test
and assess the TPS281C100 before designing into
part of a greater application's power system. The
evaluation module is designed to either be used as a
standalone board with an attached voltage supply and
output load or in conjunction with an underlying Texas
Instruments microcontroller by using the standardized
BoosterPack
™
plug-in module headers. A wide range
of application features such as digital output module,
safe torque off (STO), and holding brake are enabled
and visible through use of this evaluation module.
This EVM is populated with the QFN version of
TPS281C100.
SLVUCR4 – DECEMBER 2023
Submit Document Feedback
Features
•
Configurable current limit with fixed resistors
•
Configurable current sense with fixed resistor
•
BoosterPack plug-in module headers allowing
power switch to be controlled by external
microcontroller
•
On-board 3.3-V LDO allowing for control signals to
be manipulated by a set of jumpers
•
Good board layout and copper area for thermal
performance
•
Jumper at the output to support different clamp
configurations for inductive discharge
•
Optional footprint to populate TVS diode for VDS
clamp for faster inductive discharge
Copyright © 2023 Texas Instruments Incorporated
Description
TPS281C100 Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS281C100
Summary of Contents for Texas Instruments TPS281C100
- Page 1 Configurable current limit with fixed resistors to evaluate the full performance and functionality of • Configurable current sense with fixed resistor the TPS281C100 industrial high side switch. The • BoosterPack plug-in module headers allowing TPS281C100EVM contains everything needed to test...
-
Page 2: Kit Contents
TPS281C100 industrial high side switch. This evaluation board provides a seamless way to connect a set of power supplies to the inputs of the TPS281C100, connect loads to the output channels, and switch on and off the device using the control pins of the chip itself. An on-board 3.3-V LDO is included on the EVM to simplify controlling signals to the TPS281C100 and easily assert and deassert logic signals by the use of a set of external hardware jumpers. -
Page 3: Connection Descriptions
Jumpers J6 through J8 are used to manually configure the control signals going into the TPS281C100. When using a microcontroller to control these signals, these jumpers must be unpopulated to allow for the microcontroller to drive them high or low. -
Page 4: Best Practices
TPS281C100EVM as well as the associated values. Please refer to the TPS281C100 data sheet for detailed information on each pin's functionality. Please note that a white mark on the jumper silkscreen is reflecting the position 1 of the jumper. - Page 5 Hardware Design Files 3 Hardware Design Files 3.1 Schematic Figure 3-1. TPS281C100EVM Schematic Drawing SLVUCR4 – DECEMBER 2023 TPS281C100 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 6: Pcb Layouts
Hardware Design Files www.ti.com 3.2 PCB Layouts Figure 3-2. 3D Representation Figure 3-3. Top Layer TPS281C100 Evaluation Module SLVUCR4 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 7 Hardware Design Files Figure 3-4. Ground Layer Figure 3-5. Power Layer SLVUCR4 – DECEMBER 2023 TPS281C100 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 8 Hardware Design Files www.ti.com Figure 3-6. Bottom Layer TPS281C100 Evaluation Module SLVUCR4 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 9 Hardware Design Files 3.3 Bill of Materials The table below lists the TPS281C100 Bill of Materials. Table 3-1. TPS281C100 Bill of Materials Designator Description Part Number Manufacturer CAP, CERM, 1 uF, 100 V, +/- 10%, X7S, AEC-Q200 Grade 1, 0805 CGA4J3X7S2A105K125AB CAP, CERM, 2.2 uF, 50 V, +/- 10%, X7R, AEC-Q200 Grade 1, 0805...
- Page 10 Hardware Design Files www.ti.com Table 3-1. TPS281C100 Bill of Materials (continued) Designator Description Part Number Manufacturer Single Output LDO, 100 mA, Fixed 3.3 V Output, 3 to 60 V Input, with Enable and Power Good, 8-pin MSOP (DGN), -40 to 125 degC,...
- Page 11 Additional Information 4 Additional Information Trademarks BoosterPack ™ and LaunchPad ™ are trademarks of Texas Instruments. All trademarks are the property of their respective owners. SLVUCR4 – DECEMBER 2023 TPS281C100 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
