Allegro Dot S

INSTALLATION GUIDE

V2.2

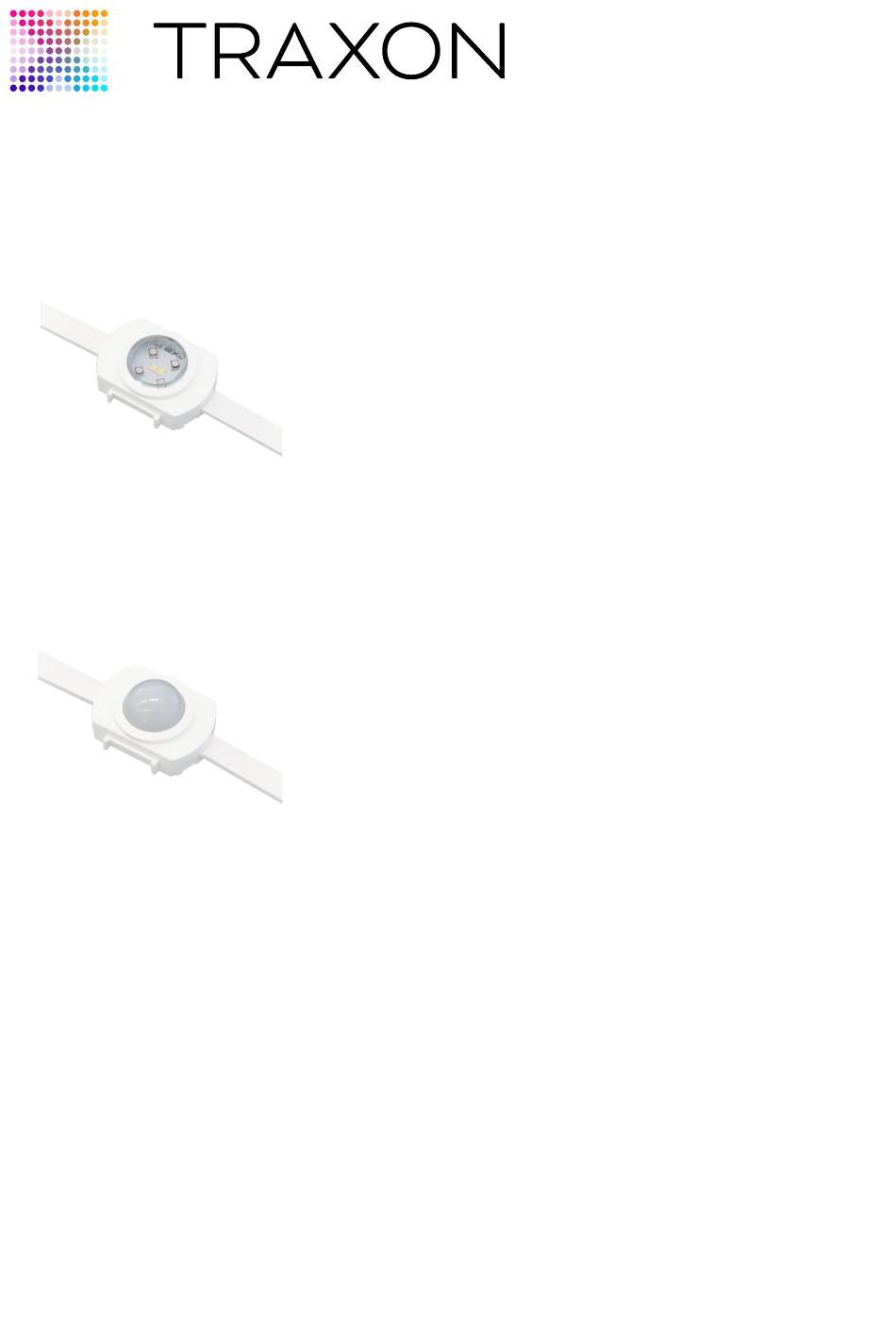

Cover:

Allegro Dot S Direct View

Allegro Dot S Diffused View

Table of Contents

Need help?

Do you have a question about the Allegro Dot S Direct View and is the answer not in the manual?

Questions and answers

Summary of Contents for Traxon Allegro Dot S Direct View

Page 1 Allegro Dot S INSTALLATION GUIDE V2.2 Cover: Allegro Dot S Direct View Allegro Dot S Diffused View...
Page 2: Table Of Contents
CARE AND MAINTENANCE TECHNICAL SPECIFICATION TROUBLESHOOTING WARRANTY STATEMENT For your own safety and that of the product, please read this installation guide carefully before beginning setup and installation. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 2 of 23...
Page 3: Safety And Operation
12. Please study this Installation Guide thoroughly and check the latest Technical Specification Sheets available from the Traxon website www.traxon-ecue.com before setup. 13. Any non-compliance of the Installation Guide will void the Traxon warranty. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED.
Page 4: Introduction
Outdoor Applications (Allegro Dot S IP66 & IP67; Pixel Distributor IP66; LED Engine IP67) • Suitable for irregular surfaces, planes, and configurations • Optional Diffuser Dome available www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 4 of 23...
Page 5 Dimensions FIG.1: Allegro Dot S Direct View WITH MOUNTING BRACKET WITHOUT MOUNTING BRACKET 42.3mm/1.7” 42.3mm/1.7” With Mounting Bracket Without Mounting Bracket FIG.2: Allegro Dot S Diffused View WITHOUT MOUNTING BRACKET WITH MOUNTING BRACKET 42.3mm/1.7” 42.3mm/1.7” With Mounting Bracket Without Mounting Bracket www.traxon-ecue.com...
Page 6 FIG.3: Allegro Dot S String 51mm/2” 160mm/6.3” to ﬁrst dot 240mm/9.4” 25mm/0.98” 100mm/3.9” 97mm/3.8” www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 6 of 23...
Page 7 M4 x 4 Smart Junction FIG.5: Allegro Dot S Smart Junction 33mm/1.3” 51mm/2” 160mm/6.3” to ﬁrst dot 25mm/0.98” 97mm/3.8” 2 x 4.2 x 8 slots 240mm/9.4” www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 7 of 23...
Page 8 Packing Contents FIG.6: Allegro Dot S Packing Contents FIG.7: Allegro Dot S Distributor Packing Contents Allegro Dot S Pixel Distributor 4 x Screws PSU Mounting www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 8 of 23...
Page 9: Installation
Ensure all the Connection Cables, Allegro Dot S with LED Engines and Pixel Distributors are initially stored in a dry area to guarantee the complete sealing of the system from water before installation. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 9 of 23...
Page 10 FIG.9: Correct way of handling Allegro Dot S String Allow slack on cable to reduce stress Allow slack on cable to reduce stress www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 10 of 23...
Page 11 Minimum Clearance Minimum clearance from dot 20mm/0.79” Non-Bendable/ Non-Twistable Length NOTE: Water ingress incurred due to excess cable bending/twisting will not be under warranty by Traxon Technologies. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 11 of 23...
Page 12 The packing contents included in End Cap Allegro Dot S End Cap (AM354990055, AL DOT S FIELD CUT END CAP) 2x End Cover Silicone Sleeve 2x Screws (M3*6.0mm) www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 12 of 23...
Page 13 Fix the flat cable waterproof end Place on ﬂat surface for the cure time recommended by 7091 cover with screws (M3*6.0mm), and silicone’s instruction. electric screwdriver torque required 0.5-0.6N.m. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 13 of 23...
Page 14 Perform functional check on all Allegro Dot S and inspect cables for any damage. Check for any abnormalities with the signal. Report any functional defect found to your nearest Traxon Technologies office. DO NOT attempt to install Allegro Dot S with functional defects on-site.
Page 15 ≥150mm/5.91” clearance ≥150mm/5.91” clearance Mount the Pixel Distributor with 4 × M5 Anchor Bolts (not included). Recommended orientation is with connectors facing DOWN (see above diagram). www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 15 of 23...
Page 16 (see below diagram). Ensure no damage is generated on the cable. FIG.16: Securing the cable Observe clearance Cable tie Mounting surface www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 16 of 23...
Page 17 For the interconnection among Allegro Dot by the Quick Lock Connectors, please refer to the following picture: FIG.18: Requirement for Mating and Un-mating of Quick Lock Connectors “click” www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 17 of 23...
Page 18: System Configuration
SYSTEM CONFIGURATION FIG.19: System Diagram – e:net connection www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 09/23 V2.2 18 of 23...
Page 20: Care And Maintenance
CARE AND MAINTENANCE Traxon™ products are of superior design and quality and should be treated with care. The recommendations below will help fulfill any warranty obligations and gain good use and longevity from the products. • Do not attempt or use the product(s) until you read and understand the installation instructions.
Page 21: Technical Specification
Whereas binning is a sorting function, it is not a correction process. Inherent variability in the manufacturing process always results in different binning distributions according to different production lots. Traxon uses automatically binned LEDs on its products, thereby minimizing output variations within the model range.
Page 22: Troubleshooting
Traxon Technologies office for assistance. WARRANTY STATEMENT Traxon Technologies warrants its Products against material or workmanship defects for a period of five (5) years from date of purchase, provided that the purchased items are used under the conditions stated in this user manual.
