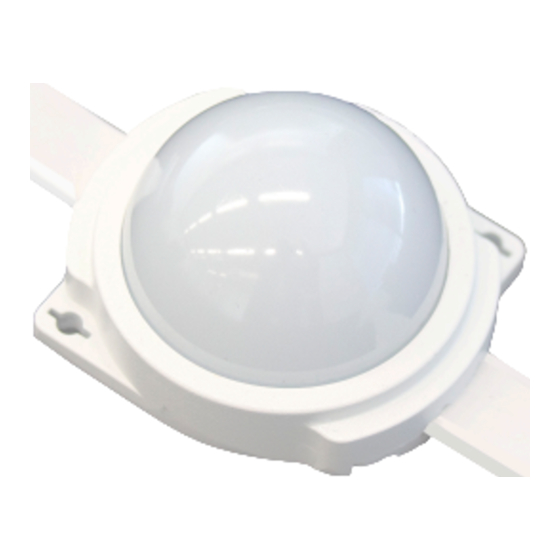

Traxon Allegro Dot M Mounting Manual

This lighting chain can use for indoor and outdoor.

Direct View

52mm/2"

Diffused View

52mm/2"

Mounting the Allegro Dot M/L

(M3 Screws not included)
(Cable ties not included)
Suggested alternative method
if M3 screws are not viable
CAUTION:
1. Always use the housing unit for mounting. Handle string with
care. Improper handling of lead cable and string will cause
damage.
2. Warning-This lighting chain must not be used without all
gaskets being in place.
www.traxontechnologies.com
©2019 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Mounting Guide

Distributor Box

68mm/2.7"
Ø6.3mm/0.25" x 4
Cable length:
300mm/11.8"
M4 x 4
CAUTION:
1. The light source of this luminaire is not replaceable; when the light source reaches its end
of life the whole luminaire shall be replaced.
2. The length of the cable between the pixel distributor and the first lamp or lamp holder shall
not be less than 1.5m.
3. Do not connect the chain to the supply while it is in the packing.

Mounting the Smart Junction

Mounting the LED Engine and Pixel Distributor

LED Engine mounts
on top of the Pixel Distributor
(LED Engine is ordered
separately)
Mount Pixel Distributor
with connectors facing down
This class III lighting chains delivered without a supply source, please select the suitable power source.
Independent, constant voltage type, SELV DC 30 V output, the output power shall be not less than the
lighting chain's power, short-circuited proof, IP67 or above (if the IP rating is below IP67, the luminaire
manufacturer shall provide adequate instructions for connection to the supply ensuring an equivalent
degree of protection against harmful ingress of dust and moisture as that provided by the luminaire, for
example, the PSU use indoors), which is/are EN/IEC 61347-1 and EN/IEC 61347-2-13 certified.
09/19 V1.4
Cable length: 300mm/11.8"
204mm/8"
224mm/8.8"
244.2mm/9.6"
A l l eg r o D ot M/ L
M o u n ti n g Gu ide

Smart Junction

33mm/1.3"
42mm/1.7"
25mm/0.98"
51mm/2"
M4 × 8mm × 4
(Included)
M5 anchor bolts
(Not included)
1 of 2
