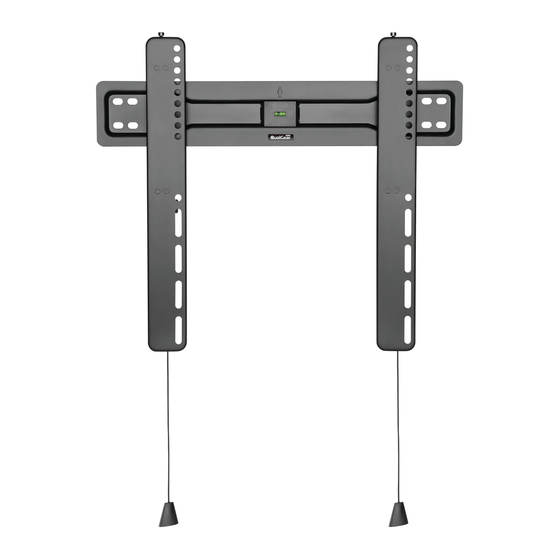

QualGear QG-TM-F-014 Installation Manual

Ultra low profile fixed tv wall mount
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

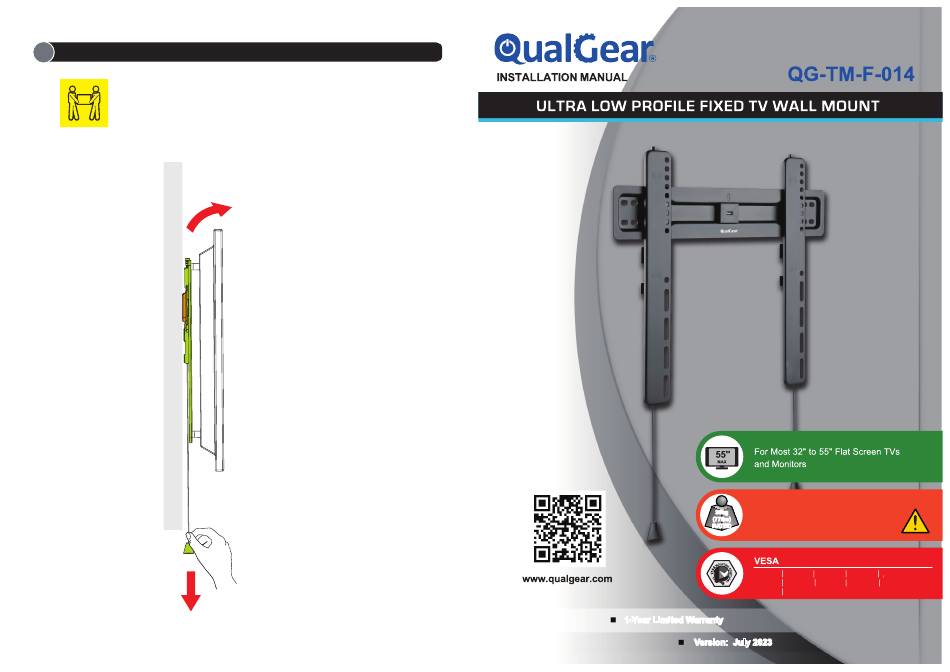

Detach the TV
5
To detach the TV assembly from the wall
plate, using an assistant, pull the cords at the
bottom of the brackets, and tilt the TV up to
snap out of the brackets, then lift the TV to
detach it from the wall plate.
CAUTION!
Do not exceed the maximum rated weight
35kg
specified. Otherwise, serious injury or
(77lbs)
RATED
property damage may occur.
100x100 100x150 100x200 150x100 150x150
200x100 200x200 300x200 300x300 400x200
400x300 400x400
1-Year Limited Warranty
1-Year Limited Warranty
Version: July 2023
Version: July 2023

Advertisement

loading

Related Manuals for QualGear QG-TM-F-014

Summary of Contents for QualGear QG-TM-F-014

  • Page 1 Detach the TV To detach the TV assembly from the wall plate, using an assistant, pull the cords at the bottom of the brackets, and tilt the TV up to snap out of the brackets, then lift the TV to detach it from the wall plate.

  • Page 2: Parts Checklist

    Before starting installation, please check that all parts shown in this checklist IMPORTANT: are included. If any parts are missing or damaged, contact your local distributor or support@qualgear.com for replacement parts and do not start assembly and installation WARNING until you receive all the parts.
  • Page 3 Mounting to a Wooden Stud Wall For concrete wall NOTE mounting, follow Step 1b. Stud Finder Using an edge-to-edge stud finder, find the Using a level, mark the centerline of the stud edges of the stud. (2. ") (2 2 . ") ø...

  • Page 4: Mounting To A Concrete Or Brick Wall

    Mounting to a Concrete or Brick Wall NOTE Do NOT use power drill and do NOT over tighten the lag bolts. Wall Plate Marking Template Hold the marking template (D) provided against the wall where you want to install your TV, mark four holes for drilling.
  • Page 5 Attach TV Brackets Choose the appropriate screws and washers according to the type of your TV, and attach adapter brackets (A) to the back of the TV using a Phillips screwdriver. IMPORTANT! Use a toothpick to measure the depth of the M-A/ M-B M-C/ M-D mounting hole and choose the appropriate...
  • Page 6 Hang the TV Level the TV Once the brackets are attached to the TV, using an assistant, place the brackets on the wall plate securely. While holding the TV assembly securely, pull the cords at the bottom of the brackets and push the TV assembly to snap on the wall plate firmly.
