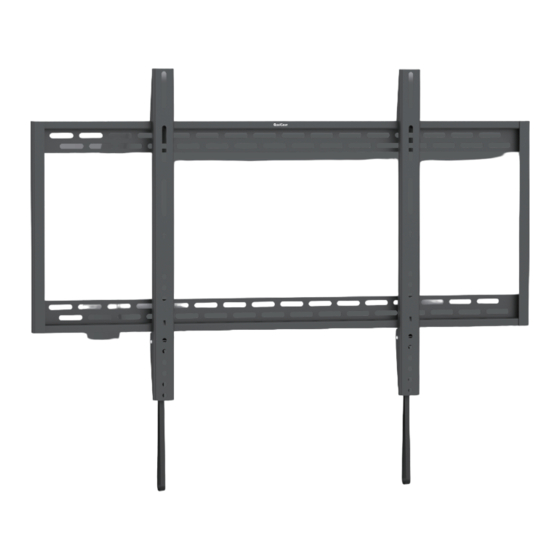

QualGear QG-TM-090-BLK Installation Manual

WALL
PUSH
Removing the TV from the Wall Plate
WALL
PULL DOWN TO RELEASE
Using an assistant, hang
the TV onto the wall plate
WALL
carefully by pushing the
buttom of the TV towards
the wall until the latches fit into the
wall plate rail. Then hide the two
safety straps at the back of the TV to
avoid pulling on it accidently, which
may cause the TV to release and fall.
Make sure the TV is safely
secured on the wall before releasing it.
Do not pull on the safety straps unless
you need to remove the TV. See
step 4 on how to safely remove the TV.
WALL
To remove the TV from the Wall Plate,
have an assistant hold the TV
while the other person pull the two
safety straps downward at the
same time to unlock the latches from
the wall plate rail. Then carefully lift
and remove the TV.
HEAVY DUTY FIXED TV WALL MOUNT
Scan the QR Code™ below
for more info about this product:
QG-TM-090-BLK
60 100
100
Do not exceed the maximum rated weight
100kg 100kg
(220lbs) (220lbs) specified. Otherwise, serious injury or
RATED RATED
property damage may occur.
200x200 300x300 400x200 400x400
600x400 800x400 800x600 900x600
Version September 2018 Version September 2018
