AIRES SPLIT DUCTED UNIT
Indoor
Installation and Commissioning Guide
Model Numbers
Single Phase
EVA10AS*
EVA13AS
EVA15AS
EVA17AS
Three Phase
EVA13AS
EVA15AS
EVA17AS
Split Fan-Coil**
ECA13AS / EFA13AS
ECA15AS / EFA15AS
ECA17AS / EFA17AS

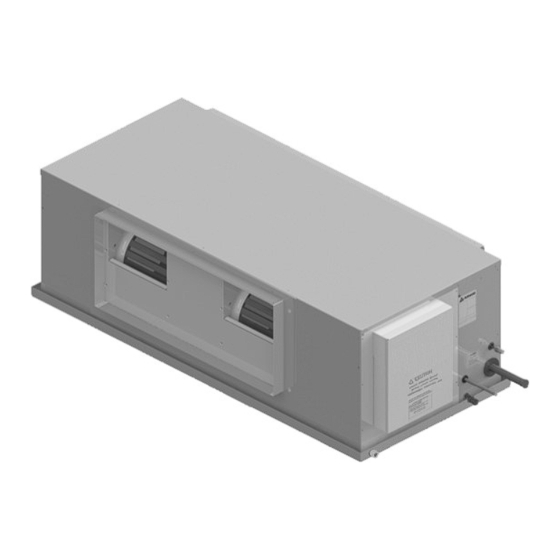

* Unit illustration shown is an EVA13AS unit. EVA10AS has a single fan configuration.
** Split fan coil has a separate coil and fan.
CAUTION:
The system is charged with flammable
refrigerant, safety checks are necessary to
ensure that the risk of ignition is minimised.
IMPORTANT NOTE:
This unit is designed for use with R-32 refrigerant only.
Please read the R-32 Safety Manual and this manual carefully
before installing or operating your air conditioning unit.
Information in this manual is to be used in conjunction with
the R-32 Safety Manual.
Make sure to save this manual for future reference.
Advertisement
Table of Contents
Related Manuals for ActronAir AIRES EVA10AS
Summary of Contents for ActronAir AIRES EVA10AS
- Page 1 AIRES SPLIT DUCTED UNIT Indoor Installation and Commissioning Guide Model Numbers Single Phase EVA10AS* EVA13AS EVA15AS EVA17AS Three Phase EVA13AS EVA15AS EVA17AS Split Fan-Coil** ECA13AS / EFA13AS ECA15AS / EFA15AS ECA17AS / EFA17AS * Unit illustration shown is an EVA13AS unit. EVA10AS has a single fan configuration. ** Split fan coil has a separate coil and fan.
-
Page 2: Table Of Contents
Aires Indoor Units Installation and Commissioning Guide Table of Contents Introduction ��������������������������������������������������������������������������������������������������������������������������������� 3 Safety Instructions ����������������������������������������������������������������������������������������������������������������������� 4 Components Overview ����������������������������������������������������������������������������������������������������������������� 5 Indoor Unit Components Overview Indoor Unit Electrical Panel Overview Unit Dimensions and Clearances ��������������������������������������������������������������������������������������������������� 6 Indoor Unit - EVA10AS Indoor Unit - EVA13AS / EVA15AS / EVA17AS Two-Piece Fan Coil Indoor Unit - Upright Fan Coil with Vertical Discharge... -
Page 3: Introduction
Check your air conditioning unit and all items against the invoice upon receiving your shipment. Inspect the unit, components and accessories for any sign of damage. If there is any damage to the unit, contact ActronAir Customer Care Department immediately on: 1300 522 722 to obtain a Goods Return Number. -
Page 4: Safety Instructions
Aires Indoor Units Installation and Commissioning Guide Safety Instructions • Only licensed HVAC technicians* should install and service air conditioning equipment. Improper service or alteration by an unqualified technician could result in significant and major damage to the product or property which may render your warranty null and void. -
Page 5: Components Overview
Aires Indoor Units Installation and Commissioning Guide Components Overview Indoor Unit Components Overview EC MOTOR COIL ELECTRICAL BOX COVER CONTROL PANEL Indoor Unit Electrical Panel Overview TRANSFORMER CONTROL BOARD Installation and Commissioning Guide - Aires Split Ducted Indoor Units Doc. No. 0525-134 Ver. 1 230929... -
Page 6: Unit Dimensions And Clearances
1000 mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow. -
Page 7: Indoor Unit - Eva13As / Eva15As / Eva17As
1000 mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow. -
Page 8: Two-Piece Fan Coil
1000 mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow. - Page 9 1000 mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
-
Page 10: Indoor Unit - Upright Fan Coil With Vertical Discharge
Aires Indoor Units Installation and Commissioning Guide Indoor Unit - Upright Fan Coil with Vertical Discharge H-SD LIQUID PIPE SUPPLY AIR GAS PIPE INDOOR COIL TOP VIEW SUPPLY W-RD W-SD ELECTRICAL INDOOR INDOOR ACCESS PANEL RETURN H-RD 4 x Ø 15mm MOUNTING CONDENSATE HOLES... -
Page 11: Minimum Service Areas And Airflow Clearances
Aires Indoor Units Installation and Commissioning Guide Minimum Service Areas and Airflow Clearances Indoor Unit - EVA13AS / EVA15AS / EVA17AS DUCT WORK INDOOR COIL LEFT *RIGHT SERVICE SERVICE CLEARANCE CLEARANCE 800 mm 800 mm ID FAN ID FAN * Electrical box and/or TOP VIEW DUCT WORK pipe connections are... -
Page 12: Top View
EFA15AS perimeter is available. EFA17AS 50.5 3. Minimum service access clearances are responsibilities of the installer, ActronAir EVA10AS-V will not be held liable for any extra EVA13AS-V DUCT WORK charges incurred due to lack of access. -
Page 13: Installation Instructions
Compliance and consultation with the authorities having jurisdiction with the installation of this equipment is the responsibility of the installer. ActronAir will not be held liable for any damages or costs as a result of the installer’s failure to comply. Please refer to the matching outdoor unit Installation and Commissioning Guide for further information and details. - Page 14 NOTE This indoor unit is designed to match only with an ActronAir Series outdoor unit as specified in the Technical Selection Catalogue. The unit is supplied with factory charged dry air. Be aware of the pressurised air charge when purging. Remove the caps from the connection points and purge the system only when the field pipe connections are ready to be completed.
-
Page 15: Airflow Application Guidelines
NOTE Supply and Return Air Plenums must be as per ActronAir Plenums or equal to, or lower static pressure. Installation and Commissioning Guide - Aires Split Ducted Indoor Units Doc. No. 0525-134 Ver. 1 230929... -
Page 16: Return Air Grille Sizes
Aires Indoor Units Installation and Commissioning Guide Return Air Grille Sizes Careful consideration is to be given to pressure drops through return air grilles, air filters and crimped or tight bends in duct. Grille sizes shown are based on a velocity of 2.5 m/s, sizes shown are free area, please ensure your suppliers are aware of these requirements. -
Page 17: Unit Lifting Procedures
Aires Indoor Units Installation and Commissioning Guide Unit Lifting Procedures WARNING WH&S regulations must be observed and will take precedence during lifting process. Do not use pipes or tube coming out from the unit to lift the unit. Crane Lifting Method DANGER Make sure rigging equipment, accessories and plant are sufficiently and safely capable to lift the unit in order to prevent potential damage to property, severe personal injury or death. -
Page 18: Fork Lift Method
Aires Indoor Units Installation and Commissioning Guide Procedure: 1. Slip nylon slings through the pallet as shown in Figure 1. 2. Use Bow or Dee shackle to connect the slings. 3. Ensure slings are protected by rubber pads or similar if slings are draped across unit edges, corners, or air grilles . This will prevent the unit from being damaged during lifting. -
Page 19: Pallet Dimensions
Aires Indoor Units Installation and Commissioning Guide Pallet Dimensions NOTE Pallet fork lifting hole dimensions all dimensions in MM. EVA10AS EVA13AS / EVA15AS / EVA17AS Installation and Commissioning Guide - Aires Split Ducted Indoor Units Doc. No. 0525-134 Ver. 1 230929... -
Page 20: Safety Drain Tray
Aires Indoor Units Installation and Commissioning Guide Safety Drain Tray NOTES • Do not use pipes or tube coming out from the unit to lift the unit. • Support drain line for long pipe run. • Refer to unit dimension page for specification of drain connectors. CONDENSATE AND SAFETY TRAY •... -
Page 21: Zone Barrel Installation Instructions
(positions that range from 9 o’clock to 3 o’clock), as shown below: It is also recommended that only ActronAir 24V zones be connected to this system using RJ45 cable connections. Warranty may be void if third party zones cause damage to the system. -
Page 22: Electrical Installation
Aires Indoor Units Installation and Commissioning Guide Electrical Installation All electrical work must be carried out by a qualified technician. Make sure all wiring is in accordance with local wiring rules. Wiring connections should be made in accordance with the wiring diagram provided. DANGER Live Electrical Supply ! •... -
Page 23: Wiring Diagram
Aires Indoor Units Installation and Commissioning Guide Wiring Diagram EVA / EFA 100-230S Variation Code: Variation: Base EVV / EFV / EVA 10-17AS Model No: EVV / EFV 140-180S Description: INDOOR BOARD + 8 ZONE WITH 3 WALL CONTROLLERS Drawn: Date: Revision Size:... -
Page 24: Electrical Connection
Aires Indoor Units Installation and Commissioning Guide Electrical Connection NOTES • To minimise noise interference, Data and Power cable clearance should be maintained as much as possible. • All drawings are for illustration purposes only. Actual unit may vary depending on the model. •... -
Page 25: Data Cable Shielding Instructions
Aires Indoor Units Installation and Commissioning Guide Data Cable Shielding Instructions 2 Core Twisted (ActronAir Part Number: AEDC2) NOTES • Maintain the twist of the core wires up to the Green Terminal Plug. • Maximum strip length of outer insulation to the Green Terminal Plug is 50mm. -
Page 26: Circuit Breaker Size Recommendation
Aires Indoor Units Installation and Commissioning Guide Circuit Breaker Size Recommendation Outdoor / Indoor Circuit Model Number Breaker Size Amps CRS10AS / EVA10AS EFA10AS CRS13AS / EVA13AS EFA13AS CRS15AS / EVA15AS EFA15AS CRS17AS / EVA17AS EFA17AS CRS13AT / EVA13AS EFA13AS CRS15AT / EVA15AS EFA15AS CRS17AT / EVA17AS EFA17AS Notes:... -
Page 27: Wall Controller Options
Aires Indoor Units Installation and Commissioning Guide Wall Controller Options Wall Controller Options A maximum of three (3) wall controllers in the below combinations is allowed per unit. See below table. Wall Controllers Options 1st Option 2nd Option 3rd Option LR7-1 / LC7-2 4th Option LR7-1 / LC7-2... -
Page 28: Wiring Configuration : Recommended
Aires Indoor Units Installation and Commissioning Guide Wiring Configuration : Recommended NOTES • Diagram shown below is a general representation only. Refer to individual unit wiring diagram for complete wiring connection details. • Long runs beside Mains cables or TV antenna cables should be avoided. •... -
Page 29: Wiring Configuration : Alternate
Aires Indoor Units Installation and Commissioning Guide Wiring Configuration : Alternate LR7-1 WALL INDOOR UNIT LR7-1 WALL CONTROLLER LR7-1 WALL CONTROLLER CONTROLLLER (OPTIONAL) (OPTIONAL) (OPTIONAL) Installation of the Outdoor Unit securely. Outdoor unit dimension LM-RS (OPTIONAL) OUTDOOR UNIT AERSS (OPTIONAL) DATA CONTROL CABLE NOTES... -
Page 30: Cable Length - Zoning
* All Zone Device Power Cable : Cat5E Spec Cables with RJ45 Connectors and Cable Boots - Green Colour • ** Total Cumulative length of all the aggregate cable must not exceed 250 meters. Consult ActronAir for longer cable length requirement. -
Page 31: Lr7-1 / Lr7-2
1 to 4 (Optional 4 Zones Piggy-Back Configuration), if 1 to 3 is 75m, then 3 to 4 must be 25m to make a total of 100m. *** Recommended maximum cable length, providing total of preceding cable connections are only 5m. ^ Total Cumulative length of all the aggregate cable must not exceed 500 meters. Consult ActronAir for longer cable length requirement. -
Page 32: Wiring Connections
Aires Indoor Units Installation and Commissioning Guide Wiring Connections LR7-1 and LC7-2 Wall Control Wiring Connections INDOOR WALL CONTROL WIRING CONTROL BOARD POWER: - BROWN / ORANGE 485 A: - BLUE WALL CONTROLLER +12V A 485 B: - BLUE-WHITE GND: - BROWN-WHITE / ORANGE-WHITE NOT USED: - GREEN / GREEN-WHITE WALL CONTROL... -
Page 33: Lm-Rs-2 Optional Sensor Wiring Connections
Aires Indoor Units Installation and Commissioning Guide LM-RS-2 Optional Sensor Wiring Connections INDOOR CONTROL REMOTE SENSOR WIRING BOARD PAIR 1: - BLUE / BLUE-WHITE PAIR 2: - ORANGE / ORANGE-WHITE TEMP PAIR 3: - GREEN / GREEN-WHITE SENSORS PAIR 4: - BROWN / BROWN-WHITE OPTIONAL OPTIONAL OPTIONAL... -
Page 34: Zone Commissioning
Aires Indoor Units Installation and Commissioning Guide Zone Commissioning When the unit is powered on, zone detection will automatically start. This will take 2 minutes to complete. A zone detection can also be manually triggered on the LR7-1/LC7-2 controller by pressing the ON/OFF button and Zone 1 button for 3 seconds. -
Page 35: Maintenance Frequency Checklist
Aires Indoor Units Installation and Commissioning Guide Maintenance Frequency Checklist Regular servicing of equipment by a qualified technician is recommended every 12 months for residential applications and every quarter for commercial applications. Regular servicing of your unit helps in maintaining its optimum performance and reliability. -
Page 36: Version History
Aires Indoor Units Installation and Commissioning Guide Version History DOCUMENT VERSION BOM VERSION UPDATE HISTORY Ver 1 -0100 Released Installation and Commissioning Guide - Aires Split Ducted Indoor Units Doc. No. 0525-134 Ver. 1 230929... - Page 37 ©Copyright 2023 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of its products. Therefore, specifications are subject to change without notice. Document: 0525-134 Ver. 1 Issue Date: 09/2023...
