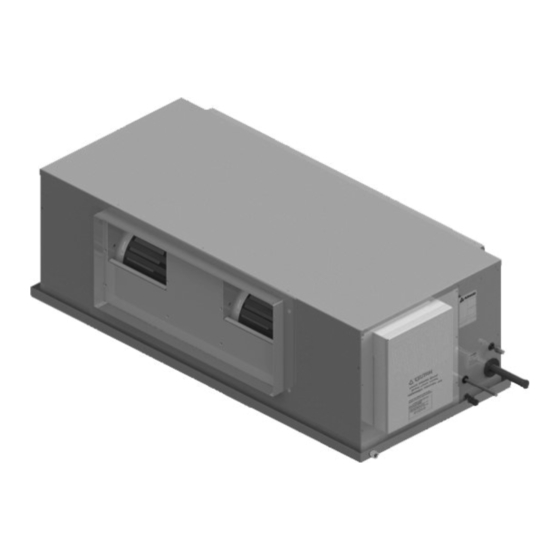

Split ducted unit - indoor

Advertisement

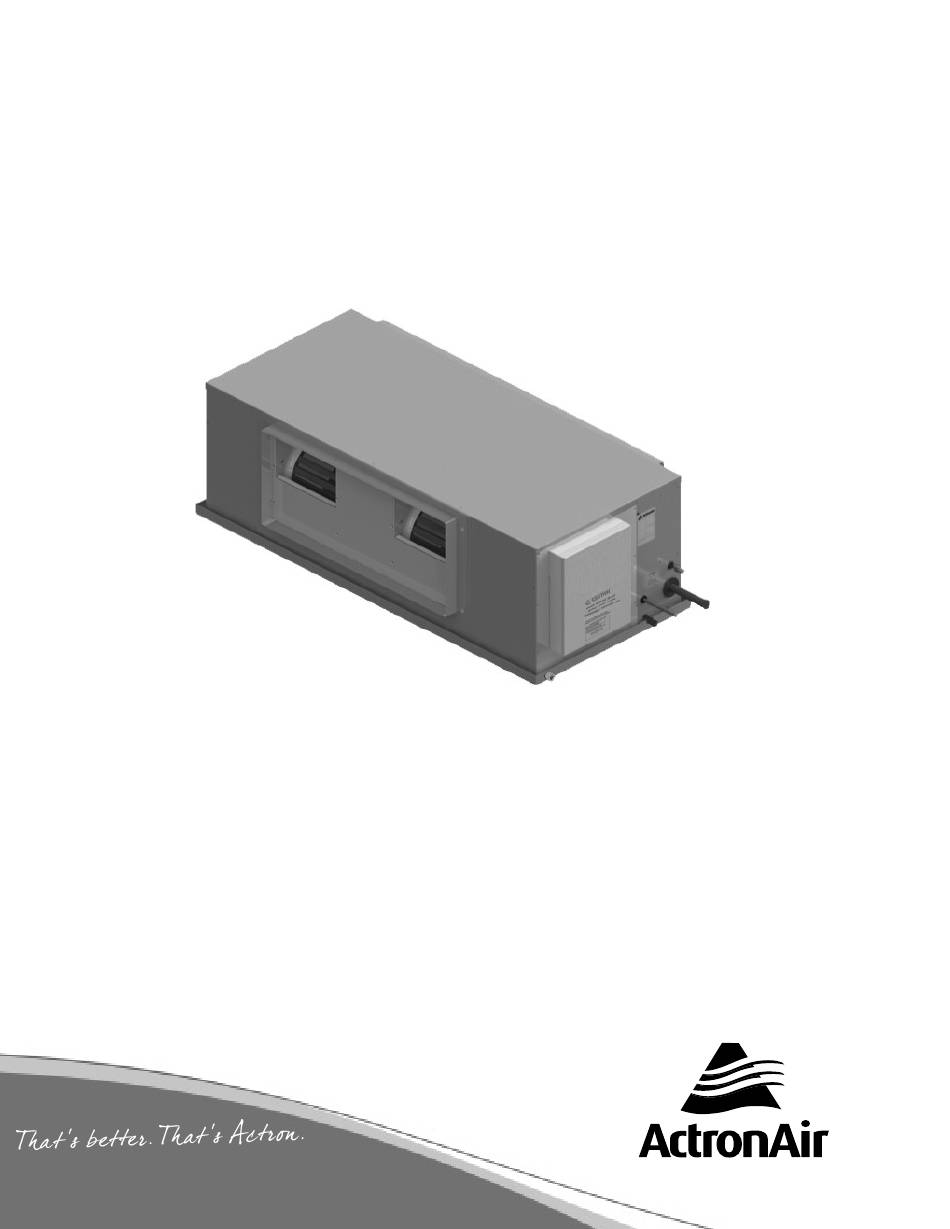

ADVANCE
Split Ducted Unit - Indoor (R-32 Series)
Installation and Commissioning Guide
Model Numbers
Single Fan Coil
Split Fan Coil*
EVV13AS
EAA13AS and EFV13AS
EVV15AS
EAA15AS and EFV15AS
EVV17AS
EAA17AS and EFV17AS
* Split fan coil has a separate coil and fan.
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVANCE EVV13AS and is the answer not in the manual?

Questions and answers

Summary of Contents for ActronAir ADVANCE EVV13AS

  • Page 1 ADVANCE Split Ducted Unit - Indoor (R-32 Series) Installation and Commissioning Guide Model Numbers Single Fan Coil Split Fan Coil* EVV13AS EAA13AS and EFV13AS EVV15AS EAA15AS and EFV15AS EVV17AS EAA17AS and EFV17AS * Split fan coil has a separate coil and fan. IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.
  • Page 2: Table Of Contents

    Advance R-32 Indoor Units Installation and Commissioning Guide Table of Contents Introduction ��������������������������������������������������������������������������������������������������������������������������������� 3 Safety Instructions ����������������������������������������������������������������������������������������������������������������������� 4 Components Overview ����������������������������������������������������������������������������������������������������������������� 5 Indoor Unit Components Overview Indoor Unit Electrical Panel Overview Unit Dimensions and Clearances ��������������������������������������������������������������������������������������������������� 6 Indoor Unit - EVV13AS / EVV15AS / EVV17AS Two-Piece Fan Coil Minimum Service Areas and Airflow Clearances Installation Instructions ��������������������������������������������������������������������������������������������������������������...
  • Page 3: Introduction

    Check your air conditioning unit and all items against the invoice upon receiving your shipment. Inspect the unit, components and accessories for any sign of damage. If there is any damage to the unit, contact ActronAir Customer Care Department immediately on: 1300 522 722 to obtain a Goods Return Number.
  • Page 4: Safety Instructions

    Advance R-32 Indoor Units Installation and Commissioning Guide Safety Instructions • Only licensed HVAC technicians* should install and service air conditioning equipment. Improper service or alteration by an unqualifi ed technician could result in signifi cant and major damage to the product or property which may render your warranty null and void.
  • Page 5: Components Overview

    Advance R-32 Indoor Units Installation and Commissioning Guide Components Overview Indoor Unit Components Overview EC MOTOR COIL ELECTRICAL BOX COVER CONTROL PANEL Indoor Unit Electrical Panel Overview TRANSFORMER CONTROL BOARD Installation and Commissioning Guide - Advance Split Ducted Indoor Units (R-32 Series) Doc.
  • Page 6: Unit Dimensions And Clearances

    1000 mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
  • Page 7: Two-Piece Fan Coil

    1000 mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
  • Page 8 1000 mm between the units or between the unit and the outside perimeter is available. 3. Minimum service access areas and spaces for airflow clearances are responsibilities of the installer, ActronAir will not be held liable for any extra charges incurred due to lack of access and space for airflow.
  • Page 9: Minimum Service Areas And Airflow Clearances

    3. Minimum service access clearances are TOP VIEW DUCT WORK pipe connections are responsibilities of the installer, ActronAir located on the Right side of the indoor unit. will not be held liable for any extra charges incurred due to lack of access.
  • Page 10: Installation Instructions

    Compliance and consultation with the authorities having jurisdiction with the installation of this equipment is the responsibility of the installer. ActronAir will not be held liable for any damages or costs as a result of the installer’s failure to comply. Please refer to the matching outdoor unit Installation and Commissioning Guide for further information and details.
  • Page 11 Split Fan Coil System (Optional) The ActronAir innovative 2-piece fan coil system provides a solution to your difficult and tight roof space installation requirement. This versatile system has a separate fan and coil sections. Each of the compact and lightweight section is simply installed in two separate locations and joined by flexible duct system.
  • Page 12: Airflow Application Guidelines

    NOTE Supply and Return Air Plenums must be as per ActronAir Plenums or equal to, or lower static pressure. Installation and Commissioning Guide - Advance Split Ducted Indoor Units (R-32 Series)
  • Page 13: Return Air Grille Sizes

    Advance R-32 Indoor Units Installation and Commissioning Guide Return Air Grille Sizes Careful consideration is to be given to pressure drops through return air grilles, air filters and crimped or tight bends in duct. Grille sizes shown are based on a velocity of 2.5 m/s, sizes shown are free area, please ensure your suppliers are aware of these requirements.
  • Page 14: Unit Lifting Procedures

    Advance R-32 Indoor Units Installation and Commissioning Guide Unit Lifting Procedures WARNING WH&S regulations must be observed and will take precedence during lifting process. Do not use pipes or tube coming out from the unit to lift the unit. Crane Lifting Method DANGER Make sure rigging equipment, accessories and plant are sufficiently and safely capable to lift the unit in order to prevent potential damage to property, severe personal injury or death.
  • Page 15: Fork Lift Method

    Advance R-32 Indoor Units Installation and Commissioning Guide Procedure: 1. Slip nylon slings through the pallet as shown in Figure 1. 2. Use Bow or Dee shackle to connect the slings. 3. Ensure slings are protected by rubber pads or similar if slings are draped across unit edges, corners, or air grilles . This will prevent the unit from being damaged during lifting.
  • Page 16: Pallet Dimensions

    Advance R-32 Indoor Units Installation and Commissioning Guide Pallet Dimensions PALLET FORK LIFTING HOLE DIMENSIONS ALL DIMENSIONS IN MM. EVV13AS / EVV15AS / EVV17AS Installation and Commissioning Guide - Advance Split Ducted Indoor Units (R-32 Series) Doc. No. 0525-103 Ver. 1 221011...
  • Page 17: Safety Drain Tray

    Advance R-32 Indoor Units Installation and Commissioning Guide Safety Drain Tray NOTES • Do not use pipes or tube coming out from the unit to lift the unit. • Support drain line for long pipe run. • Refer to unit dimension page for specification of drain connectors. CONDENSATE AND SAFETY TRAY •...
  • Page 18: Zone Barrel Installation Instructions

    (positions that range from 9 o’clock to 3 o’clock), as shown below: It is also recommended that only ActronAir 24V zones be connected to this system using RJ45 cable connections. Warranty may be void if third party zones cause damage to the system.
  • Page 19: Electrical Installation

    Advance R-32 Indoor Units Installation and Commissioning Guide Electrical Installation All electrical work must be carried out by a qualified technician. Make sure all wiring is in accordance with local wiring rules. Wiring connections should be made in accordance with the wiring diagram provided. DANGER Live Electrical Supply ! •...
  • Page 20: Wiring Diagram

    Advance R-32 Indoor Units Installation and Commissioning Guide Wiring Diagram EVA/EFA100-230S Variation Code: Variation: Base EVV/EFV13-17AS Model No: EVV/EFV140-180S Description: INDOOR BOARD + 8 ZONE WITH 3 WALL CONTROLLERS Drawn: Date: 08-05-2019 Drawing No: Revision Size: WD2210 This drawing remains the intellectual property of Actron Engineering Pty Ltd. Date: 20-09-2022 Reproduction, modification and/or distribution are prohibited without written consent.
  • Page 21: Electrical Connection

    Advance R-32 Indoor Units Installation and Commissioning Guide Electrical Connection NOTES • To minimise noise interference, Data and Power cable clearance should be maintained as much as possible. • All drawings are for illustration purposes only. Actual unit may vary depending on the model. DETAILED WIRING DIAGRAM IS PROVIDED WITH THE UNIT�...
  • Page 22: Data Cable Shielding Instructions

    Advance R-32 Indoor Units Installation and Commissioning Guide Data Cable Shielding Instructions 2 Core Twisted (ActronAir Part Number: AEDC2) NOTES • Maintain the twist of the core wires up to the Green Terminal Plug. • Maximum strip length of outer insulation to the Green Terminal Plug is 50mm.
  • Page 23: Circuit Breaker Size And Cable Size Recommendation

    PRELIMINARY DATA ONLY Ver. 1.02 220620 THIS LABEL TO BE REMOVED ON SIGN-OFF Advance R-32 Indoor Units Installation and Commissioning Guide Circuit Breaker Size and Cable Size Recommendation Circuit Breaker Size Cable Size (mm²) Amps MAIN O�D� to I�D� Model CRV13AS / EVV13AS / EFV13AS 32.0 CRV15AS / EVV15AS / EFV15AS...
  • Page 24: Wall Controller Options

    Advance R-32 Indoor Units Installation and Commissioning Guide Wall Controller Options Wall Controller Options A maximum of three (3) wall controllers in the below combinations is allowed per unit. See below table. Wall Controllers Options 1st Option 2nd Option 3rd Option LR7-1 / LC7-2 4th Option LR7-1 / LC7-2...
  • Page 25: Wiring Configuration : Recommended

    Advance R-32 Indoor Units Installation and Commissioning Guide Wiring Confi guration : Recommended NOTES • Diagram shown below is a general representation only. Refer to individual unit wiring diagram for complete wiring connection details. • Long runs beside Mains cables or TV antenna cables should be avoided. •...
  • Page 26: Wiring Configuration : Alternate

    Advance R-32 Indoor Units Installation and Commissioning Guide Wiring Confi guration : Alternate NOTES INDOOR UNIT LR7-1 LR7-1 LR7-1 WALL CONTROLLER WALL CONTROLLER WALL CONTROLLER (OPTIONAL) (OPTIONAL) (OPTIONAL) OUTDOOR UNIT LM-RS-2 (OPTIONAL) DATA CONTROL AERSS CABLE (OPTIONAL) Item Description Maximum Cable Length 1 to 4 Outdoor PCB to Indoor PCB 100m...
  • Page 27: Cable Length - Zoning

    * All Zone Device Power Cable : Cat5E Spec Cables with RJ45 Connectors and Cable Boots - Green Colour • ** Total Cumulative length of all the aggregate cable must not exceed 250 meters. Consult ActronAir for longer cable length requirement.
  • Page 28: Lr7-1 / Lr7-2

    1 to 4 (Optional 4 Zones Piggy-Back Confi guration), if 1 to 3 is 75m, then 3 to 4 must be 25m to make a total of 100m. *** Recommended maximum cable length, providing total of preceding cable connections are only 5m. ^ Total Cumulative length of all the aggregate cable must not exceed 500 meters. Consult ActronAir for longer cable length requirement.
  • Page 29: Wiring Connections

    Advance R-32 Indoor Units Installation and Commissioning Guide Wiring Connections LR7-1 and LC7-2 Wall Control Wiring Connections INDOOR WALL CONTROL WIRING CONTROL BOARD POWER: - BROWN / ORANGE 485 A: - BLUE WALL CONTROLLER +12V A 485 B: - BLUE-WHITE GND: - BROWN-WHITE / ORANGE-WHITE NOT USED: - GREEN / GREEN-WHITE...
  • Page 30: Lm-Rs-2 Optional Sensor Wiring Connections

    Advance R-32 Indoor Units Installation and Commissioning Guide LM-RS-2 Optional Sensor Wiring Connections INDOOR CONTROL REMOTE SENSOR WIRING BOARD PAIR 1: - BLUE / BLUE-WHITE PAIR 2: - ORANGE / ORANGE-WHITE TEMP PAIR 3: - GREEN / GREEN-WHITE SENSORS PAIR 4: - BROWN / BROWN-WHITE OPTIONAL OPTIONAL OPTIONAL...
  • Page 31: Indoor Commissioning Guide

    Advance R-32 Indoor Units Installation and Commissioning Guide Indoor Commissioning Guide Before activating the self-learn mode, ensure the following: 1. System should be in the OFF mode. 2. Ensure all connected zones are able to be turned on. If a connected zone cannot be opened, refer to Troubleshooting guide for more information.
  • Page 32: Zone Commissioning

    Advance R-32 Indoor Units Installation and Commissioning Guide Zone Commissioning When the unit is powered on, zone detection will automatically start. This will take 2 minutes to complete. A zone detection can also be manually triggered on the LR7-1/LC7-2 controller by pressing the ON/OFF button and Zone 1 button for 3 seconds.
  • Page 33: Maintenance Frequency Checklist

    Advance R-32 Indoor Units Installation and Commissioning Guide Maintenance Frequency Checklist Regular servicing of equipment by a qualified technician is recommended every 12 months for residential applications and every quarter for commercial applications. Regular servicing of your unit helps in maintaining its optimum performance and reliability.
  • Page 34: Version History

    Advance R-32 Indoor Units Installation and Commissioning Guide Version History DOCUMENT VERSION BOM VERSION UPDATE HISTORY Ver 1 -0100 Released Installation and Commissioning Guide - Advance Split Ducted Indoor Units (R-32 Series) Doc. No. 0525-103 Ver. 1 221011...
  • Page 35 ©Copyright 2022 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of its products. Therefore, specifi cations are subject to change without notice. Document: 0525-103 Ver. 1 Issue Date: 10/2022...
