Backyard Creations Laurel Ridge M22104CHD Assembly Instructions

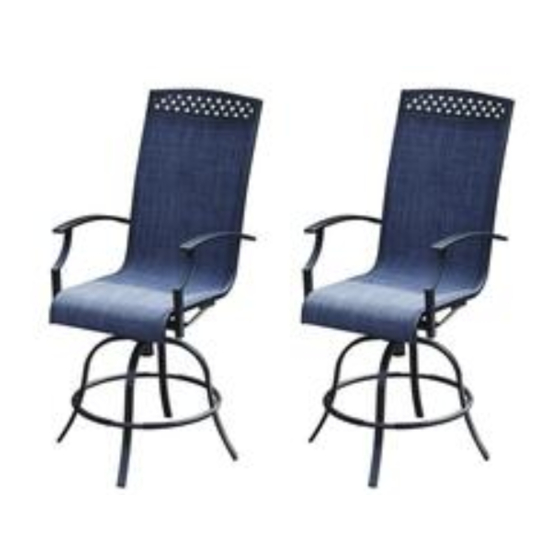

Laurel Ridge 2PK High Sling Swivel Rocker Chair
M22104CHD/2722173

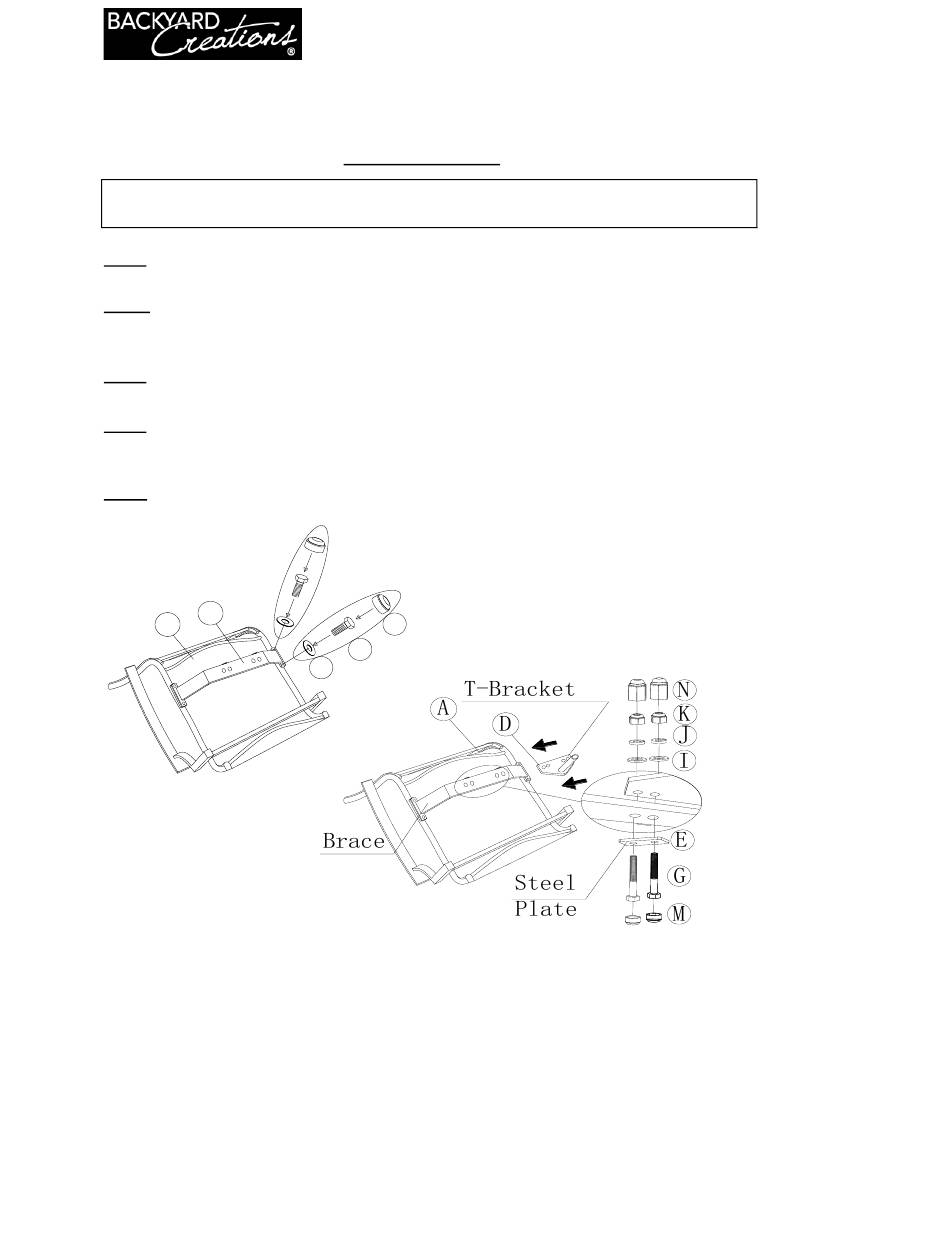

Assembly Instructions
**TO AVOID POTENTIAL SCRATCHING TO PARTS BY ROUGH GROUND SURFACE, COVER GROUND WITH SOFT
SMOOTH PROTECTIVE MATERIAL ON WHICH TO PLACE PARTS DURING ASSEMBLY. **
Step 1: Remove protective wrapping and lay all parts on floor. Identify all parts packed in carton against
the parts list.
Step 2: Lay Seat Bucket (A) on its front side. Attach Brace (B) to Seat Bucket (A), using Bolts(F), Washers
(H) and Bolt covers (L) as shown in Diagram 1. Then align each pair of holes on the T-bracket (D) to the two
pair of holes on the Brace of the Seat Bucket(A), place Steel Plate(E) over Brace so all holes are aligned
correctly as shown in Diagram 2.
Step 3: Attach this assembly together with Bolts (G), Steel Plates(E), Washers(I),Spring Washers(J), Nuts
(K). Put all bolts, washers, and nuts in their proper positions first before tightening securely with Hex
Wrench(O.P).
Step 4: Make sure all bolts are aligned properly and tightened securely. Then place Bolt Covers (M) and
Nut Covers(N) over Bolts and Nuts. And then attach the complete seat bucket to Base (C) as shown in
Diagram 3.
NOTE: IT IS USER'S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND TIGHTENED
PROPERLY AND SECURELY.
B
A
L
F
H
Diagram 1
Diagram 2
1 of 2
