Backyard Creations Shorewood M21018T Assembly Instructions

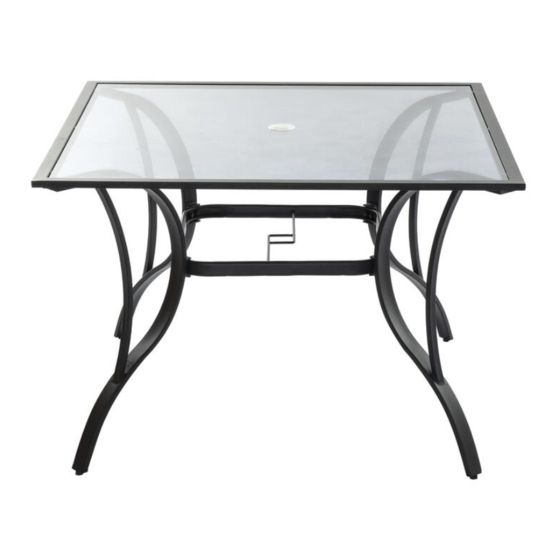

Shorewood 42"SQ Dining Table
M21018T/2721836
Assembly Instructions
**TO AVOID POTENTIAL SCRATCHING TO PARTS BY ROUGH GROUND SURFACE, COVER GROUND
WITH SOFT SMOOTH PROTECTIVE MATERIAL ON WHICH TO PLACE PARTS DURING ASSEMBLY. **
Step 1: Remove protective wrapping and lay all parts on floor. Identify all parts packed in
carton against the parts list.
Step 2: Lay Table Top Frame (A) upside down on floor, so bottom is facing up.
Step 3: Attach each of four legs (B) to the bottom as shown in Diagram 1, using Short Bolt(E)
and Washer (G). Attach Stretcher(C) to Leg (B) using Long Bolt(F) and Washer(G) in Diagram 2.
After all bolts are in their proper position, use Hex Wrench(I) to tighten the bolts. Make sure all
bolts are aligned properly and tightened sufficiently. Then place Bolt Covers(H) over bolts.
Step 4: Carefully turn the table over to upright position on flat surface. Then carefully place
Glass Top(D) into table as shown in Diagram 3.
NOTE: IT IS USER'S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND
TIGHTENED PROPERLY AND SECURELY.
WARNING!: TABLE IS NOT MEANT FOR SITTING OR STANDING ON. DO NOT SIT/TAND ON,
OR LEAN FULL BODY AGAINST TABLE. IMPROPER USE MAY LEAD TO PRODUCT DAMAGE
AND/OR BODILY INJURY.
B
Diagram 1
A
1 of 2
