Backyard Creations Laurel Ridge M22101T Assembly Instructions

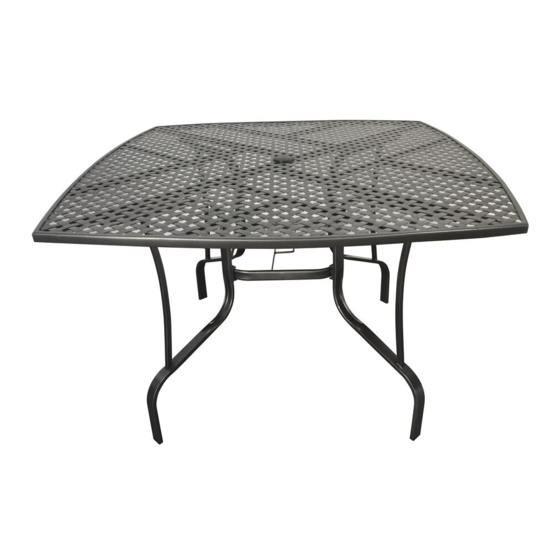

Laurel Ridge 48" Rd Square Dining Table
Item #2722170 / M22101T
Assembly Instructions
**TO AVOID POTENTIAL SCRATCHING TO PARTS BY ROUGH GROUND SURFACE, COVER GROUND
WITH SOFT SMOOTH PROTECTIVE MATERIAL ON WHICH TO PLACE PARTS DURING ASSEMBLY. **
Step 1: Remove protective wrapping and lay all parts on ground. Identify all parts packed in carton against the
parts list.
Step 2: Lay Table Top Frame (A) upside down on ground, so bottom is facing up.

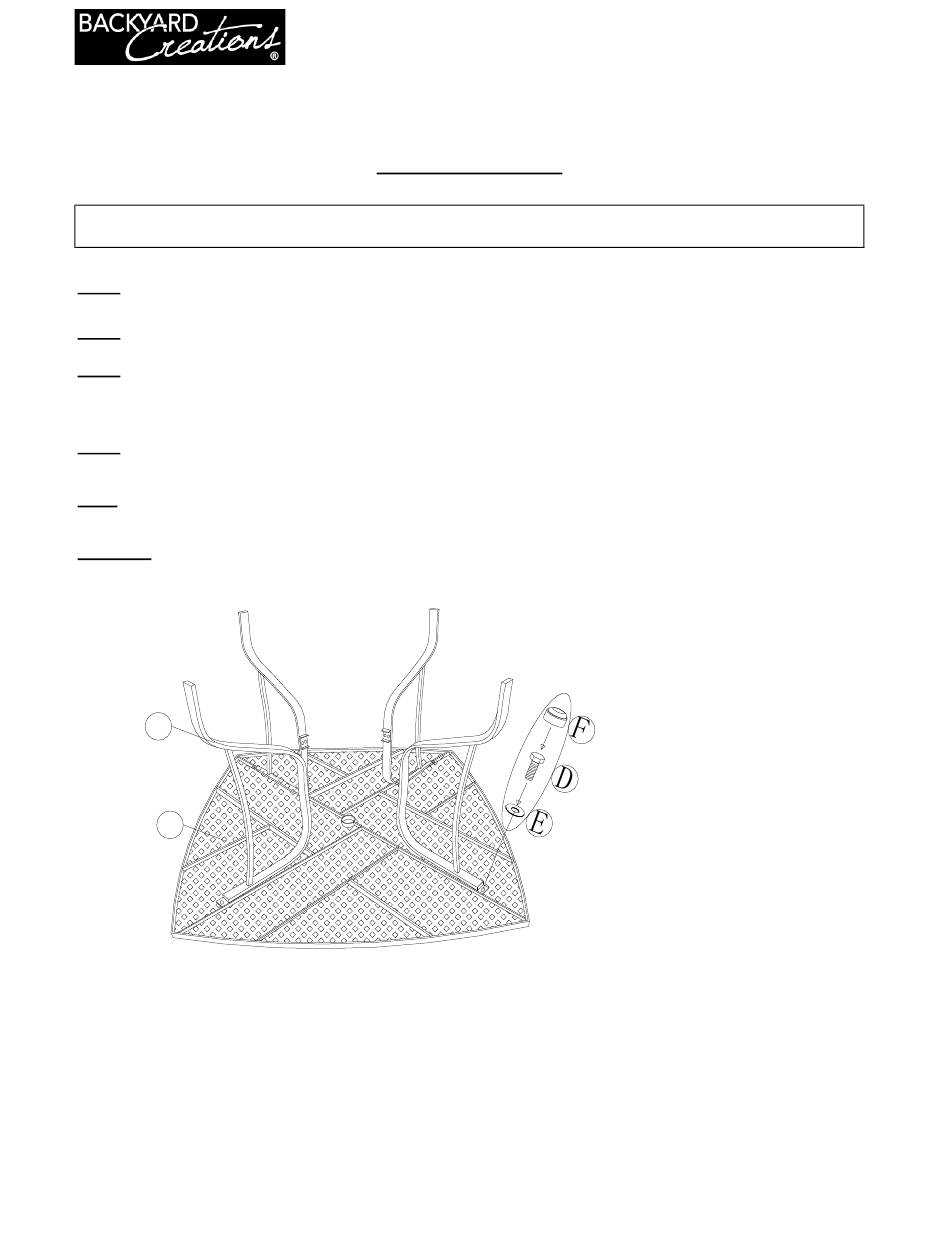

Step 3: Then attach each of four Legs (B) to the Top as shown in Diagram 1, using Bolts (D) and Washers (E).
Attach Stretcher (C) to Legs (B) using Bolts (D) and Washers (E) as shown in Diagram 2. To make sure everything
fits properly, do not tighten all bolts until they are all properly in place. Use Hex Wrench (G) to tighen all Bolts.
Step 4: Make sure all bolts are aligned properly and tightened securely. Then place Bolt Covers (F) over bolts. Turn
the table to upright position on flat surface as shown in Diagram 3.
NOTE: IT IS USER'S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND TIGHTENED PROPERLY
AND SECURELY.
WARNING!: TABLE IS NOT MEANT FOR SITTING OR STANDING ON. DO NOT SIT/STAND ON OR LEAN FULL
BODY AGAINST TABLE. IMPROPER USE MAY LEAD TO PRODUCT DAMAGE AND/OR BODILY INJURY.
B
A
Diagram 1
1 of 2
