Backyard Creations Wrought Iron M21037T Assembly Instructions

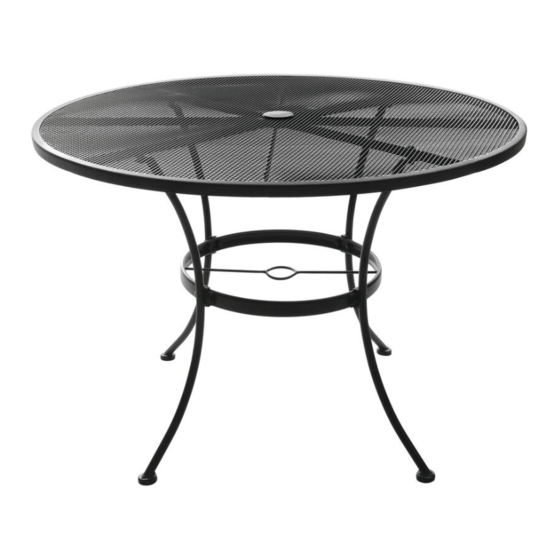

Wrought Iron 42" Rd Mesh Dining Table
**TO AVOID POTENTIAL SCRATCHING TO PARTS BY ROUGH GROUND SURFACE, COVER GROUND
WITH SOFT SMOOTH PROTECTIVE MATERIAL ON WHICH TO PLACE PARTS DURING ASSEMBLY. **
Step 1: Remove protective wrapping and lay all parts on ground. Identify all parts packed in
carton against the parts list.
Step 2: Lay Table Top Frame (A) upside down on ground, so bottom is facing up.
Step 3: Attach each of four legs (B) to the bottom as shown in Diagram 1, using Short Bolt (D)
and Washer (G). Then attach Stretcher (C) to Legs(B) using Long Bolt (E) and Washer (G) ,
and Nut (F) as shown in Diagram 2.
Step 4: Make sure all bolts are aligned properly and tightened sufficiently. Then place Bolt
Covers(H) and Nut Covers(I) over bolts and nuts. Then turn the table over to upright position
onto flat surface.
NOTE: IT IS USER'S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND
TIGHTENED PROPERLY AND SECURELY.
WARNING!: WARNING!: TABLE IS NOT MEANT FOR SITTING OR STANDING ON. DO NOT
SIT/STAND ON OR LEAN FULL BODY AGAINST TABLE. IMPROPER USE MAY LEAD TO
PRODUCT DAMAGE AND/OR BODILY INJURY.
Item #2720469 / M21037T
Assembly Instructions
B
H
D
G
1 of 2
H
D
G
A
Diagram 1
