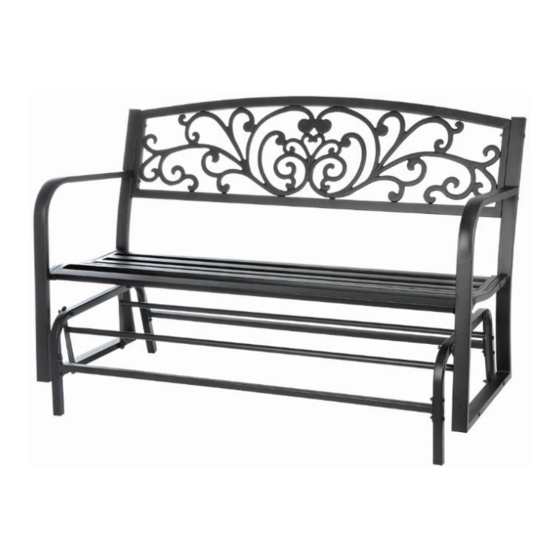

Steel scroll glider bench

Advertisement

INSTRUCTION MANUAL: SKU#272-0961 STEEL SCROLL GLIDER BENCH
CAUTION: Read all instructions before assembly. Failure to do so may result in faulty assembly and potential injury.
SPECIAL WARNINGS: Assemble on a soft, non-abrasive surface, such as carpet or cardboard to avoid damaging the item.
Noted: Identify all parts packed in carton against the parts list. Remove all the protective material carefully and DO NOT use
a knife to prevent scratching the surfaces. USE ONLY ON LEVEL SURFACES. INSPECT VISUALLY BEFORE EACH USE AND
ENSURE ALL HARDWARE IS PROPERLY TIGHTENED.
CUSTOMER SERVICE: For questions, assistance or repair parts, please call toll free at: 1-800-505-8305 (M-F 9:00am-
5:00pm Eastern Time) or visit us on the web www.americancustomerservice.com 24 hours a day.
For missing parts, please call toll free customer
service number for further assistance.
REF.
PARTS
NAME
A
BASE LEG
B
BASE SUPPORT
C
GLIDING BAR
D
SEAT
E
BACK
F
ARMREST
H
M6*60mm
I
M6*35mm
J
M6*50mm

PARTS LIST

QTY
2
2
2
1
1
2
4
8
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 272-0961 and is the answer not in the manual?

Questions and answers

Summary of Contents for Backyard Creations 272-0961

  • Page 1 INSTRUCTION MANUAL: SKU#272-0961 STEEL SCROLL GLIDER BENCH CAUTION: Read all instructions before assembly. Failure to do so may result in faulty assembly and potential injury. SPECIAL WARNINGS: Assemble on a soft, non-abrasive surface, such as carpet or cardboard to avoid damaging the item.
  • Page 2 M6*70mm METAL WASHER PLASTIC WASHER NUT CAP BOLT CAP ALLEN KEY WRENCH ASSEMBLY INSTRUCTIONS STEP ONE: AFFIX BASE  With help of one other person, carefully hold Base Support (B) in place and align with holes in Base Leg (A) ...
  • Page 3 STEP TWO: AFFIX BENCH  Carefully hold Seat (D) in place and align with holes in the middle part of Armrest (F)  Insert Bolt (J) through Armrest (F) and then Seat (D). Secure with Nut (N) using the supplied Allen Key and Wrench ...
  • Page 4  Now your glider bench is ready to use! BACKYARD CREATIONS® MANUFACTURER‘S WARRANTY (Limited 1-Year Warranty) This product is covered under the manufacturer’s one year limited warranty against defects in workmanship and materials. If your product fails structurally during normal use within one year of purchase, the manufacturer will repair or replace the defective unit at no charge.
