www.ti.com
d. Once this file is loaded, the user can navigate through the pages to control a DLPC4420 controller.
4. Flash Loader Configuration:
a. Select the Flash Loader sub-tool, and then select the Browse button. After navigating to
the installation directory, navigate to the DLPC4420_Software_Files folder and select the
"Flash_DLPC4420_DLP660TE_p66_TRP_4KUHD_S610_LED.img" file and click on open.
DLPU126 – DECEMBER 2023
Submit Document Feedback

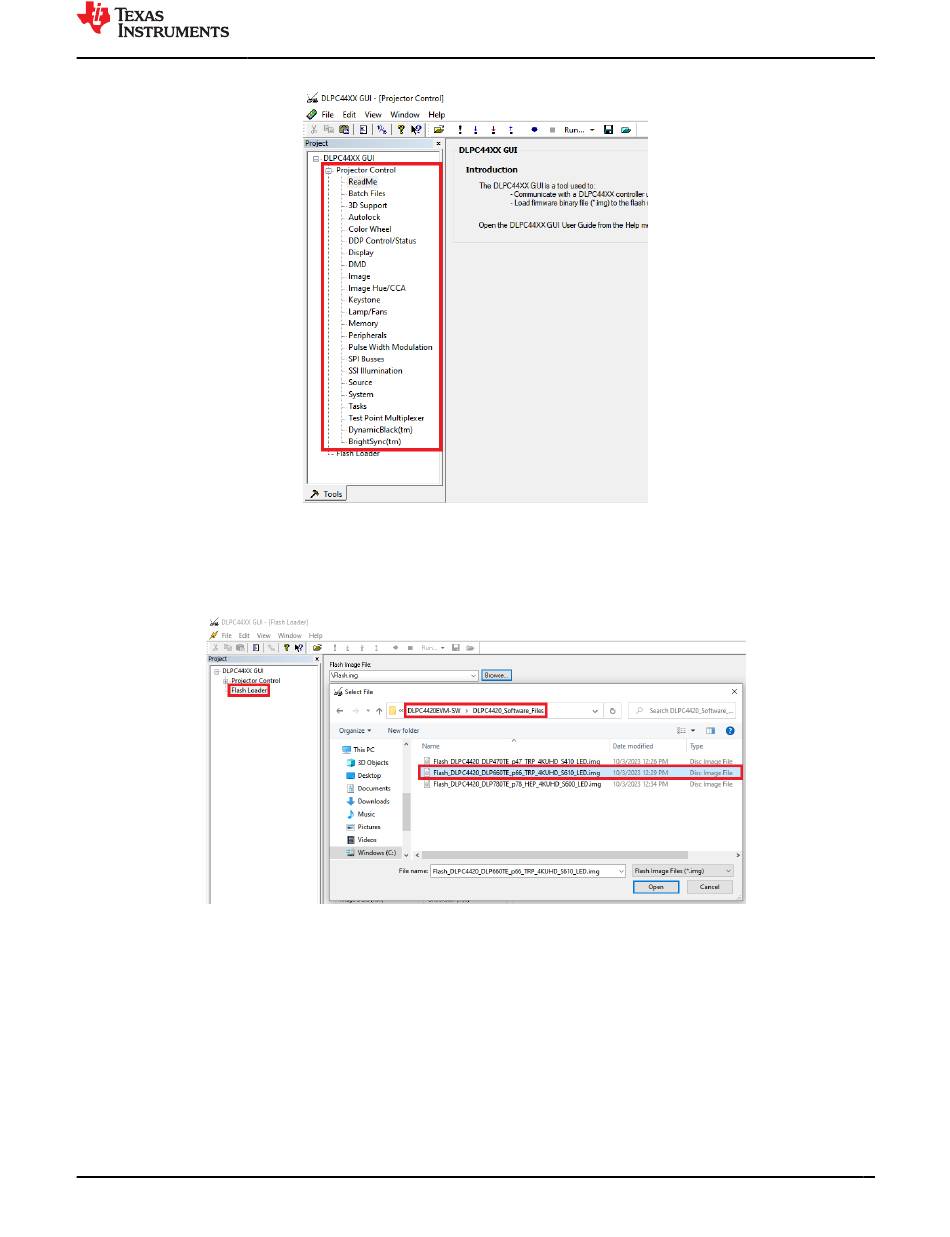

Figure 3-8. DLPC4420 Projector Control Menu
Figure 3-9. Loading the Flash Image
Copyright © 2023 Texas Instruments Incorporated
DLP
®
Display ≥0.47-in Array 4K UHD Evaluation Module
Software
21
