This user's guide describes the characteristics, operation, and use of the DAC81408 evaluation module
(EVM). This document also discusses the proper setup and configuration of both software and hardware,
and reviews various aspects of program operation. Throughout this document, the terms evaluation board,
evaluation module, and EVM are synonymous with the DAC81408EVM. A complete circuit description,
schematic diagram, and bill of materials are also included in this document.
SLAU778A – June 2018 – Revised December 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
SLAU778A – June 2018 – Revised December 2018
DAC81408EVM
User's Guide
1
DAC81408EVM
Advertisement
Table of Contents
Related Manuals for Texas Instruments DAC81408EVM
Summary of Contents for Texas Instruments DAC81408EVM
- Page 1 (EVM). This document also discusses the proper setup and configuration of both software and hardware, and reviews various aspects of program operation. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the DAC81408EVM. A complete circuit description, schematic diagram, and bill of materials are also included in this document.
-
Page 2: Table Of Contents
..................... Layer 3 - Power Plane ........................ Bottom Layer List of Tables .................... Contents of DAC81408EVM Kit ............Required Components Not Included in DAC81408EVM Kit ..................... Related Documentation ......................Power Supply Inputs ......................Jumper Settings ..................... J8 (USB2ANY) Pin Definitions .................... -
Page 3: Overview

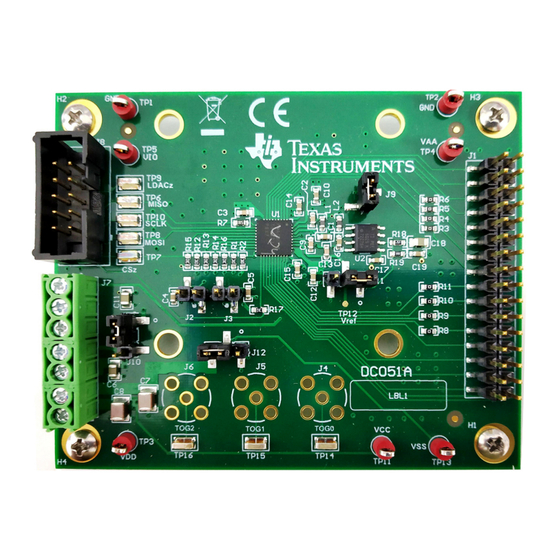

Overview The DAC81408EVM is an easy to use platform for evaluating the functionality and performance of the DAC81408 device. The DAC81408 is a 8-channel, buffered, high-voltage output digital-to-analog converter (DAC) in 16-bit resolution with 2.5-V internal reference. This EVM provides bipolar output voltage up to ±20 V and unipolar up to 40 V. -
Page 4: System Setup
2.1.3 Electrostatic Discharge Warning Many of the components on the DAC81408EVM are susceptible to damage by electrostatic discharge (ESD). Observe proper ESD handling precautions when unpacking and handling the EVM, including the use of a grounded wrist strap at an approved ESD workstation. -
Page 5: Launching Software Setup
2.2.2 Software Installation The software is available through the EVM product folder on the TI website. After the software is downloaded to the PC, navigate to the DAC81408EVM folder, and run the Setup_DAC81408_EVM.exe file, as shown in Figure 2. When the software is launched, an installation dialog window opens and prompts the user to select an installation directory. -
Page 6: Detailed Description
Detailed Description Hardware Description The following sections provide detailed information on the EVM hardware and jumper configuration settings. Table 5 displays the default configurations of all jumper connections on the DAC81408EVM. Table 5. Jumper Settings Jumper Default Position Available Option... -
Page 7: J8 (Usb2Any) Pin Definitions
3.1.2 Signal Definition of USB2ANY The DAC81408EVM provides a hardware connector (J8) that connects to the USB2ANY interface board. The USBANY platform supplies VIO power and is responsible for providing the SPI commands sent from the PC GUI software. Optionally, the VIO supply can be provided through an external supply, and all digital communication lines can be accessed through their respective digital test points. -
Page 8: Dac Output Header
J1.9, J1.11, J1.13, J1.15, J1.17, J1.19, J1.21, DAC ground J1.23, J1.25, J1.27, J1.29, J1.31 J1.10, J1.12, J1.14, J1.16, J1.18, J1.20, J1.22, Not connected J1.24 DAC81408EVM SLAU778A – June 2018 – Revised December 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 9: Dac81408Evm Gui Location
Starting the Software After the DAC81408 EVM software is installed, a restart may be required by Windows. To launch the software, locate the Texas Instruments folder in the All Programs menu, and select the DAC81408 EVM icon. Figure 6. DAC81408EVM GUI Location... -
Page 10: Dac81408Evm Software
Figure 8. Use the Page Selection menu to switch between the pages, with each page representing a feature of the software. Figure 8. DAC81408EVM Software Page Selection 3.2.2.1 Low Level Configuration Page The DAC81408 EVM Register Map page, shown in... -
Page 11: Low Level Configuration Page
Modified button is pressed. The Read Selected button allows individual register reads, whereas the Read All button reads the status of all registers located in the register map. SLAU778A – June 2018 – Revised December 2018 DAC81408EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 12: High Level Configuration Page
Output Range: The DACx1408 provides various range options at individual channel level. This selection can be done on the GUI. DAC Outputs: The DAC outputs can be operated either in single-ended or differential modes. DAC81408EVM SLAU778A – June 2018 – Revised December 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 13: Schematic, Pcb Layout, And Bill Of Materials
Schematic, PCB Layout, and Bill of Materials This section contains the schematic diagram, printed circuit board layout, and a complete bill of materials for the DAC81408EVM. Board Schematic Figure 12. DAC81408EVM Board Schematic SLAU778A – June 2018 – Revised December 2018 DAC81408EVM Submit Documentation Feedback... -
Page 14: Dac81408Evm Pcb Components Layout
PCB Components Layout Figure 13 through Figure 17 show the layout of the components for the DAC81408EVM board. Figure 13. DAC81408EVM PCB Components Layout DAC81408EVM SLAU778A – June 2018 – Revised December 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 15: Top Layer
Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 14. Top Layer SLAU778A – June 2018 – Revised December 2018 DAC81408EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 16: Layer 2 - Ground Plane
Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 15. Layer 2 - Ground Plane DAC81408EVM SLAU778A – June 2018 – Revised December 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 17: Layer 3 - Power Plane
Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 16. Layer 3 - Power Plane SLAU778A – June 2018 – Revised December 2018 DAC81408EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 18: Bottom Layer
Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 17. Bottom Layer DAC81408EVM SLAU778A – June 2018 – Revised December 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 19: Dac81408 Evm Bill Of Materials
R1, R2, R12, R13, R14, 10.0k RES, 10.0 k, 1%, 0.1 W, 0603 RC0603FR-0710KL Yageo America R15, R16, R17 0603 SLAU778A – June 2018 – Revised December 2018 DAC81408EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 20 Green (RoHS & no Sb/Br) Square Basket Heatsink Heat Sink TO-3 500403B00000G Aavid Featuring Slanted Fins J4, J5, J6 Connector, SMA, TH 142-0701-231 Cinch Connectivity DAC81408EVM SLAU778A – June 2018 – Revised December 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 21 Changed connector.pin numbers in Table 5 to match the connector.pin numbers listed in Table 4 ................ • Changed connector numbers in Table 8; updated for clarity SLAU778A – June 2018 – Revised December 2018 Revision History Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
