3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION

The AdvancedFrame Kayak has a rigid frame in the bow and stern that enhances its
performance.

3.1 ASSEMBLY

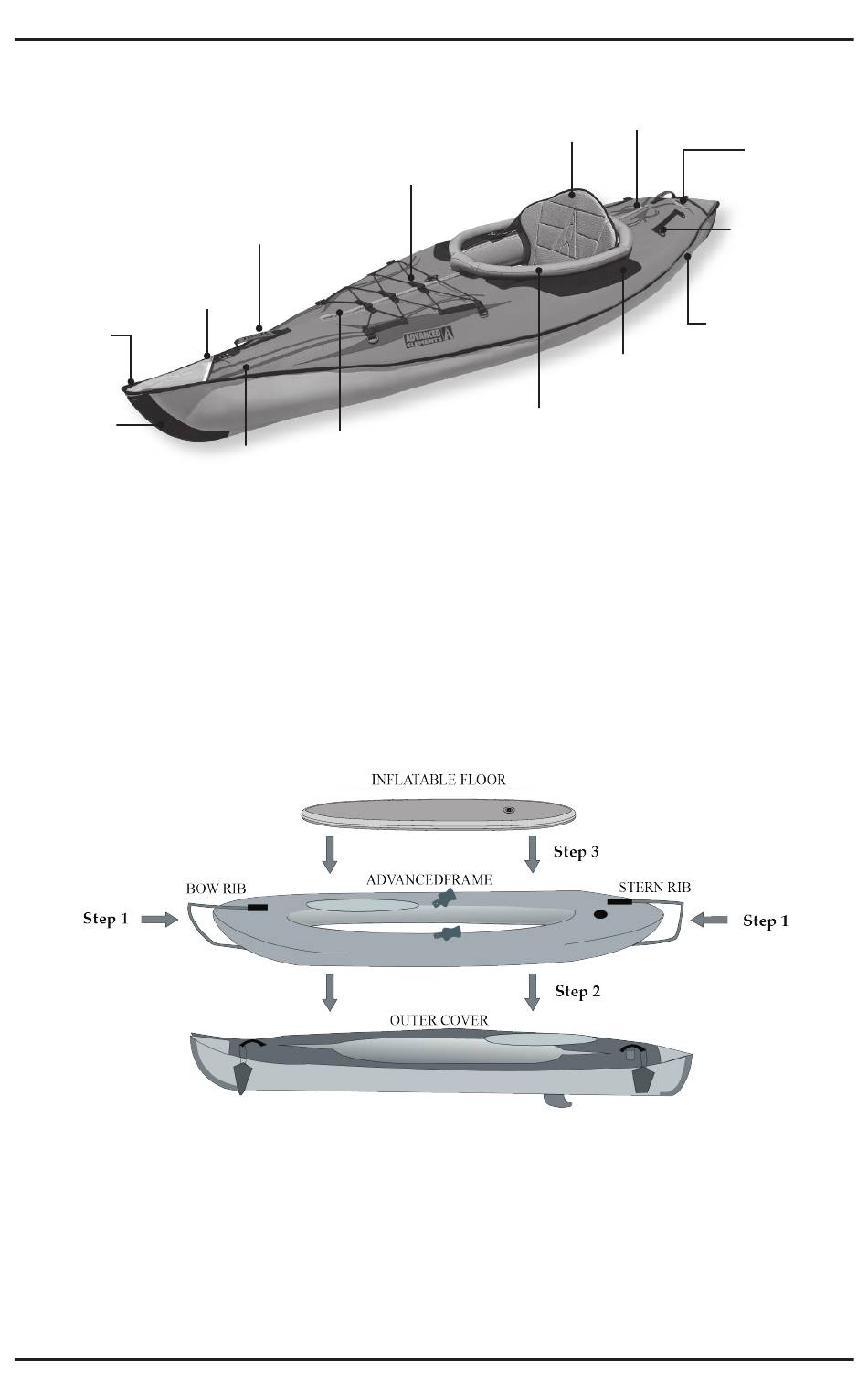

The illustration below shows the general assembly of the kayak. Your kayak comes from the
factory pre-assembled. The only assembly your should need to do is attach the adjustable seat.
1. Your AdvancedFrame kayak comes from the factory pre-assembled however should you take
it apart you will need to insert the aluminum Bow rib and the Stern Rib into the webbing slots
on the cover of the AdvancedFrame tube (while deflated).
2. Place the AdvancedFrame (with Ribs installed), into the Outer Skin, making sure that the air
valve is upright and at the back of the boat, and lined up with the opening on the outer cover
Chamber 1 and 2 are separate chambers but equalize in pressure because they are inside a
Molded Rubber
Carry Handle
Zipper Lips
Durable Double
Coated Fabric
AdvancedFrame
Adjustable High-
Back Seat
Bungee Deck
Lacing
Inflatable Coaming
for Spray Skirt
Attachment
®
Inflatable Kayak Owner's Manual
®
Storage
Compartment
Tie-Downs
Skeg/
Tracking Fin
Neoprene Paddle
Guard
Advanced
Elements
Spring
Valve
D-ring
