3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION

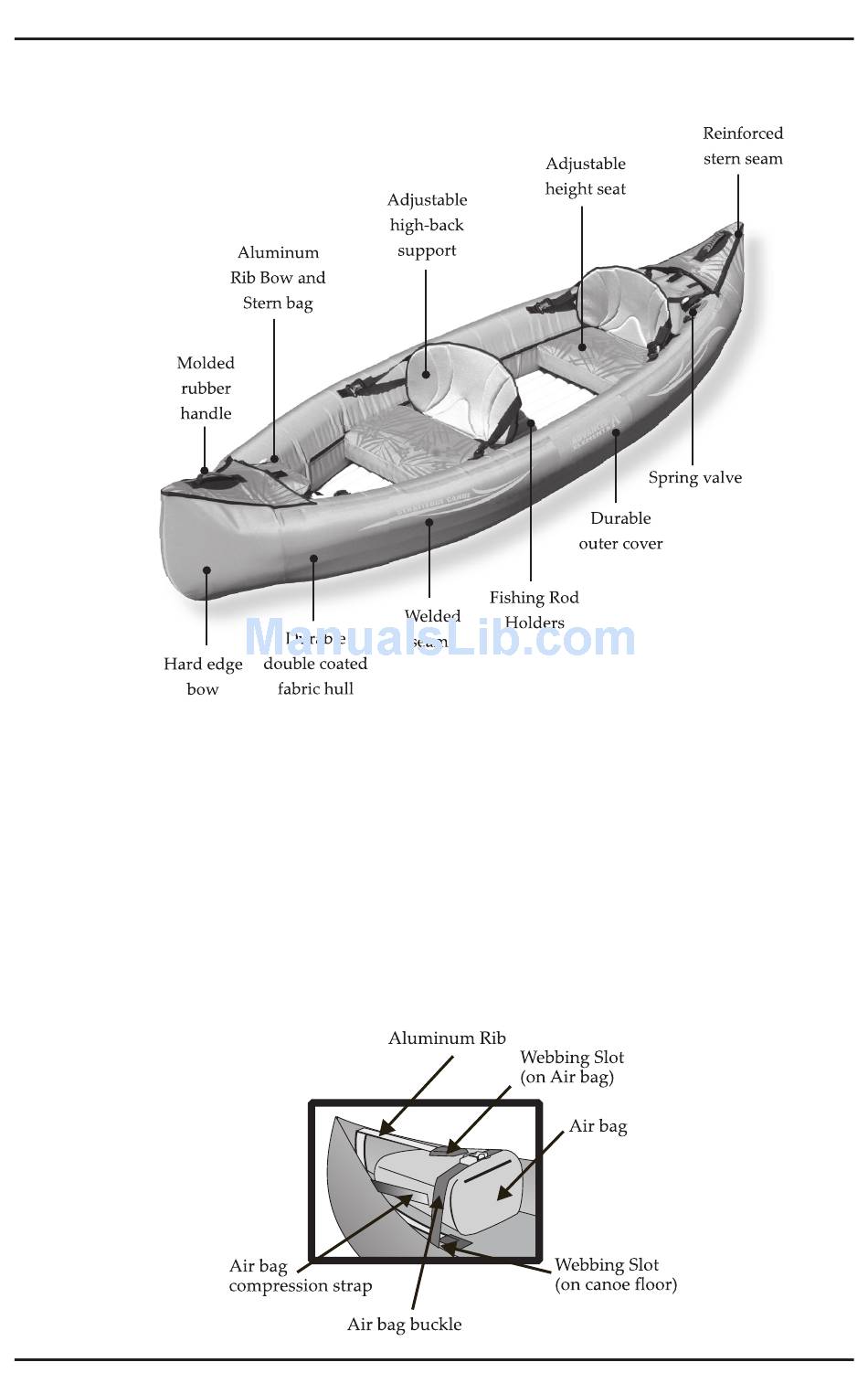

Bow and Stern Design
The bow and stern have removable ribs of high grade aluminum. When the chambers are
inflated these ribs press against the outer cover and form a high performance bow and stern.

3.1 Assembly

Your canoe comes from the factory pre-assembled. The only assembly you should need to do is
attach the adjustable seats.
1. Insert aluminum Bow rib and the Stern rib into the webbing slots on the StraitEdge™
air bags and webbing slots on the canoe floor, at the bow and stern.
StraitEdge™ Inflatable Canoe Owner's Manual
7
