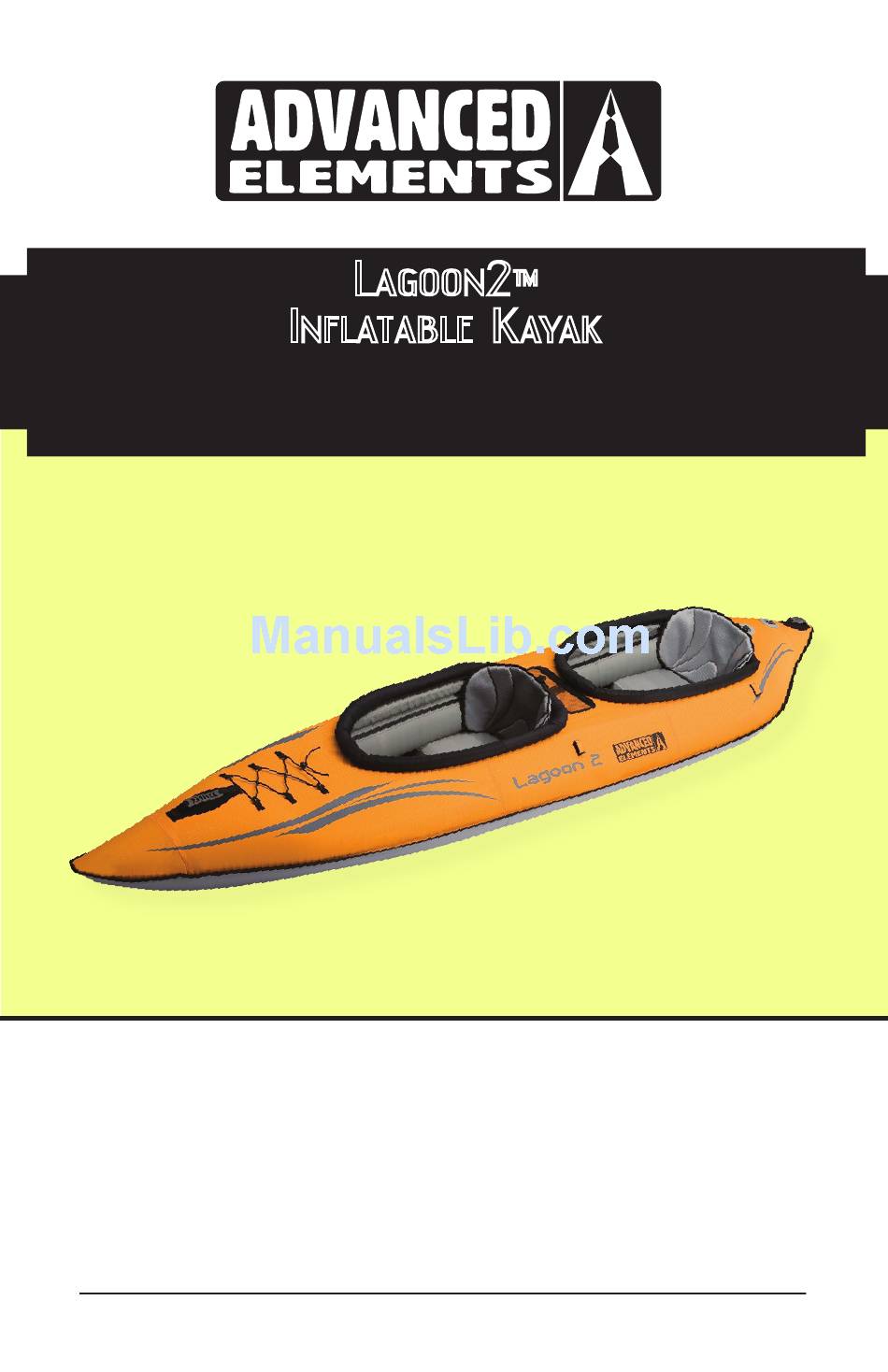

- Page 1 Inflatable Kayak Owner’s Manual MODEL AE1033 PATENTED AND OTHER PATENTS PENDING 1 OR 2 PERSON KAYAK IMPORTANT! PLEASE READ THIS MANUAL CAREFULLY BEFORE PROCEEDING. AFTER READING THIS MANUAL, SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. ADVANCED ELEMENTS, INC. 2011 REV 11-2010...
- Page 2 INTRODUCTION It is our goal, at Advanced Elements, to develop new and unique paddles- ports products that enhance our customers’ outdoor experience. Our focus is on designing and manufacturing “Inflatable kayaks with cutting edge tech- nology”. Our kayaks incorporate many different materials and components and deliver high performance at a very reasonable price.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Caution/Safety ..............4 1.1 Boating Safety ............5 2. Specification ..............6 2.1 Capacity ..............6 2.2 Features ..............7 3. Assembly/Inflating/Deflation Instruction ....7 3.1 Assembly ............... 7 3.2 Understanding Your Valves........ 8 3.3 Inflating ..............10 3.4 Over Inflation ............ -
Page 4: Caution/Safety
· READ OWNER’S INFORMATION PACKET PRIOR TO USING THIS PRODUCT. THE USER OF THIS PRODUCT ACKNOWLEDGES BOTH AN UNDERSTANDING AND AN ASSUMPTION OF THE RISK INVOLVED IN PADDLESPORTS. ADVANCED ELEMENTS, INC. TOLL FREE 866-262-9076 Please read this entire manual for additional safety information. Please pay close attention to items... -
Page 5: Boating Safety
Lagoon2™ Inflatable Kayak Owner’s Manual 1.1 Boating Safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates an imminently hazardous situation which, if not avoided, will DANGER result in death or serious injury or... -
Page 6: Specification
PERSON OR 350 LBS. 350 LBS PERSONS, GEAR PRESSURE = 2.0 psi (main chambers) MANUFACTURER: ADVANCED ELEMENTS, INC. CONCORD, CA USA 94524 MODEL AE1033 - LAGOON2™ KAYAK THIS BOAT COMPLIES WITH NMMA STANDARDS OF EFFECT ON THE DATE OF CERTIFICATION NATIONAL MARINE MANUFACTURES ASSN. -
Page 7: Features
Lagoon2™ Inflatable Kayak Owner’s Manual 2.2 Features SPECIAL FEATURES: Design: Inner tube covers add stiffness and abrasion protection. Rigid Bow and Stern: Built-in rigid panels define the bow and stern and improve tracking. Durable and Light: Unique outer cover provides durability in a lightweight design. Easy to Set Up: New Twist valves and high flow Spring valves allow for quick setup time. -
Page 8: Understanding Your Valves
The screw-on Spring Valve Adaptor was designed to enable the pump hose to securely connect to the Advanced Elements Spring Valve without falling off during inflation, making inflation easier. The valve adaptor also has a semi-circle protrusion that depresses the valve stem, opening the valve slightly to allow pumps with pressure gauges to take a constant reading. - Page 9 Special Note: The Spring Valve Adaptor comes with all current Advanced Elements pumps, with the exception of the 12v inflator, and will attach to any Advanced Elements pump that does not have the adaptor already included, with the exception of the 12v inflator. The Spring Valve Adaptor will also attach to some other manufacturer’s pumps, but you must check the...
-
Page 10: Inflating
Diagram of Inflation Chambers 3.3 Inflating IMPORTANT: Inflate your kayak in the following order. Failure to follow these instructions may cause damage to your kayak. Do not over inflate. Be sure to read directions on operating the spring valves and twist valves located in the section “Understanding your valves”. Before inflating please be sure that the foam floor is positioned inside the kayak seating area, underneath the side inflation tubes. -
Page 11: Over Inflation
Lagoon2™ Inflatable Kayak Owner’s Manual 3.4 Over Inflation CAUTION: Water temperature and weather will affect the air pressure of the kayak. In cold weather and water your kayak will lose some pressure. If this occurs, you may want to add a bit more air to the kayak to improve performance. -
Page 12: Guidelines For Usage
4. GUIDELINES FOR USAGE Paddlesports can be very dangerous and physically demanding. The user of this product should understand that participation in paddlesports may involve serious injury or death. Observe the following safety standards whenever using this product. The user of this product acknowledges both an understanding and an assumption of the risk involved in paddlesports. -
Page 13: Repairs
Lagoon2™ Inflatable Kayak Owner’s Manual 6. REPAIRS All kayaks come with a repair kit that includes glue and several patches. This should remain with the kayak in the event that you may need it. If service is required for your kayak, please call 866-262-9076 for assistance. -
Page 14: Troubleshooting
7. TROUBLESHOOTING PROBLEM SOLUTION The tube just needs to be adjusted. When kayak is fully deflated try The tube is kinked or adjusting the position of the tube inside of the outer shell. bent. The fin is bent. After inflating the kayak, turn upside down and leave out in sun for ap- proximately ten minutes. - Page 15 Lagoon2™ Inflatable Kayak Owner’s Manual PADDLING NOTES: It is alway a good idea to keep nots of your paddling experiences. Your notes can serve as a reminder of what to look out for, as well as what gear to bring along, and what conditions are like. DATE TIME LOCATION...
- Page 16 NOTES:...
-
Page 17: Statement Of Origin
Note: If your state requires the licensing of this boat, please use the form below. If you need any assistance filling out this form, please contact Advanced Elements Customer Service Department. MANUFACTURER’S STATEMENT OF ORIGIN FOR A VESSEL SOLD IN THE STATE OF_____________________________________... -
Page 18: Declaration Of Conformity
Declaration of Conformity (according to ISO/IEC Guide 22 and EN 45014) M anufacturer’s Name: Advanced Elements, Inc. M anufacturer’s Address: P.O. Box 5128 Concord, CA 94524 d eclares, that the product: P roduct Name: Lagoon2™ Kayak M odel Number (s): A E1033 to which this declaration relates, meets the essential health and safety... -
Page 19: Warranty And Registration
For warranty service, contact Advanced Elements, Inc. Advanced Elements, Inc shall inspect all warranty claims and in the event of a defect, repair or replace the defective part or entire item, at its option. The purchaser must, before return of a defective product, obtain from Advanced Elements, Inc, a return authorization number and return center address. - Page 20 If you would like a catalog of our latest products please visit our website at www.advancedelements.com or call Toll Free 866-262-9076 PLEASE COMPLETE THE OTHER SIDE OF THIS WARRANTY REGISTRATION CARD AND RETURN TO ADVANCED ELEMENTS, INC. PLACE STAMP HERE P.O. Box 5128...
