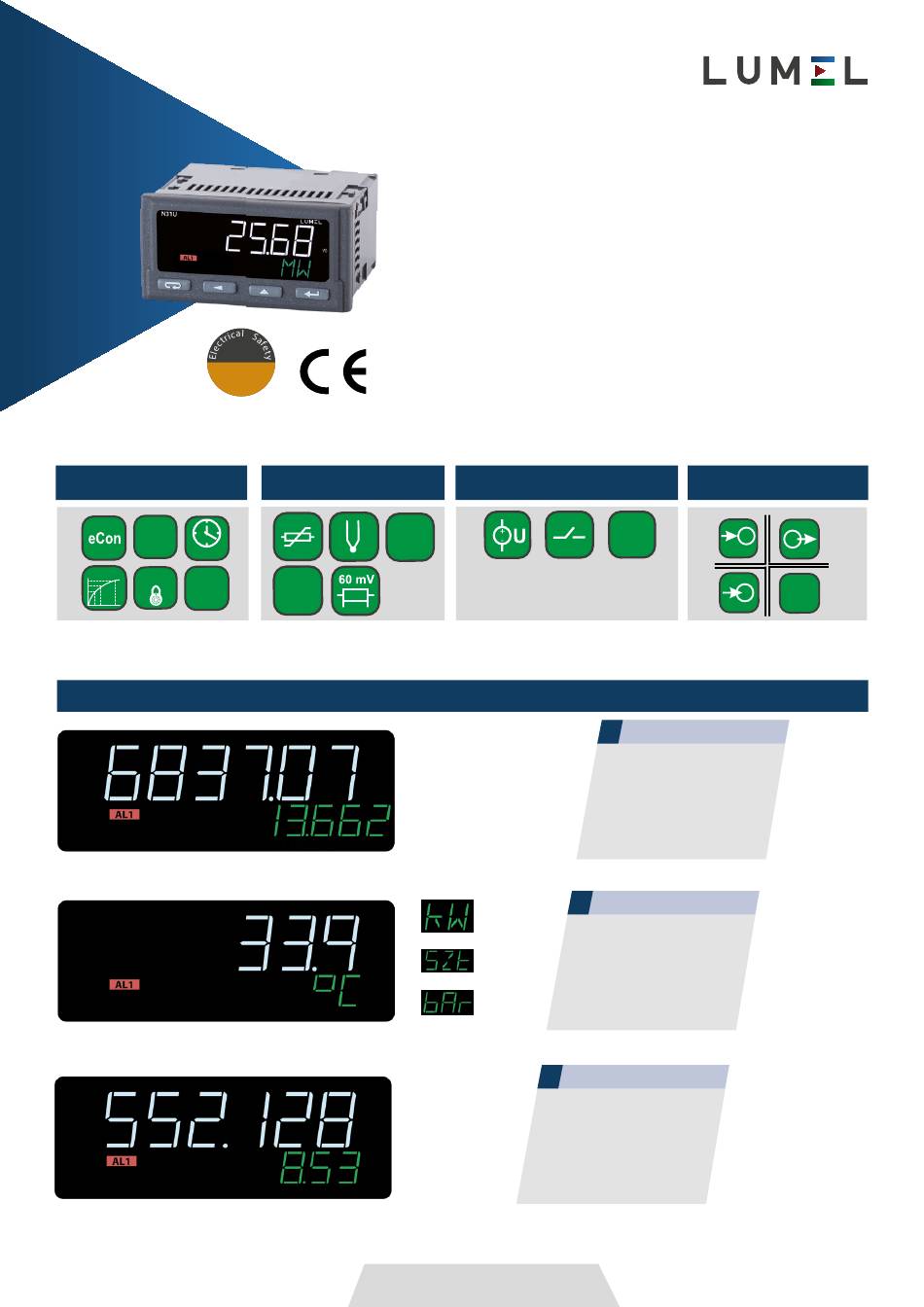

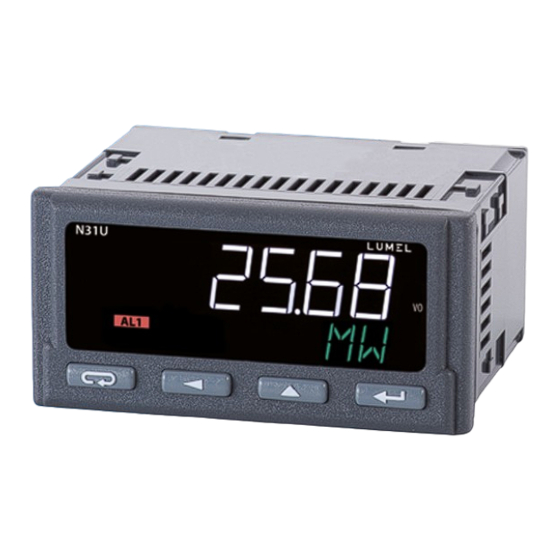

N31U
Digital Panel Meter
• Multi-purpose input for measuring: temperature, resistance, standard signals and potentiometer.
• Programmable unit of measured quantity
• Universal supplying votalge: 24 V...230 V a.c./d.c.
• Two-line LCD display with high contrast and built-in backlighting.
• Possibility of displaying the measured value and time simultaneously or an uncalculated quantity or unit.
• Meter programming from keyboard or through the RS-485 interface by means of the free eCon software.
• 1 alarm output with signalling on LED diodes, working in 7 different modes.
• Storage of minimal and maximal values for all measured quantities.
• Supply of object transducers.
• 32-point individual characteristic for the measured value.
• Mathematical functions for converting the measured value.

INPUTS

-10..10
V
-20..20
mA

DATA VISUALISATION

www.lumel.com.pl

OUTPUTS

GALVANIC ISOLATION

1x
RS
485
Two-line display.
Simultaneous preview of the meas-
ured value (top line) and the input
signal not scaled (bottom line).
Programmable measurement unit
chosen from 56 variants available
in the menu.
Preview of current time
on the bottom line of the display.
Real-time clock with automatic winter/
summer time change function.
