www.ti.com
User's Guide
DRV824x_DRV814x-Q1EVM User's Guide
This document is provided with the DRV824x-Q1EVM and DRV814x-Q1EVM customer evaluation module
(EVM) as a supplement to the Automotive DRV824x-Q1 and DRV814x-Q1 Motor Driver data sheets. This user's
guide details the hardware implementation of the EVM and how to install the software packages.
1
Introduction.............................................................................................................................................................................2
1.1 Overview............................................................................................................................................................................
2 Evaluation Hardware Overview.............................................................................................................................................
2.1 Connections Overview.......................................................................................................................................................
2.2 Connection Details.............................................................................................................................................................
Indicators..................................................................................................................................................................12
2.4 Headers and Connectors (Hardware Device Variant)......................................................................................................
2.5 Headers and Connectors (SPI variant)............................................................................................................................
3 EVM GUI Control Application..............................................................................................................................................
3.1 MSP430 FET Drivers.......................................................................................................................................................
3.2 Cloud-based GUI.............................................................................................................................................................
3.3 Local Installation..............................................................................................................................................................
Operation...............................................................................................................................................................17
4.1 Hardware Setup...............................................................................................................................................................
4.2 Launching the DRV824x_DRV814x-Q1EVM GUI Application.........................................................................................
5 Revision History...................................................................................................................................................................
Trademarks
®
Mac
is a registered trademark of Apple Inc.
Linux
®
is a registered trademark of Linus Torvalds.
Windows
®
is a registered trademark of Microsoft Corporation.
All trademarks are the property of their respective owners.
SLVUC46D - MARCH 2021 - REVISED NOVEMBER 2023
Submit Document Feedback
ABSTRACT
Table of Contents
Application.................................................................................................19
Copyright © 2023 Texas Instruments Incorporated
Table of Contents
DRV824x_DRV814x-Q1EVM User's Guide
2
3
3
3
13
13
14
14
15
16
17
17
25
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DRV814x-Q1EVM
Summary of Contents for Texas Instruments DRV814x-Q1EVM
-
Page 1: Table Of Contents
DRV824x_DRV814x-Q1EVM User's Guide ABSTRACT This document is provided with the DRV824x-Q1EVM and DRV814x-Q1EVM customer evaluation module (EVM) as a supplement to the Automotive DRV824x-Q1 and DRV814x-Q1 Motor Driver data sheets. This user's guide details the hardware implementation of the EVM and how to install the software packages. -
Page 2: Introduction
This document is designed to be used as a startup guide and to supplement the DRV824x-Q1EVM and DRV814x-Q1EVM (“EVM”). The scope of this document is to provide the user with a guide to evaluate the DRV824x-Q1 and/ or DRV814x-Q1 device using a Graphical User Interface (GUI). The GUI application is required to control the EVM. -
Page 3: Evaluation Hardware Overview
2.2 Connection Details Table 2-1 for a brief comparison of both the DRV824x-Q1EVM and DRV814x-Q1EVM in the VQFN HotRod™ package. The 28-pin leaded package (HVSSOP or HTSSOP) version of EVM leverages much of the same design and is also covered by this document. From a firmware and GUI perspective, the two package options are interchangeable. - Page 4 Evaluation Hardware Overview www.ti.com Table 2-1. DRV814x-Q1EVM and DRV824x-Q1EVM Comparison DRV814x-Q1EVM DRV824x-Q1EVM • H-bridge/ dual independent half-bridge outputs in VQFN • Single half-bridge output in VQFN HotRod™ package HotRod™ package • SPI and Hardware control variants • SPI and Hardware control variants...

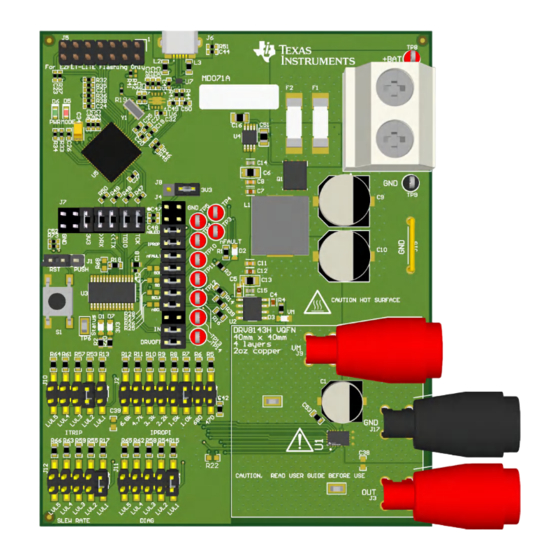

- Page 5 2.2.1 Common Connectors and Headers Across all EVM Variants Figure 2-1 shows a larger view of the DRV824x-Q1EVM. Because the DRV814x-Q1EVM shares much of the same design, only the DRV824x-Q1EVM is referenced. The micro-USB connection at the top of the EVM is used for GUI communications, and MCU firmware updates.
- Page 6 EVM testing, TI recommends to position the jumper settings back to pins 1 and 2. Figure 2-2. MCU Reset and User Button DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 7 EVM and GUI, as well as firmware programming (some components have been removed from the picture for clarity). The EZFET_LITE (based on the Texas Instruments MSP430F5528) is programmed at the factory with firmware that implements UART and JTAG over USB.
- Page 8 EVM associated with the main supply input powering the DRV824x-Q1 or DRV814x-Q1 device, and the associated loads. Starting from the upper-left, and working clockwise around the image: • Supply reverse polarity protection. The Texas Instruments LM74610QDGKRQ1 drives a Texas Instruments CSD18513Q5A 40 V 100 A N-channel MOSFET. • Fuses.
- Page 9 EVM. IPROPI Figure 2-5 shows the header with user selectable R values. IPROPI Figure 2-5. R Header IPROPI SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 10 When interfacing with an external control design, remove the associated 0-ohm resistors immediately adjacent to the silk screen label. Note PH/IN2 signal is not present on DRV814x-Q1EVM variants. Refer to the EVM schematic for more details. Figure 2-6. DRV824x-Q1EVM Signal and Control Header 2.2.7 Device Signal Test Points...
- Page 11 TP17 DRVOFF EN/IN1 Test Point number DRV8144 nSLEEP IPROPI nFAULT SDO/NC TP10 SDI/ITRIP TP11 SCLK/SR TP12 nSCS/DIAG TP13 TP14 DRVOFF SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 12: Led Indicators
JTAG interface. EZFET_LITE power indicator (must be active for GUI control). 3.3 V for MCU (must be active for GUI control). DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 13: Headers And Connectors (Hardware Device Variant)
The and DRV824xS-Q1 and DRV814xS-Q1 SPI device variants omit all headers associated with the hardware variant described in the previous section. SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 14: Evm Gui Control Application
3 EVM GUI Control Application The GUI application is written with Texas Instruments’ GUI Composer, and can be run directly from a Chrome- based web browser, or installed onto your computer. Because GUI Composer apps are written with a NodeJS back end, the GUI application is cross-platform compatible by design. -
Page 15: Cloud-Based Gui
Hardware setup and operation of the GUI is the same as the desktop version, and is consolidated in the following Section SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 16: Local Installation
5. The GUI application is now ready to run on the local machine after completing the hardware setup in the next section. DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 17: Evm Gui Operation
Note The ‘S’ and ‘H’ part number decorators – these indicate either the SPI or Hardware variant of the device. SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 18 If the EVM GUI does not register a successful connection after multiple attempts do a firmware update and then select an EVM variant for connecting using the GUI application. Figure 4-2. Successful EVM Connection DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 19: Using The Drv824X_Drv814X-Q1Evm Gui Application
"Off " mode enables a manual read. Auto-read set to "off" is helpful for reducing SPI chatter when using a logic analyzer or performing EMC measurements. Figure 4-4. SPI device variant Register Map Page SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 20 The high side connection connects the load between VM and OUT while the low side connection connects the load between OUT and GND as can be seen in Figure 4-6. DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 21 With the DRV824x devices, the GUI allows to switch between high side and low side load connection only using the Independent Half-Bridge mode selection pop-up window. SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 22 PH/IN2 are selected using the switches in the GUI. The pull up can take a few seconds, pull down resistors, DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 23 The IPROPI current scaling factor for the driver device can be found in the data sheet. SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 24 EVM connection is made and if a new update becomes available, then the update can be seen in Figure 4-4. Figure 4-9. EVM Firmware Update Pop-up DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 25: Revision History
The user can update the EVM to the latest firmware by simply going to File -> Program Device from either the EVM Home Page or the Driver Control page as shown in Figure 4-10. Figure 4-10. Update Firmware SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 DRV824x_DRV814x-Q1EVM User's Guide Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 26 ..................19 • Bullet Points for Passive/Active Diagnostics, Fault and Bridge Current............• Updated Image and Instructions in Updating Firmware Section..............DRV824x_DRV814x-Q1EVM User's Guide SLVUC46D – MARCH 2021 – REVISED NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
