  • Page 1 ’ peratOr s manual DOZER BLADE City Ranger 2200...

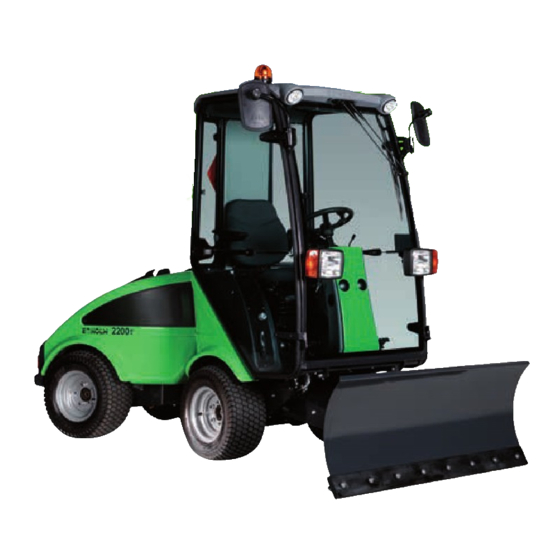

  • Page 2 Introduction Dear Customer Congratulations with your Egholm product. The City Ranger 2200 is a Danish designed and manufactured product which offers a very flexible way of maintaining outdoor areas. Optimal use of your City Ranger 2200 Dozer Blade To ensure the optimal performance of your City Ranger 2200 Dozer Blade, please read this operator’s manual carefully before starting to use the machine.

  • Page 3: Table Of Contents

    5.1 Spare parts - City Ranger 2200 Dozer Blade ....... .

  • Page 4: General Information

    Do not drive the machine in a place where it can slide, tip or roll. Do not drive on slopes with an incline of more than 10°. (Picture 3) Do not drive on slopes with an incline of more than 10° Operator's Manual City Ranger 2200 Dozer Blade...

  • Page 5: Ec Declaration Of Conformity For Machinery

    +45 97 81 12 05 Telephone: herby declares that Machine: Dozer Blade 22DZ13 Type: · has been manufactured in conformity with the provisions of the Machinery, Directive 2006/42/EU Place: Lemvig Date: Signature: Knud Olsen, Senior Engineer Operator's Manual City Ranger 2200 Dozer Blade...

  • Page 6: Technical Data

    66 kg Clearing width: 1,300 mm Ground clearance below scraping edge, lifted: 420 mm Ground clearance below skids, lifted: 370 mm Adjuster discs per skid: Attention: Specifications may be changed without prior notice Operator's Manual City Ranger 2200 Dozer Blade...

  • Page 7: Assembly / Disassembly

    5. Lock the Dozer Blade in place with the locking handle on the A-frame. (Picture 3) The locking handle can only be engaged when the machine has been stopped. Disassembly: Attaching Follow the procedure for fitting in reverse order. Locking Operator's Manual City Ranger 2200 Dozer Blade...

  • Page 8: Important Before Start-Up

    (Picture 4) The Dozer Blade will now adjust to ground conditions. To adjust the weight distribution read the operator's manual for the basic City Ranger 2200 machine. 4. Turn the Dozer Blade by moving the joystick to the Joystick left or to the right.

  • Page 9: Adjustment

    (Picture 3) Adjuster discs Remaining adjuster discs 5. Fit the skid and put the remaining adjuster discs on the skid above the scraper guard. 6. Put the locking ring back on the skid. Operator's Manual City Ranger 2200 Dozer Blade...

  • Page 10: Service And Maintenance

    3. Remove the nuts and bolts holding the scraper edge and remove the scraper edge. (Picture 3) 4. Fit the new scraper edge by reversing the procedure. New scraper edges and skids can be ordered from an authorised Egholm distributor. Operator's Manual City Ranger 2200 Dozer Blade...
  • Page 11 When the Dozer Blade is to be stored outside the season, it is recommended to remove any loose paint and to repaint any damaged areas. It is recommended the equipment is greased / sprayed with protective lubricant. Operator's Manual City Ranger 2200 Dozer Blade...

  • Page 12: Conditions

    The warranty period for the materials and manufacture of this Dozer Blade is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm A/S will carry out the necessary repairs at no charge to the customer, including materials and working hours, in accordance with the terms and conditions listed below.

  • Page 13: Complaint

    1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site. 2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to an approved scrap merchant. Operator's Manual City Ranger 2200 Dozer Blade...

  • Page 14: Spare Parts

    Spare parts 5.1 Spare parts - City Ranger 2200 Dozer Blade 02200060 Spring 09724490 Rubber scraping edge 61200898 Skids 90501921 Break joint 01702020 Removable bearing/Break joint Operator's Manual City Ranger 2200 Dozer Blade...
  • Page 15 Notes Operator's Manual City Ranger 2200 Dozer Blade...
  • Page 16 Egholm A/S Transportvej 27 DK-7620 Lemvig T. +45 97 81 12 05 F. +45 97 81 12 10 www.egholm.eu info@egholm.dk 70101281-01 EN...
