INSTALLATION
4.1.
CONNECTING MOUNTING BRACKETS

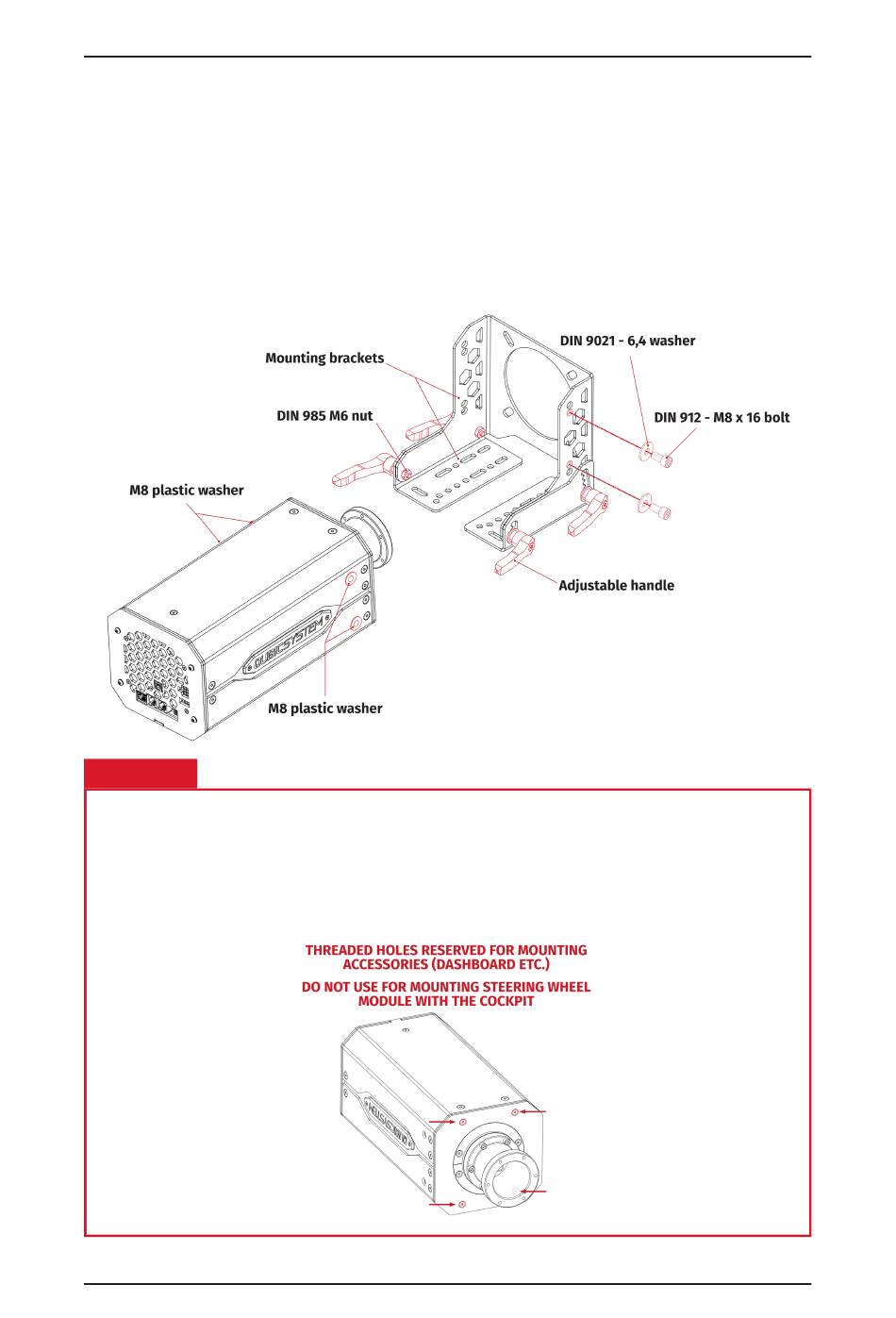

In order to connect steering wheel module with mounting brackets connect it using
side mounting points with M8 plastic washer inserted on both side as shown on the
illustration:
WARNING
DO NOT
use front threaded holes to mount the steering wheel module to the
cockpit. Front mounting holes are reserved for mounting additional accessories.
Unscrew 2 x cover bolts and use ISO 7380-1 - M6 x 20 bolts with DIN 125 - A 6,4
washers for mounting accessories.
