Operator's Manual
Introduction

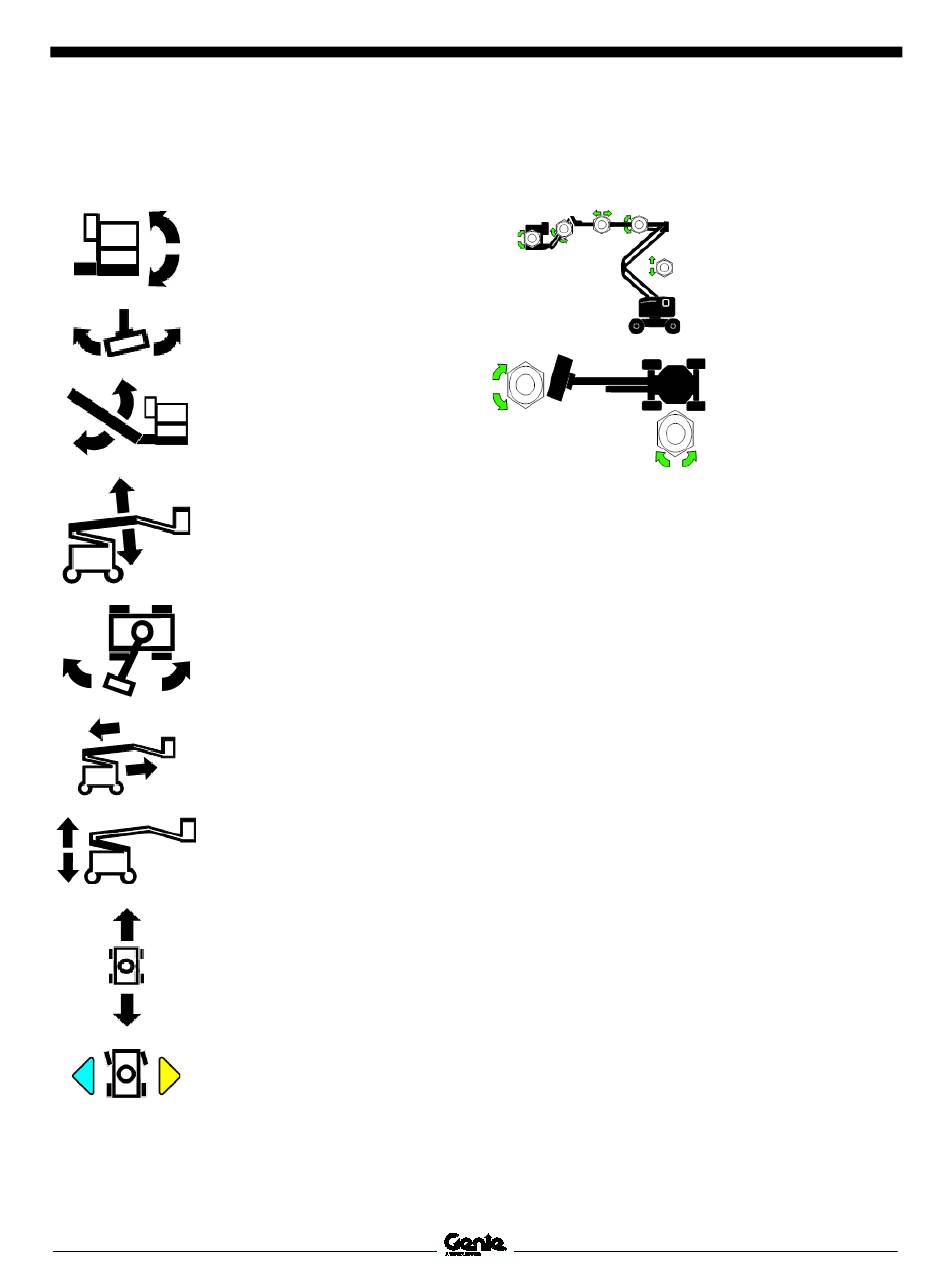

Platform controls symbology and related
machine movement:
Platform level swtich
Platform rotate switch
Jib boom up/down
Primary boom up/down
Turntable rotate
Primary boom extend/retract
switch
Secondary boom up/down
Drive forward/reverse
Steer right/left
2
Ground controls symbology and related
machine movement:
Sequential functions and movement:
Drive and steer.
•
Interlocked functions:
Elevated drive speed.
•
Elevated drive in an off-level condition.
•
Drive enable when the boom is rotated past
•
the non-steer wheels.
All platform and ground controls.
•
Limitations of use:
The intended use of this machine is to lift
•
personnel, including tools, and materials to an
aerial work site.
Do not elevate the platform unless the machine
•
is on firm level ground.
Stability enhancing means:
Foam filled tires (if equipped).
•
Restricted operating envelope:
1,000 lbs/454 kg platform capacity. (if
•
equipped)
Z ® -45 XC ™
First Edition • Second Printing
Platform level, jib boom
up/down, primary boom
extend/retract, primary
boom up/down, and
secondary boom
retract/lower.
Turntable rotate and
platform rotate
Part No. 1301594GT
