Page 1 Service and Repair Manual Serial Number Range -62/40 ® from Z6215A-101 This manual includes: to Z6216N-2999 Repair procedures from Z6216D-101 to Z6216D-149 Fault Codes from Z6216M-101 Electrical and To Z6216M-399 Hydraulic Schematics from Z62D-150 from Z62H-3000 from Z62M-400 For detailed maintenance procedures, refer to the appropriate Maintenance Manual for your machine.
Page 2: Find A Manual For This Model
Copyright © 2015 by Terex Corporation 1268555GT Rev B1, June 2022 First Edition, Second Printing Genie and "Z" are registered trademarks of Terex South Dakota, Inc. in the U.S.A. and many other countries. "TraX" is a trademark of Terex South Dakota, Inc.
Page 3: Revision History
June 2022 Service and Repair Manual Introduction Revision Hist ory Revision History Revision Date Section Procedure / Page / Description 9/2015 Initial Release 9/2016 Introduction Serial Number Legend 11/2017 Specifications Machine Specifications 2/2020 Specifications Hydraulic Component Specifications 5/2020 All Sections Add Deutz TD 2.2 L3 Engine Fault Codes Control System Fault Codes...
Page 4: Serial Number Legend
Service and Repair Manual June 2022 Introduction Serial Number Legend To August 31, 2016 1 Model 4 Sequence number 2 Model year 5 Serial number (stamped on chassis) 3 Facility code 6 Serial label (located under cover) From September 1, 2016 1 Model 4 Serial number (stamped on chassis) 2 Facility code...
Page 5: Safety Rules
June 2022 Service and Repair Manual Safety Rules Gene ral Saf ety Rul es Secti on 1 Safety Rul es Danger Failure to obey the instructions and safety rules in this manual and the appropriate Operator's Manual on your machine will result in death or serious injury.
Page 6 Service and Repair Manual June 2022 Safety Rules Personal Safety Workplace Safety Any person working on or around a machine Any person working on or around a machine must be aware of all known safety hazards. must be aware of all known safety hazards. Personal safety and the continued safe Personal safety and the continued safe operation of the machine should be your top...
Page 7: Table Of Contents
June 2022 Table of Contents Introduction Introduction ...................... ii Important Information ..................ii Find a Manual for this Model ................ii Revision History ....................iii Serial Number Legend ..................iv Section 1 Safety Rules ...................... v General Safety Rules ..................v Section 2 Specifications ....................
Page 8 June 2022 Table of Contents Section 3 Repair Procedures ..................19 Introduction ...................... 19 Platform Controls ................... 21 1-1 ALC-500 Circuit Board ................21 1-2 Joysticks ....................22 How to Adjust the Joystick Threshold Setting ..........22 How to Adjust the Joystick Max-out Setting ..........23 How to Adjust the Joystick Ramp Rate Setting ..........
Page 9 June 2022 Table of Contents Engines ......................43 6-1 RPM adjustment - Deutz Models..............43 6-2 RPM adjustment - Perkins Models .............. 43 6-3 Flex Plate ....................43 How to Install the Flex Plate ................ 44 How to install the Pump and Bell Housing Assembly ........46 6-4 Ford MSG-425 Engine Fault Codes ............
Page 10 June 2022 Table of Contents Turntable Rotation Components ..............80 9-1 Turntable Rotation Assembly ..............80 Axle Components................... 82 10-1 Oscillating Axle Cylinders ................. 82 Track Components ..................83 11-1 Track Assembly ..................83 Generators...................... 87 12-1 Hydraulic Generator ................. 87 Section 4 Fault Codes ....................
Page 11 June 2022 Table of Contents Section 5 Schematics ....................130 Introduction ....................130 Electrical Symbol Legend ................131 Hydraulic Symbols Legend ................132 Electrical Component and Wire Color Legends ..........133 Ford Engine Relay Layout ................137 Engine Relay Layout - Deutz TD 2.2 L3, D 2.9 L4 and Perkins 404F-22 ..138 Limit Switch Legend ..................
Page 12 June 2022 Table of Contents Hydraulic Schematics .................. 173 Hydraulic Schematic, 2WD - 2 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484, from Z62M-101] ..... 174 Hydraulic Schematic, 2WD - 2 Wheel Steer Models [from serial numbers Z62D-547, Z62H-4485] .......... 175 Hydraulic Schematic, 4WD - 2 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484, from Z62M-101] .....
Page 13 June 2022 Table of Contents Electrical Schematic, Deutz D 2.9 L4 Models (ANSI/CSA) ......210 Ground Control Box Terminal Strip Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA) ............214 Ground Control Box Switch Panel Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA) ............215 Platform Control Box Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA) ..
Page 14 June 2022 Table of Contents Electrical Schematics – AS and CE Models ..........245 Electrical Schematic, Ford MSG-425 EFI Models (AS/CE) ......246 Ground Control Box Terminal Strip Wiring Diagram, Ford MSG-425 EFI Models (AS/CE) ............250 Ground Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (AS/CE) ............
Page 15: Specifications
June 2022 Service and Repair Manual Specifications Secti on 2 Specificatio ns Machine Specifications Machin e Specific atio ns Track Components Track material Rubber Tires and Wheels Tensioning system Pressurized grease Tire size (Rough terrain) 355/55D625 Weight (each) 1500 lbs Tire weight, new foam-filled 415 lbs 680 kg...
Page 16: Performance Specifications
Service and Repair Manual June 2022 Specifications Perfor man ce Speci ficatio ns Performance Specifications Hydraulic Oil Specific ations Hydraulic Oil Specifications Drive speed, maximum Hydraulic Fluid Specifications stowed position Genie specifications require hydraulic oils which are 2WD models designed to give maximum protection to hydraulic 3.0 mph systems, have the ability to perform over a wide 4.8 km/h...
Page 17 June 2022 Service and Repair Manual Specifications Chevron Rando HD Premium Oil Do not top off with incompatible hydraulic fluids. Hydraulic fluids MV Fluid Properties may be incompatible due to the differences in base additive ISO Grade chemistry. When incompatible Viscosity index fluids are mixed, insoluble materials may form and deposit...
Page 18 Service and Repair Manual June 2022 Specifications Chevron 5606A Hydraulic Oil Petro-Canada Environ MV 46 Fluid Properties Fluid Properties ISO Grade ISO Grade Viscosity index Viscosity index Kinematic Viscosity Kinematic Viscosity cSt @ 200°F / 100°C cSt @ 200°F / 100°C cSt @ 104°F / 40°C 15.0 cSt @ 104°F / 40°C...
Page 19: Hydraulic Component Specifications
June 2022 Service and Repair Manual Specifications UCON Hydrolube HP-5046 Fluid Hydraulic Com pon ent Sp ecificati ons Hydraulic Component Properties Specifications ISO Grade Drive Pump Viscosity index Type: bi-directional variable displacement piston pump Kinematic Viscosity Flow rate @ 2500 rpm 32.4 gpm cSt @ 149°F / 65°C 122.6 L/min...
Page 20: Manifold Component Specifications
Service and Repair Manual June 2022 Specifications Manif old Co mpo nent Specifica tions Manifold Component Function manifold Specifications System relief valve pressure, 3000 psi maximum 207 bar Plug torque Platform level relief valve 2800 psi pressure 193 bar SAE No. 4 13 ft-lbs / 18 Nm Steer flow regulator 3.5 gpm...
Page 21: Ford Msg-425 Efi Engine Specifications
June 2022 Service and Repair Manual Specifications For d MSG -42 5 EFI En gine S pecifica tions Ford MSG-425 EFI Engine Fuel requirement For fuel requirements, refer to the engine Operator Displacement 153 cu in Manual for your engine. 2,5 liters Ignition system Number of cylinders...
Page 22: Deutz D2011 L03I Engine Specifications
Service and Repair Manual June 2022 Specifications Deutz D2 011 L03i E ngine Specific ations Deutz D2011 L03i Engine Oil temperature switch Temperature switch point 300°F Displacement 142 cu in 149°C 2.33 liters Oil pressure switch Number of cylinders Oil pressure switch point 22 psi Bore and stroke 3.7 x 4.4 inches...
Page 23: Deutz Td2011 L04I Engine Specifications
June 2022 Service and Repair Manual Specifications Deutz TD20 11 L 04i Engi ne Sp ecificatio ns Deutz TD2011 L04i Engine Oil temperature switch Installation torque 8 - 18 ft-lbs Displacement 220.9 cu in 11 - 24 Nm 3.62 liters Temperature switch point 275°F Number of cylinders...
Page 24: Deutz Td 2.2 L3 Engine Specifications
Service and Repair Manual June 2022 Specifications Deutz TD 2. 2 L3 E ngine Specific ations Deutz TD 2.2 L3 Engine Oil temperature switch Installation torque 8 - 18 ft-lbs Displacement 134 cu. in 11 - 24 Nm 2,2 liters Temperature switch point 257°F Number of cylinders...
Page 25: Deutz D 2.9 L4 Engine Specifications
June 2022 Service and Repair Manual Specifications Deutz D 2.9 L 4 Engi ne Spe cificatio ns Deutz D 2.9 L4 Engine Oil pressure switch Oil pressure switch point 20 psi Displacement 177 cu in 1.4 bar 2.9 liters Engine coolant Number of cylinders Capacity 10 quarts...
Page 26: Perkins 404D-22 Engine Specifications
Service and Repair Manual June 2022 Specifications Perkins 4 04D- 22 En gine Sp ecificati ons Perkins 404D-22 Engine Oil pressure sending unit Oil pressure switch point 14.2 psi Displacement 134 cu in 1 bar 2.2 liters Fuel injection system Number of cylinders Injection pump make Zexel...
Page 27: Perkins 404F-22 Engine Specifications
June 2022 Service and Repair Manual Specifications Perkins 4 04 F-2 2 Engin e Specific ation s Perkins 404F-22 Engine Oil pressure sending unit Oil pressure switch point 14.2 psi Displacement 134 cu in 1 bar 2.2 liters Fuel injection system Number of cylinders Injection pump make Zexel...
Page 28: Machine Torque Specifications
Service and Repair Manual June 2022 Specifications Machin e T orq ue Sp ecificati ons Machine Torque Specifications TRAX To rque Specific ations TraX Torque Specifications ™ Platform rotator Sprocket to hub adapter fasteners 1-8 center bolt, GR 5 3/4 -10 nuts, GR 8, dry 317 ft-lbs 430 Nm Lubricated...
Page 29: Hydraulic Hose And Fitting Torque Specifications
June 2022 Service and Repair Manual Specifications Hydraulic Hose and Fitti ng Tor que Sp ecificati ons Hydraulic Hose and Fitting SAE O-ring Boss Port Torque Specifications (tube fitting - installed into Aluminum) (all types) Your machine is equipped with Parker Seal-Lok™ ORFS or 37°...
Page 30: Torque Procedure
Service and Repair Manual June 2022 Specifications Tor que P roce dur e Torque Procedure JIC 37° fittings Align the tube flare (hex nut) against the nose Seal-Lok™ fittings of the fitting body (body hex fitting) and tighten the hex nut to the body hex fitting to Replace the O-ring.
Page 31 June 2022 Service and Repair Manual Specifications Working clockwise on the body hex fitting, make a second mark with a permanent ink marker to indicate the proper tightening position. Refer to Illustration 2. Note: Use the JIC 37° Fitting table in this section to determine the correct number of flats, for the proper tightening position.
Page 32 Service and Repair Manual June 2022 Specifications SAE and Me tric Fast ene rs T orq ue Ch arts ® -62/40 Part No. 1268555GT...
Page 33: Repair Procedures
June 2022 Service and Repair Manual Repair Procedures Machine Configuration: Secti on 3 Repair P roce dur es Intro ductio n Unless otherwise specified, perform each  repair procedure with the machine in the following configuration: • Machine parked on a firm, level surface •...
Page 34 Service and Repair Manual June 2022 Repair Procedures About This Section Most of the procedures in this section should only be performed by trained service professional in a suitably equipped workshop. Select the appropriate repair procedure after troubleshooting the problem. Perform disassembly procedures to the point where repairs can be completed.
Page 35: Platform Controls
June 2022 Service and Repair Manual Platform Controls Platf or m Con tr ols Platform Controls 1-1 ALC -50 0 Circui t Boa rd ALC-500 Circuit Board The platform control box contains one printed circuit board. The ALC-500 circuit board inside the Electrocution/burn hazard.
Page 36: Joysticks
Service and Repair Manual June 2022 Platform Controls 1-2 J oysticks How to Adju st th e Joys tick T hres hold S etting How to Adjust the Joystick Joysticks Threshold Setting The threshold setting of a joystick is the minimum How to Calibrate a Joystick output at which a function proportional valve can open and allow the function to operate.
Page 37: How To Adjust The Joystick Max-Out Setting
June 2022 Service and Repair Manual Platform Controls How to Adju st th e Joys tick M ax-o ut Setti ng How to Adjust the Joystick Max- 10 Slowly move the joystick off center in either direction just until the function begins to out Setting move.
Page 38: How To Adjust The Joystick Ramp Rate Setting
Service and Repair Manual June 2022 Platform Controls How to Adju st th e Joys tick Ra mp Ra te Setti ng How to Adjust the Joystick Ramp 10 Compare the machine function time with the function times listed in Refer to Specifications, Rate Setting Performance Specifications.
Page 39 June 2022 Service and Repair Manual Platform Controls 10 Compare the function ramp rate time with the Ramp rate (factory settings) table below and determine whether the ramp Primary boom up/down rate time needs to increase or decrease. accelerate 3 seconds 11 While the joystick is activated, set the ramp decelerate 1 second...
Page 40: Platform Components
Service and Repair Manual June 2022 Platform Components Platf or m Com po ne nt s 2-1 Plat for m Le veling Slave Cylin der Tag, disconnect and cap the hydraulic hoses from the slave cylinder. Plug the union hoses Platform Leveling Cylinder from the master cylinder together using a connector.
Page 41 June 2022 Service and Repair Manual Platform Components How to Bleed the Slave Cylinder Simultaneously activate the primary boom up function and the platform level up function until the boom is fully raised. Simultaneously activate the primary boom down function and the platform level down function until the boom is fully lowered.
Page 42: Platform Rotator
Service and Repair Manual June 2022 Platform Components Support the platform rotator with an 2-2 Plat for m Rot ato r appropriate lifting device. Do not apply any Platform Rotator lifting pressure. Crushing hazard. The platform How to Remove the Platform rotator could fall when removed Rotator from the machine if not properly...
Page 43 June 2022 Service and Repair Manual Platform Components How to Bleed the Platform Remove the pivot pin retaining fasteners from the jib boom and jib boom leveling arms to the Rotator platform rotator. Do not remove the pins. Note: This procedure will require two people. Do Support the jib boom leveling arms.
Page 44: Platform Overload System
Service and Repair Manual June 2022 Platform Components 2-3 Plat for m Ove rloa d Syste m Open the bottom bleed screw on the rotator, but do not remove it. Platform Overload System (if equipped) Bodily injury hazard. Spraying hydraulic oil can penetrate and burn skin.
Page 45 June 2022 Service and Repair Manual Platform Components Move the platform up and down by hand, so it Add an additional weight to the platform that bounces approximately 2.5 to 5 cm / 1 to is equal to, but does not exceed 15% of the 2 inches.
Page 46: Jib Boom Components
Service and Repair Manual June 2022 Jib Boom Components Jib B oom C om po ne nt s 3-1 Ji b Boo m Slide both of the jib boom leveling arms off of the jib boom cylinder rod-end pivot pin. Jib Boom Remove the hose and cable cover from the side of the jib boom.
Page 47: Jib Boom Lift Cylinder
June 2022 Service and Repair Manual Jib Boom Components 3-2 Ji b Boo m Lift C ylinde r Use a soft metal drift to tap the jib boom lift cylinder rod-end pivot pin out enough to lower Jib Boom Lift Cylinder one of the leveling arms to the ground.
Page 48: Primary Boom Components
Service and Repair Manual June 2022 Primary Boom Components Pr im ar y Boom Com p o nen ts 4-1 C able Tra ck Tag, disconnect and plug ports V1 and V2 on the platform rotate/jib manifold. Cap the Cable Track fittings.
Page 49: How To Repair The Cable Track
June 2022 Service and Repair Manual Primary Boom Components How to Re pair the Cable Tr ack How to Repair the Cable Track 4-2 Pri mar y Boo m Primary Boom Component damage hazard. The boom cable track can be damaged if it is twisted.
Page 50: How To Disassemble The Primary Boom
Service and Repair Manual June 2022 Primary Boom Components Remove the retaining fasteners from the 13 Remove the retaining fasteners from the master cylinder rod-end pivot pin. Use a soft primary boom pivot pin. metal drift to remove the pin. Lower the 14 Remove the primary boom pivot pin with a master cylinder against the primary lift soft metal drift, then carefully remove the...
Page 51: Primary Boom Lift Cylinder
June 2022 Service and Repair Manual Primary Boom Components 4-3 Pri mar y Boo m Lift C ylinde r Support the rod end and the barrel end of the primary boom lift cylinder with a second Primary Boom Lift Cylinder overhead crane or similar lifting device.
Page 52: Primary Boom Extension Cylinder
Service and Repair Manual June 2022 Primary Boom Components 4-4 Pri mar y Boo m Extensi on Cylin der Tag, disconnect and plug the primary boom extension cylinder hydraulic hoses. Cap the Primary Boom Extension fittings on the cylinder. Cylinder Bodily injury hazard.
Page 53: Platform Leveling Master Cylinder
June 2022 Service and Repair Manual Primary Boom Components 4-5 Plat for m Le veling Mas ter Cyli nde r Remove the retaining fasteners from the master cylinder barrel-end pivot pin. Platform Leveling Master Cylinder Use a soft metal drift to remove the pin. Remove the retaining fastener from the rod- The master cylinder acts as a pump for the slave end pivot pin.
Page 54: Secondary Boom Components
Service and Repair Manual June 2022 Secondary Boom Components Seco ndar y B o om Com p on en ts Secondary Boom components 6 secondary boom lift cylinder 1 master cylinder 7 lower compression arm 2 primary boom lift cylinder 8 lower tension arms 3 upper compression arms 9 upper tension arm...
Page 55: Secondary Boom Lift Cylinder
June 2022 Service and Repair Manual Secondary Boom Components 5-1 Sec ond ary Bo om Lift Cylin der Attach a lifting strap from an overhead supporting device (5 ton / 5000 kg) to the Secondary Boom Lift Cylinder pivot end of the primary boom for support. Do not apply lifting pressure.
Page 56 Service and Repair Manual June 2022 Secondary Boom Components Remove the pin retaining fastener securing the rod-end pivot pin of the secondary boom lift cylinder. Remove the pivot pin securing the lift cylinder. 10 Lift and move the cylinder towards the center of the machine enough to lower it down through the lower compression arm.
Page 57: Engines
June 2022 Service and Repair Manual Engines Engi nes 6-3 Flex Plat e 6-1 RPM adju stme nt - Deut z Mo dels Flex Plate RPM Adjustment - Deutz Models The flex plate acts as a coupler between the engine and the pump. It is bolted to the engine Refer to Maintenance Procedure in the appropriate flywheel and has a splined center to drive the Service or Maintenance Manual for your machine,...
Page 58: How To Install The Flex Plate
Service and Repair Manual June 2022 Engines How to I nstall t he Flex Plat e How to Install the Flex Plate Support the engine with an overhead crane or other suitable lifting device. Do not lift it. Install the flex plate onto the engine flywheel Remove the engine mounting plate to bell with the rubber vibration isolators towards the housing fasteners.
Page 59 June 2022 Service and Repair Manual Engines Ford Models Deutz Models Perkins Models Part No. 1268555GT ® -62/40...
Page 60: How To Install The Pump And Bell Housing Assembly
Service and Repair Manual June 2022 Engines How to ins tall th e Pum p a nd Bell Ho using Assem bly How to Install the Pump and Bell Housing Assembly Install the pump and bell housing assembly. Deutz models: Torque the bell housing mounting bolts labeled "C"...
Page 61: Ford Msg-425 Engine Fault Codes
June 2022 Service and Repair Manual Engines 6-4 For d MSG -42 5 Engi ne Fault C odes Engine Fault Codes - Ford MSG-425 Models How to Retrieve Engine Fault Codes The ECM constantly monitors the engine by the use of sensors on the engine. The ECM also uses signals from the sensors to initiate sequential fuel injection and make constant and instantaneous changes to ignition timing, fuel delivery and throttle...
Page 62: Engine Fault Codes - Deutz Td 2.2 L3 Models
Service and Repair Manual June 2022 Engines 6-5 En gine Faul t Cod es - D eutz TD 2.2 L 3 M odels 6-6 En gine Faul t Cod es - D eutz D 2.9 L4 and Perkins 40 4F- 22 Mod els Engine Fault Codes - Engine Fault Codes - Deutz TD 2.2 L3 Models...
Page 63: Diesel Particle Filter Regeneration - Deutz Td 2.2 L3
June 2022 Service and Repair Manual Engines 6-7 Die sel Par ticle Filter R ege ner ation - De utz TD 2. 2 L3 Diesel Particle Filter Regeneration - Deutz TD 2.2 L3 Engine The combustion of diesel fuel results in soot, which is separated in the diesel particle filter (DPF).
Page 64: Hydraulic Pumps
Service and Repair Manual June 2022 Hydraulic Pumps Hydr au lic Pum ps 7-1 Func tion Pu mp Tag, disconnect and plug the function pump hydraulic hoses. Cap the fittings on the pump. Function Pump Bodily injury hazard. Spraying hydraulic oil can penetrate and How to Remove the Function burn skin.
Page 65: Drive Pump
June 2022 Service and Repair Manual Hydraulic Pumps 7-2 D rive Pu mp Locate the two hydraulic tank valves at the hydraulic tank. Close the valves. Drive Pump Component damage hazard. The drive pump is a bi-directional variable The engine must not be started displacement piston pump.
Page 66 Service and Repair Manual June 2022 Hydraulic Pumps How to Prime the Drive Pump Carefully pull the drive pump out until the pump coupler separates from the flex plate. Connect a 0 to 600 psi / 0 to 41 bar pressure Remove the drive pump from the machine.
Page 67 June 2022 Service and Repair Manual This page intentionally left blank. Part No. 1268555GT ® -62/40...
Page 68: Manifolds
Service and Repair Manual June 2022 Manifolds Mani fo lds 8-1 Func tion Manif old C omp one nts Function Manifold Components The function manifold is located between the fuel and hydraulic tanks. Index Schematic Description Function Torque Item Solenoid valve, 3 position 4 way Platform level up/down 25 ft-lbs / 34 Nm Solenoid valve, 3 position 4 way...
Page 69 June 2022 Service and Repair Manual Manifolds Part No. 1268555GT ® -62/40...
Page 70 Service and Repair Manual June 2022 Manifolds Function Manifold Components, continued Index Schematic Description Function Torque Item Shuttle valve Differential sensing circuit, 12-14 ft-lbs / 16-19 Nm primary boom Proportional directional valve, Primary boom up/down 33-37 ft-lbs / 45-50 Nm 3 position 4 way Shuttle valve Differential sensing circuit,...
Page 71 June 2022 Service and Repair Manual Manifolds Part No. 1268555GT ® -62/40...
Page 72 Service and Repair Manual June 2022 Manifolds Function Manifold Components, continued Index Schematic Description Function Torque Item Flow control valve, 0.1 gpm / 0.38 Bleeds off differential sensing valves 25-30 ft-lbs / 34-41 Nm L/min to tank Primary boom and secondary boom Check valve, 100 psi / 7 bar 35-40 ft-lbs / 47-54 Nm circuit...
Page 73 June 2022 Service and Repair Manual Manifolds Part No. 1268555GT ® -62/40...
Page 74: Valve Adjustments - Function Manifold
Service and Repair Manual June 2022 Manifolds 8-2 Valv e Adjust men ts - Fu nction Ma nifold How to Adju st th e Platfo rm Lev el Up Reli ef Valve How to Adjust the Platform Level Valve Adjustments - Function Up Relief Valve Manifold Note: Perform this procedure with the machine in...
Page 75: How To Adjust The Platform Level Down Relief Valve
June 2022 Service and Repair Manual Manifolds How to Adju st th e Platfo rm Lev el Down R elief Valv e How to Adjust the Platform Level Down Relief Valve Note: Perform this procedure with the machine in the stowed position. Connect a 0 to 5000 psi / 0 to 350 bar pressure gauge to the test port on the function manifold.
Page 76: Jib Boom / Platform Rotate Manifold Components
Service and Repair Manual June 2022 Manifolds 8-3 Ji b Boo m / Platf or m Rota te Manif old Co mpo nen ts Jib Boom / Platform Rotate Manifold Components The jib boom / platform rotate manifold is mounted to the platform support. Index Schematic Description...
Page 77: Brake / Two Speed Manifold Components
June 2022 Service and Repair Manual Manifolds 8-4 Br ake / Two Spee d M anifol d Com pon ents Brake / Two Speed Manifold Components The brake / two speed manifold is located under the turntable cover at the platform end. Index Schematic Description...
Page 78: Brake / Two Speed / Steer Mode Manifold Components
Service and Repair Manual June 2022 Manifolds 8-5 Br ake / Two Spee d / Ste er Mod e M anifol d Com pon ents Brake / Two Speed / Steer Mode Manifold Components The brake / two speed manifold is located under the turntable cover at the platform end. Index Schematic Description...
Page 79: Steer Select Manifold Components
June 2022 Service and Repair Manual Manifolds 8-6 Ste er Sel ect M anif old Co mpo nent s Steer Select Manifold Components The brake / two speed manifold is located under the turntable cover at the platform end. Index Schematic Description Function...
Page 80: Turntable Rotation Manifold Components
Service and Repair Manual June 2022 Manifolds 8-7 Tur nta ble Rot ation Ma nifold Com pon ents Turntable Rotation Manifold Components The turntable rotation manifold is mounted to the turntable rotation motor located in the center of the turntable. Index No.
Page 81: Oscillate Directional Valve Manifold Components
June 2022 Service and Repair Manual Manifolds 8-8 O scillate Di rectio nal Valv e M anifold Com pon ents Directional Valve Manifold Components The directional valve manifold is mounted inside the drive chassis at the non-steer end. Schematic Index No. Description Function Torque Item...
Page 82: How To Set Up The Oscillate Directional Valve
Service and Repair Manual June 2022 Manifolds 8-9 H ow to Se t Up t he Os cillate Di rectio nal Valv e Adjust the ball joint until the hole lines up with the retaining fastener hole in the bracket. How to Set Up the Directional Valve Linkage Install the ball joint to the axle and tighten the...
Page 83: Valve Adjustment - Oscillate Relief Valve
June 2022 Service and Repair Manual Manifolds 8-10 V alve Adjus tme nt - Oscillat e Relief Valve 8-10 Adjust the hex screw. Turn it clockwise to increase the pressure or counterclockwise to Valve Adjustments - Oscillate decrease the pressure. Tighten the jamb nut. Relief Valve Tip-over hazard.
Page 84: Drive Oil Diverter Manifold Components (Welder Option)
Service and Repair Manual June 2022 Manifolds 8-11 Drive Oil Divert er Mani fold C omp one nts (w elde r op tion ) 8-11 Diverter Manifold Components (welder option) The oil diverter manifold is mounted on the ground control side of the machine. Index Schematic Description...
Page 85 June 2022 Service and Repair Manual Manifolds Part No. 1268555GT ® -62/40...
Page 86: Traction Manifold Components, 2Wd
Service and Repair Manual June 2022 Manifolds 8-12 Tr actio n Ma nifold Com pon ents, 2WD 8-12 Traction Manifold Components, 2WD The traction manifold is mounted inside the drive chassis at the non-steer end of the machine. Index Schematic Description Function Torque...
Page 87 June 2022 Service and Repair Manual This page intentionally left blank. Part No. 1268555GT ® -62/40...
Page 88: Traction Manifold Components, 4Wd
Service and Repair Manual June 2022 Manifolds 8-13 Tr actio n Ma nifold Com pon ents, 4WD 8-13 Traction Manifold Components, 4WD The traction manifold is mounted inside the drive chassis at the non-steer end of the machine. Index Schematic Description Function Torque...
Page 89 June 2022 Service and Repair Manual Manifolds Part No. 1268555GT ® -62/40...
Page 90: Valve Adjustments, Traction Manifold
Service and Repair Manual June 2022 Manifolds 8-14 V alve Adjus tme nts, Tr action Ma nifold 8-14 2WD models: Hold the charge pressure relief valve and remove the cap (item UU). Valve Adjustments - Traction 4WD models: Hold the charge pressure relief Manifold valve and loosen the jam nut.
Page 91: Hydraulic Generator Manifold Components, 3Kw
June 2022 Service and Repair Manual Manifolds 8-15 Hydr aulic G ene rato r M anifol d Co mpo nents , 3kW 8-15 Hydraulic Generator Manifold Components, 3kW The generator manifold is mounted to the hydraulic generator located in the ground controls compartment. Index Schematic Description...
Page 92: Valve Coils
Service and Repair Manual June 2022 Manifolds 8-16 V alve Coils 8-16 Valve Coil Resistance Valve Coils Specification Note: The following coil resistance specifications How to Test a Coil are at an ambient temperature of 68°F / 20°C. As valve coil resistance is sensitive to changes in air A properly functioning coil provides an temperature, the coil resistance will typically electromotive force which operates the solenoid...
Page 93: How To Test A Coil Diode
June 2022 Service and Repair Manual Manifolds How to Test a Coil Dio de How to Test a Coil Diode Properly functioning coil diodes protect the electrical circuit by suppressing voltage spikes. Voltage spikes naturally occur within a function circuit following the interruption of electrical current to a coil.
Page 94: Turntable Rotation Components
Service and Repair Manual June 2022 Turntable Rotation Components Tur n ta ble R ota tio n C om p one nt s 9-1 Tur nta ble Rot ation Assem bly Start the machine and rotate the boom back to the stowed position. Turntable Rotation Assembly Secure the turntable from rotating with the turntable rotation lock.
Page 95 June 2022 Service and Repair Manual Turntable Rotation Components How to Adjust the Turntable 10 Attach a suitable lifting device to the lifting Rotation Gear Backlash eyes on the turntable rotation assembly. 11 Carefully remove the turntable rotation The turntable rotation drive hub is mounted on an assembly from the machine.
Page 96: Axle Components
Service and Repair Manual June 2022 Axle Components Axle C om po ne nts 10-1 10-1 Oscillatin g Axle Cylin ders Attach a lifting strap from an overhead lifting device to the barrel end of the oscillating Oscillating Axle Cylinders cylinder.
Page 97: Track Components
June 2022 Service and Repair Manual Track Components Tr ack C om p one nt s How to Replace the Track 11-1 11-1 Tr ack Asse mbly Track Assembly Note: Perform this procedure on a firm, level surface with the machine in the stowed position. How to Remove a Track Remove the track assembly from the machine.
Page 98 Service and Repair Manual June 2022 Track Components Install the new track onto the undercarriage. Rotate the sprocket half until the split tooth of the sprocket is lower than the other side. Attach a lifting strap from an overhead supporting device to the center-point of the track, above the sprocket.
Page 99 June 2022 Service and Repair Manual Track Components 14 Using the pry bars, lift the sprocket half into 19 Pump grease into the grease zerk fitting until position. Install the 2 sprocket retaining grease, free from air, comes out of the grease fasteners and torque to specification.
Page 100 Service and Repair Manual June 2022 Track Components 21 Continue to pump grease into the cylinder until the track has proper tension. Component damage hazard. Do not over tighten the track. Over tightening the track will cause the machine to lose power during operation.
Page 101: Generators
June 2022 Service and Repair Manual Generators Gener a tor s 12-1 12-1 Hydr aulic G ene rato r Hydraulic Generator How to Purge the Hydraulic Line on the MTE Generator Electrocution/burn hazard. Contact with electrically charged circuits could result in death or serious injury.
Page 102: Fault Codes
Service and Repair Manual June 2022 Fault Codes Before Troubleshooting: Secti on 4 Fault C odes Intro ductio n Read, understand and obey the safety rules  and operating instructions in the appropriate operator's manual on your machine. Be sure that all necessary tools and test ...
Page 103: Control System Fault Codes
June 2022 Service and Repair Manual Control System Fault Codes Contr ol Sys tem F au lt C ode s Control System How to Re triev e Con trol Syst em Fa ult Cod es Determine the error source: The red LED indicates the error source and will flash two separate codes.
Page 104: Control System Fault Codes
Service and Repair Manual June 2022 Control System Fault Codes Contr ol System Fa ult Co des Error Source Error Type Condition Solution Name Name Primary Up / Value at 5.0 V Limited Speed and Direction frozen at Power up controller with Down Joystick zero and neutral, Alarm sounds.
Page 105 June 2022 Service and Repair Manual Control System Fault Codes Error Source Error Type Condition Solution Name Name Secondary Up / Fault Limited Speed and Direction frozen at Power up controller with Down. Directional zero and neutral, Alarm sounds. problem corrected. Valves Secondary Up / Value too high...
Page 106 Service and Repair Manual June 2022 Control System Fault Codes Error Source Error Type Condition Solution Name Name Drive Joystick Value at 5.0 V Limited Speed and Direction frozen at Power up controller with zero and neutral, Alarm sounds. problem corrected. Value too high Value too low Value at 0 V...
Page 107: Fault Code Display - Deutz And Perkins Models
June 2022 Service and Repair Manual Fault Code Display - Deutz and Perkins Models Fau lt C od e Dis pla y - D eut z a nd Per ki ns Mo de ls How to Retrieve Active Engine How to Re triev e Active En gine Fa ult Cod es De utz D 2.9 L4 a nd Pe rkins 4 04 F-2 2 M odels With an active fault and the engine running: (preferred method) Fault Codes - Deutz D 2.9 L4 and...
Page 108: How To Retrieve Active Engine Fault Codes - Deutz Td 2.2 L3 Models
Service and Repair Manual June 2022 Fault Code Display - Deutz and Perkins Models How to Re triev e Active En gine Fa ult Cod es - Deutz TD 2.2 L3 Models How to Retrieve Active Engine With an active fault and the engine running: (preferred method) Fault Codes - Deutz TD 2.2 L3 Models...
Page 109: Fault Code Display - Flashing And Solid Led's - Deutz D 2.9 L4 And Perkins 404F-22 Models
June 2022 Service and Repair Manual Fault Code Display - Deutz and Perkins Models Fault C ode Display - Fl ashin g an d Solid LED's - De utz D 2.9 L 4 a nd Pe rkins 4 04 F-2 2 M odels Flashing and Solid LED's - Deutz D 2.9 L4 and Perkins 404F-22 Models 1 Left green LED: Flashing, engine fault detected.
Page 110: Soft Key Functions And Icons - Deutz D 2.9 L4 And Perkins 404F-22 Models
Service and Repair Manual June 2022 Fault Code Display - Deutz and Perkins Models Soft Key F uncti ons a nd Ic ons - De utz D 2 .9 L 4 an d Per kins 4 04F -2 2 Mo dels Soft Key Functions and Icons - Deutz D 2.9 L4 and Perkins 404F-22 Models Next menu •...
Page 111: Soft Key Functions And Icons - Deutz Td 2.2 L3 Models
June 2022 Service and Repair Manual Fault Code Display - Deutz and Perkins Models Soft Key F uncti ons a nd Ic ons - De utz TD 2.2 L3 Mod els Soft Key Functions and Icons - Deutz TD 2.2 L3 Models Exit / Back one screen Scroll up •...
Page 112: Main Menu Structure - Deutz D 2.9 L4 Models
Service and Repair Manual June 2022 Fault Codes Main Men u Struc tur e - D eutz D 2.9 L4 Mod els Main Menu Structure - Deutz D 2.9 L4 Models ® -62/40 Part No. 1268555GT...
Page 113: Main Menu Structure - Deutz Td 2.2 L3 Models
June 2022 Service and Repair Manual Fault Codes Main Men u Struc tur e - D eutz TD 2 .2 L 3 M odels Main Menu Structure - Deutz TD 2.2 L3 Models Part No. 1268555GT ® -62/40...
Page 114: Main Menu Structure - Perkins 404F-22 Models
Service and Repair Manual June 2022 Fault Codes Main Men u Struc tur e - Pe rkins 404 F- 22 Mod els Main Menu Structure - Perkins 404F-22 Models ® -62/40 Part No. 1268555GT...
Page 115: Deutz Td 2.2 L3 Engine Fault Codes
June 2022 Service and Repair Manual Deutz TD 2.2 L3 Engine Fault Codes Deutz TD 2.2 L3 E ngi ne Fa ult C od es DTC = Diagnostic Trouble Code DTC SPN FMI Description FMI = Failure Mode Identifier 1077 411 Engine exhaust gas recirculation.
Page 116 Service and Repair Manual June 2022 Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN FMI Description FMI = Failure Mode Identifier 1134 3251 3 DPF voltage above normal or SPN = Suspect Parameter Number shorted to high.
Page 117 June 2022 Service and Repair Manual Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN Description FMI = Failure Mode Identifier 1209 157 Engine fuel injector metering rail SPN = Suspect Parameter Number pressure voltage below normal or shorted to low.
Page 118 Service and Repair Manual June 2022 Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN FMI Description FMI = Failure Mode Identifier 1308 677 Engine starter motor relay current SPN = Suspect Parameter Number below normal or shorted to low. DTC SPN FMI Description 1310 677...
Page 119 June 2022 Service and Repair Manual Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN Description FMI = Failure Mode Identifier 1392 51 Engine throttle valve 1, position SPN = Suspect Parameter Number 1 voltage below normal or shorted to low.
Page 120 Service and Repair Manual June 2022 Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN Description FMI = Failure Mode Identifier 3349 Timeout Error of CAN receive SPN = Suspect Parameter Number frame TSC1TR; control signal. DTC SPN Description 1485...
Page 121 June 2022 Service and Repair Manual Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN FMI Description FMI = Failure Mode Identifier Ambient air temperature sensor SPN = Suspect Parameter Number voltage above normal or shorted to high.
Page 122 Service and Repair Manual June 2022 Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN FMI Description FMI = Failure Mode Identifier 5363 5 Engine cylinder 6 fuel injection SPN = Suspect Parameter Number quantity current below normal or open circuit.
Page 123 June 2022 Service and Repair Manual Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN FMI Description FMI = Failure Mode Identifier 4257 14 Engine fuel 1 injector, group SPN = Suspect Parameter Number 3 missing injector adjustment value programming injector 3.
Page 124 Service and Repair Manual June 2022 Deutz TD 2.2 L3 Engine Fault Codes DTC = Diagnostic Trouble Code DTC SPN Description FMI = Failure Mode Identifier Actual engine percent torque. SPN = Suspect Parameter Number DFC to report the fault in energizing time comparison.
Page 125: Deutz D 2.9 L4 Engine Fault Codes
June 2022 Service and Repair Manual Deutz D 2.9 L4 Engine Fault Codes Deutz D 2.9 L4 En gin e F aul t Co de s SPN = Suspect Parameter Number SPN FMI Description FMI = Failure Mode Identifier 1231 Actuator error EGR-Valve;...
Page 126 Service and Repair Manual June 2022 Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number SPN FMI Description FMI = Failure Mode Identifier 1180 Physical range check high for KWP = Keyword Protocol battery voltage SPN FMI Description 1181 Physical range check low for...
Page 127 June 2022 Service and Repair Manual Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number SPN FMI Description FMI = Failure Mode Identifier 1007 Sensor error EGR cooler KWP = Keyword Protocol downstream temperature; signal range check high SPN FMI Description 1008...
Page 128 Service and Repair Manual June 2022 Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number SPN FMI Description FMI = Failure Mode Identifier 1109 2 Engine shut off demand ignored KWP = Keyword Protocol 1136 0 1398 Physikal range check high for SPN FMI Description...
Page 129 June 2022 Service and Repair Manual Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number SPN FMI Description FMI = Failure Mode Identifier 2659 2 1527 AGS sensor temperature KWP = Keyword Protocol exhaust gas mass flow; plausibility error SPN FMI Description...
Page 130 Service and Repair Manual June 2022 Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number FMI KWP Description FMI = Failure Mode Identifier 523212 Timeout Error of CAN-Receive- KWP = Keyword Protocol Frame ComEngPrt; Engine Protection FMI KWP Description 523216 Timeout Error of CAN-Receive-...
Page 131 June 2022 Service and Repair Manual Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number FMI KWP Description FMI = Failure Mode Identifier 523612 Internal ECU monitoring KWP = Keyword Protocol detection reported error FMI KWP Description 523612 1170 Internal software error ECU 523605...
Page 132 Service and Repair Manual June 2022 Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number FMI SPN Description FMI = Failure Mode Identifier 523788 Timeout Error of CAN-Transmit- KWP = Keyword Protocol Frame TrbCH; Status Wastegate FMI KWP Description 523793 Timeout Error of CAN-Receive- Frame UAA10;...
Page 133 June 2022 Service and Repair Manual Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number FMI KWP Description FMI = Failure Mode Identifier 523946 1164 Zero fuel calibration injector 1 (in KWP = Keyword Protocol firing order); minimum value exceeded FMI KWP Description 523947...
Page 134 Service and Repair Manual June 2022 Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number FMI KWP Description FMI = Failure Mode Identifier 524032 1442 EGR actuator; status message KWP = Keyword Protocol EGRCust is missing FMI KWP Description 524033 1443 EGR actuator;...
Page 135 June 2022 Service and Repair Manual Deutz D 2.9 L4 Engine Fault Codes SPN = Suspect Parameter Number KWP Description FMI = Failure Mode Identifier 524114 9 1659 Timeout error of CAN-Transmit- KWP = Keyword Protocol Frame A1DOC KWP Description 524115 9 1660 Timeout error of CAN-Transmit- Frame AT1S...
Page 136: Perkins 404F-E22T Engine Fault Codes
Service and Repair Manual June 2022 Perkins 404F-E22T Engine Fault Codes Per kins 404 F-E2 2T E ngi ne Fa ult C od es SPN = Suspect Parameter Number Description FMI = Failure Mode Identifier Engine Speed Sensor #2: Voltage Above Normal Description Engine Speed Sensor #2: Voltage...
Page 137 June 2022 Service and Repair Manual Perkins 404F-E22T Engine Fault Codes SPN = Suspect Parameter Number Description FMI = Failure Mode Identifier 4201 Engine Speed Sensor #1: Voltage Below Normal Description 4201 Engine Speed Sensor #1: Abnormal 3251 Particulate Trap Differential Pressure: Frequency, Pulse \Nidth, or Period Voltage Above Normal 4201...
Page 138: Ford Msg-425 Engine Fault Codes
Service and Repair Manual June 2022 Ford MSG-425 Engine Fault Codes For d MSG- 425 E ngi ne Fa ult Co des How to Retrieve Ford Engine How to Re triev e F ord MSG- 425 E ngine Fa ult Co des Note: Before the fault codes are displayed, the check engine light will blink a code 1-6-5-4 three Fault Codes...
Page 139 June 2022 Service and Repair Manual Ford MSG-425 Engine Fault Codes Code Description Code Description Never crank synced at start TIP Low Voltage FP low voltage TIP High Voltage FP high voltage Injector Loop Open or Low-side short to Ground MAP Low Voltage Injector Coil Shorted MAP High Pressure...
Page 140 Service and Repair Manual June 2022 Ford MSG-425 Engine Fault Codes Code Description Code Description Emissions/catalyst damaging misfire 5VE1 low voltage Emissions/catalyst damaging misfire 5VE1 high voltage Emissions/catalyst damaging misfire MIL open Emissions/catalyst damaging misfire 5VE2 low voltage Emissions/catalyst damaging misfire 5VE2 high voltage Emissions/catalyst damaging misfire Relay Coil Open...
Page 141 June 2022 Service and Repair Manual Ford MSG-425 Engine Fault Codes Code Description Code Description 1173 Megajector comm lost 1551 AUX DIG1 high 1174 Megajector voltage supply high 1552 AUX DIG1 low 1175 Megajector voltage supply low 1553 AUX DIG2 high 1176 Megajector internal actuator fault detection 1554...
Page 142 Service and Repair Manual June 2022 Ford MSG-425 Engine Fault Codes Code Description Code Description 1629 J1939 TSC1 message receipt lost 2130 IVS stuck at-idle, FPP1/2 match 1630 J1939 ETC message receipt lost 2131 IVS stuck off-idle, FPP1/2 match 1631 PWM1-Gauge1 open / ground short 2135 TPS1/2 simultaneous voltages out of range...
Page 143 June 2022 Service and Repair Manual Ford MSG-425 Engine Fault Codes Code Description 2309 Primary Loop Open or Low-side Short to Ground 2310 Primary Coil Shorted 2312 Primary Loop Open or Low-side Short to Ground 2313 Primary Coil Shorted 2315 Primary Loop Open or Low-side Short to Ground 2316...
Page 144 Service and Repair Manual June 2022 Schematics About This Section Secti on 5 Schematic s Intro ductio n There are two groups of schematics in this section. Electrical Schematics Electrocution/burn hazard. Contact with electrically charged Observe and Obey: circuits could result in death or serious injury.
Page 145: Electrical Symbol Legend
June 2022 Service and Repair Manual Electrical Symbol Legend Electrical Sym bol L ege nd Battery Coil, solenoid or relay Horn or alarm Flashing beacon Gauge Diode Hour meter Fuse with amperage Foot switch T-circuits connect Limit switch Power relay Coil with suppression Fuel or RPM solenoid T-circuits connect at...
Page 146: Hydraulic Symbols Legend
Service and Repair Manual June 2022 Hydraulic Symbols Legend Hydraulic Symbols Le gen d Orifice with size Check valve Shut off valve Brake Pump, bi-directional Motor, 2 speed bi- Pump, fixed displacement Motor, bi-directional variable displacement directional Pump, prime mover Shuttle valve.
Page 147: Electrical Component And Wire Color Legends
June 2022 Service and Repair Manual Electrical Component and Wire Color Legends Electrical Co mpo nen t an d Wire Colo r Le gen ds Item Description Fuse Work lights, 5A Battery Engine Start - 12V DC Telematics, 6A Connector Gauge C1, C3 Controls cables...
Page 148 Service and Repair Manual June 2022 Electrical Component and Wire Color Legends Item Description Item Description Horn or Alarm Motor Tilt / Platform overload Oil cooler fan Horn Auxiliary pump Descent / Travel Engine starter Platform overload Fuel pump Joystick Button Boom proportional joystick: secondary Red emergency stop (ground)
Page 149 June 2022 Service and Repair Manual Electrical Component and Wire Color Legends Item Description Item Description Toggle Switch Module Auxiliary pump Ignition start module Start engine EDC - drive pump Fuel select (MSG-425 models) ALC-500 joystick controller card Hi/low rpm Load sense module Glow plug (diesel models) Time delay relay - 2 seconds, 10A...
Page 150 Service and Repair Manual June 2022 Electrical Component and Wire Color Legends Wire Color Legend Item Description Blue Black Brown Green Orange Purple White Yellow BL/BK Blue/Black BL/RD Blue/Red BL/WH Blue/White BK/RD Black/Red GR/BK Green/Black GR/WH Green/White OR/BK Orange/Black OR/RD Orange/Red OR/WH Orange/White...
Page 151: Ford Engine Relay Layout
June 2022 Service and Repair Manual Ford Engine Relay Layout For d Engin e Relay Lay out Ford MSG-425 EFI 1 Power Relay 2 Fuel Pump Relay 3 Starter Relay 4 Starter - 20A 5 Empty 6 Fuse 1 - 10A 7 Fuse 2 - 5A 8 Fuse 3 - 10A 9 Fuse 4 - 15A...
Page 152: Engine Relay Layout - Deutz Td 2.2 L3, D 2.9 L4 And Perkins 404F-22
Service and Repair Manual June 2022 Engine Relay Layout - Deutz TD 2.2 L3, D 2.9 L4 and Perkins 404F-22 Engine Rel ay L ayout - De utz TD 2. 2 L3 , D 2. 9 L 4 an d Perki ns 40 4F -22 Deutz TD 2.2 L3, D 2.9 L4 Fuses Horn, Hydraulic Oil Cooler...
Page 153: Limit Switch Legend
June 2022 Service and Repair Manual Limit Switch Legend Limit Switch Leg end 1 LS4 - Secondary boom up 2 LS2 - Primary boom up 3 LS1 - Primary boom extend 4 LS3 - Drive enable Part No. 1268555GT ® -62/40...
Page 154 Service and Repair Manual June 2022 This page intentionally left blank. ® -62/40 Part No. 1268555GT...
Page 155 June 2022 Service and Repair Manual Electr ica l Sch em ati cs – Op tio ns Ford MSG-425 Engine Wire Harness...
Page 156: Ford Msg-425 Efi Engine Wire Harness
Service and Repair Manual June 2022 For d MSG -42 5 EFI En gine Wi re H arn ess Ford MSG-425 EFI Engine Wire Harness ® -62/40 Part No. 1268555GT...
Page 157: Deutz D 2.9 L4 Engine Wire Harness
June 2022 Service and Repair Manual Deutz D 2.9 L 4 Engi ne Wir e Har ness Deutz D 2.9 L4 Engine Wire Harness Part No. 1268555GT ® -62/40...
Page 158 Service and Repair Manual June 2022 Deutz D 2.9 L4 Engine Wire Harness...
Page 159: Deutz Td 2.2 L3 Engine Wire Harness
June 2022 Service and Repair Manual Deutz TD 2.2 L3 Engine Wire Harness...
Page 160 Service and Repair Manual June 2022 Deutz TD 2. 2 L3 E ngine Wire H arn ess Deutz TD 2.2 L3 Engine Wire Harness ® -62/40 Part No. 1268555GT...
Page 161 June 2022 Service and Repair Manual Electrical Sch emati c, Op tions (All Mo dels) Perkins 404F-E22T Engine Wire Harness Part No. 1268555GT ® -62/40...
Page 162 Service and Repair Manual June 2022 Perkins 404F-E22T Engine Wire Harness...
Page 163 June 2022 Service and Repair Manual Perkins 404F-22 Engine Wire Harness...
Page 164 Service and Repair Manual June 2022 Perkins 4 04 F-2 2 Engin e Wire Har ness Perkins 404F-22 Engine Wire Harness ® -62/40 Part No. 1268555GT...
Page 165: Electrical Schematic, Options (All Models)
June 2022 Service and Repair Manual Electrical Sch emati c, Op tions (All Mo dels) Electrical Schematic, Options (All Models) Part No. 1268555GT ® -62/40...
Page 166: Electrical Schematic, Options (All Models)
Service and Repair Manual June 2022 Electrical Schematic, Options (All Models)
Page 167: Wiring Diagram, 3Kw Hydraulic Generator
June 2022 Service and Repair Manual Wiring Diagram, 3kW Hydraulic Generator...
Page 168 Service and Repair Manual June 2022 Wiring Dia gra m, 3kW Hydr aulic G ene rato r Wiring Diagram, 3kW Hydraulic Generator ® -62/40 Part No. 1268555GT...
Page 169: Wiring Diagram, 12Kw Hydraulic Generator - Welder Option
June 2022 Service and Repair Manual Wiring Dia gra m, 1 2kW Hyd raulic Gen erat or - Weld er O ption Wiring Diagram, 12kW Hydraulic Generator - Welder Option Part No. 1268555GT ® -62/40...
Page 170 Service and Repair Manual June 2022 Wiring Diagram, 12kW Hydraulic Generator - Welder Option...
Page 171: Hydraulic Schematic, 12Kw Hydraulic Generator - Welder Option
June 2022 Service and Repair Manual Hydraulic Schem atic, 12kw Hy dra ulic Ge ner ator - Wel der Optio n Hydraulic Schematic, 12kw Hydraulic Generator - Welder Option Part No. 1268555GT ® -62/40...
Page 172 Service and Repair Manual June 2022 Hydraulic Schematic, 12kw Hydraulic Generator - Welder Option...
Page 173: Wiring Diagram, Lift / Drive Option
June 2022 Service and Repair Manual Wiring Diagram, Lift / Drive - Option...
Page 174 Service and Repair Manual June 2022 Wiring Dia gra m, Lif t / Driv e Op tion Wiring Diagram, Lift / Drive - Option ® -62/40 Part No. 1268555GT...
Page 175: Wiring Diagram, Platform Overload Option
June 2022 Service and Repair Manual Wiring Dia gra m, Platf or m Ove rloa d Opti on Wiring Diagram, Platform Overload - Option Part No. 1268555GT ® -62/40...
Page 176 Service and Repair Manual June 2022 Wiring Diagram, Platform Overload - Option...
Page 177: Wiring Diagram, Platform Overload And Lift / Drive Option
June 2022 Service and Repair Manual Wiring Diagram, Platform Overload and Lift / Drive - Option...
Page 178 Service and Repair Manual June 2022 Wiring Dia gra m, Platf or m Ove rloa d an d Lift / Driv e Opti on Wiring Diagram, Platform Overload and Lift / Drive - Option ® -62/40 Part No. 1268555GT...
Page 179: Wiring Diagram, Work Lights Option
June 2022 Service and Repair Manual Wiring Dia gra m, Wo rk Lig hts O ption Wiring Diagram, Work Lights - Option Part No. 1268555GT ® -62/40...
Page 180 Service and Repair Manual June 2022 Wiring Diagram, Work Lights - Option...
Page 181: Wiring Diagram, Aircraft Protection Option
June 2022 Service and Repair Manual Wiring Diagram, Aircraft Protection - Option...
Page 182 Service and Repair Manual June 2022 Wiring Dia gra m, Airc raft P rotec tion Optio n Wiring Diagram, Aircraft Protection - Option ® -62/40 Part No. 1268555GT...
Page 183: Wiring Diagram, Platform Control Box Heater Option
June 2022 Service and Repair Manual Wiring Dia gra m, Platf or m Cont rol Box Heat er Optio n Wiring Diagram, Platform Control Box Heater - Option Part No. 1268555GT ® -62/40...
Page 184 Service and Repair Manual June 2022 Wiring Diagram, Platform Control Box Heater - Option...
Page 185 June 2022 Service and Repair Manual Wiring Dia gra m, Fuel Level Se nsing Opti on Fuel Level Sensing - Option Part No. 1268555GT ® -62/40...
Page 186 Service and Repair Manual June 2022 Fuel Level Sensing - Option...
Page 187 June 2022 Service and Repair Manual Hydr au lic Sc hem a tics Hydraulic Schematic, 2WD - 2 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484] [from serial number Z62M-101]...
Page 188 Service and Repair Manual June 2022 Hydraulic Schem atic, 2WD - 2 Whe el Stee r M odels [to s erial num bers Z 62D- 546, Z6 2H-4 484, fro m Z62 M-1 01] Hydraulic Schematic, 2WD - 2 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484] [from serial number Z62M-101] ®...
Page 189 June 2022 Service and Repair Manual Hydraulic Schem atic, 2WD - 2 Whe el Stee r M odels [fro m se rial n um bers Z6 2D-5 47, Z6 2H-4 485] Hydraulic Schematic, 2WD - 2 Wheel Steer Models [from serial numbers Z62D-547, Z62H-4485] Part No.
Page 190 Service and Repair Manual June 2022 Hydraulic Schematic, 2WD - 2 Wheel Steer Models [from serial numbers Z62D-547, Z62H-4485]...
Page 191 June 2022 Service and Repair Manual Hydraulic Schematic, 4WD - 2 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484] [from serial number Z62M-101]...
Page 192 Service and Repair Manual June 2022 Hydraulic Schem atic, 4WD - 2 Whe el Stee r M odels [to s erial num bers Z 62D- 546, Z6 2H-4 484, fro m Z62 M-1 01] Hydraulic Schematic, 4WD - 2 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484] [from serial number Z62M-101] ®...
Page 193 June 2022 Service and Repair Manual Hydraulic Schem atic, 4WD - 2 Whe el Stee r M odels [fro m se rial n um bers Z6 2D-5 47, Z6 2H-4 485] Hydraulic Schematic, 4WD - 2 Wheel Steer Models [from serial numbers Z62D-547, Z62H-4485] Part No.
Page 194 Service and Repair Manual June 2022 Hydraulic Schematic, 4WD - 2 Wheel Steer Models [from serial numbers Z62D-547, Z62H-4485]...
Page 195 June 2022 Service and Repair Manual Hydraulic Schematic, 4WD - 4 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484] [from serial number Z62M-101]...
Page 196 Service and Repair Manual June 2022 Hydraulic Schem atic, 4WD - 4 Whe el Stee r M odels [to s erial num bers Z 62D- 546, Z6 2H-4 484, fro m Z62 M-1 01] Hydraulic Schematic, 4WD - 4 Wheel Steer Models [to serial numbers Z62D-546, Z62H-4484] [from serial number Z62M-101] ®...
Page 197 June 2022 Service and Repair Manual Hydraulic Schem atic, 4WD - 4 Whe el Stee r M odels [fro m se rial n um bers Z6 2D-5 47, Z6 2H-4 485] Hydraulic Schematic, 4WD - 4 Wheel Steer Models [from serial numbers Z62D-547, Z62H-4485] Part No.
Page 198 Service and Repair Manual June 2022 Hydraulic Schematic, 4WD - 4 Wheel Steer Models [from serial numbers Z62D-547, Z62H-4485]...
Page 199 June 2022 Service and Repair Manual Electr ica l Sch em ati cs – ANSI an d CSA Mo dels Electrical Schematic, Ford MSG-425 EFI Models (ANSI/CSA)
Page 200 Service and Repair Manual June 2022 Electrical Sch emati c, F ord MSG- 425 EFI Mod els (ANSI/CSA) Electrical Schematic, Ford MSG-425 EFI Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 201 June 2022 Service and Repair Manual Electrical Schematic, Ford MSG-425 EFI Models (ANSI/CSA) Part No. 1268555GT ® -62/40...
Page 202 Service and Repair Manual June 2022 Electrical Schematic, Ford MSG-425 EFI Models (ANSI/CSA)
Page 203 June 2022 Service and Repair Manual Ground Control Box Terminal Strip Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA)
Page 204 Service and Repair Manual June 2022 Grou nd Co ntr ol Box Ter minal St rip Wiri ng Dia gra m, For d MSG -42 5 EFI Mo dels (ANSI/CSA) Ground Control Box Terminal Strip Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA) ®...
Page 205 June 2022 Service and Repair Manual Grou nd Co ntr ol Box Switch Pa nel Wiri ng Dia gra m, For d MSG -42 5 EFI Mo dels (ANSI/CSA) Ground Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA) Part No.
Page 206 Service and Repair Manual June 2022 Ground Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA)
Page 207 June 2022 Service and Repair Manual Platform Control Box Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA)
Page 208 Service and Repair Manual June 2022 Platfor m Cont rol Box Wiring Diagr am, Fo rd MSG- 425 E FI M odels (ANSI/CSA) Platform Control Box Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 209 June 2022 Service and Repair Manual Platfor m Cont rol Box Switch Pan el Wirin g Diag ra m, F ord MSG- 425 EFI Mod els (ANSI/CSA) Platform Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA) Part No. 1268555GT ®...
Page 210 Service and Repair Manual June 2022 Platform Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (ANSI/CSA)
Page 211 June 2022 Service and Repair Manual Electrical Schematic, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA)
Page 212 Service and Repair Manual June 2022 Electrical Sch emati c, Deu tz D20 11 L03i / Perkin s 40 4D-2 2 M odels (ANSI/CSA) Electrical Schematic, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 213 June 2022 Service and Repair Manual Electrical Schematic, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA) Part No. 1268555GT ® -62/40...
Page 214 Service and Repair Manual June 2022 Electrical Schematic, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA)
Page 215 June 2022 Service and Repair Manual Ground Control Box Terminal Strip Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA)
Page 216 Service and Repair Manual June 2022 Grou nd Co ntr ol Box Ter minal St rip Wiri ng Dia gra m, De utz D2 011 L03i / Perki ns 4 04D- 22 Models (ANSI/CSA) Ground Control Box Terminal Strip Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA) ®...
Page 217 June 2022 Service and Repair Manual Grou nd Co ntr ol Box Switch Pa nel Wiri ng Dia gra m, D eutz D 201 1 L0 3i / Pe rkins 4 04D- 22 Mod els (ANSI/CSA) Ground Control Box Switch Panel Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA) Part No.
Page 218 Service and Repair Manual June 2022 Ground Control Box Switch Panel Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA)
Page 219 June 2022 Service and Repair Manual Platform Control Box Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA)
Page 220 Service and Repair Manual June 2022 Platfor m Cont rol Box Wiring Diagr am, Deutz D20 11 L 03i / P erkins 404D -22 Mo dels (ANSI/CSA) Platform Control Box Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA) ®...
Page 221 June 2022 Service and Repair Manual Platfor m Cont rol Box Switch Pan el Wirin g Diag ra m, Deu tz D2 011 L03i / Perkin s 40 4D-2 2 M odels (ANSI/CSA) Platform Control Box Switch Panel Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA) Part No.
Page 222 Service and Repair Manual June 2022 Platform Control Box Switch Panel Wiring Diagram, Deutz D2011 L03i / Perkins 404D-22 Models (ANSI/CSA)
Page 223 June 2022 Service and Repair Manual Electrical Schematic, Deutz D 2.9 L4 Models (ANSI/CSA)
Page 224 Service and Repair Manual June 2022 Electrical Sch emati c, Deu tz D 2. 9 L 4 M odels (ANSI/CSA) Electrical Schematic, Deutz D 2.9 L4 Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 225 June 2022 Service and Repair Manual Electrical Schematic, Deutz D 2.9 L4 Models (ANSI/CSA) Part No. 1268555GT ® -62/40...
Page 226 Service and Repair Manual June 2022 Electrical Schematic, Deutz D 2.9 L4 Models (ANSI/CSA)
Page 227 June 2022 Service and Repair Manual Ground Control Box Terminal Strip Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA)
Page 228 Service and Repair Manual June 2022 Grou nd Co ntr ol Box Ter minal St rip Wiri ng Dia gra m, De utz D 2.9 L4 M odels (ANSI/CSA) Ground Control Box Terminal Strip Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA) ®...
Page 229 June 2022 Service and Repair Manual Grou nd Co ntr ol Box Switch Pa nel Wiri ng Dia gra m, D eutz D 2.9 L4 Mod els (ANSI/CSA) Ground Control Box Switch Panel Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA) Part No.
Page 230 Service and Repair Manual June 2022 Ground Control Box Switch Panel Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA)
Page 231 June 2022 Service and Repair Manual Platform Control Box Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA)
Page 232 Service and Repair Manual June 2022 Platfor m Cont rol Box Wiring Diagr am, Deutz D 2. 9 L4 Mo dels (ANSI/CSA) Platform Control Box Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 233 June 2022 Service and Repair Manual Platfor m Cont rol Box Switch Pan el Wirin g Diag ra m, Deu tz D 2 .9 L 4 M odels (ANSI/CSA) Platform Control Box Switch Panel Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA) Part No.
Page 234 Service and Repair Manual June 2022 Platform Control Box Switch Panel Wiring Diagram, Deutz D 2.9 L4 Models (ANSI/CSA)
Page 235 June 2022 Service and Repair Manual Electrical Schematic, Perkins 404F-22 Models (ANSI/CSA)
Page 236 Service and Repair Manual June 2022 Electrical Sch emati c, Perki ns 40 4F -22 Mo dels (ANSI/CSA) Electrical Schematic, Perkins 404F-22 Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 237 June 2022 Service and Repair Manual Electrical Schematic, Perkins 404F-22 Models (ANSI/CSA) Part No. 1268555GT ® -62/40...
Page 238 Service and Repair Manual June 2022 Electrical Schematic, Perkins 404F-22 Models (ANSI/CSA)
Page 239 June 2022 Service and Repair Manual Ground Control Box Terminal Strip Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA)
Page 240 Service and Repair Manual June 2022 Grou nd Co ntr ol Box Ter minal St rip Wiri ng Dia gra m, Pe rkins 4 04 F-2 2 M odels (ANSI/CSA) Ground Control Box Terminal Strip Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA) ®...
Page 241 June 2022 Service and Repair Manual Grou nd Co ntr ol Box Switch Pa nel Wiri ng Dia gra m, Pe rkins 404 F-2 2 M odels (ANSI/CSA) Ground Control Box Switch Panel Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA) Part No. 1268555GT ®...
Page 242 Service and Repair Manual June 2022 Ground Control Box Switch Panel Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA)
Page 243 June 2022 Service and Repair Manual Platform Control Box Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA)
Page 244 Service and Repair Manual June 2022 Platfor m Cont rol Box Wiring Diagr am, Perkins 40 4F -22 Mod els (ANSI/CSA) Platform Control Box Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 245 June 2022 Service and Repair Manual Platfor m Cont rol Box Switch Pan el Wirin g Diag ra m, Perki ns 4 04F -22 Mo dels (ANSI/CSA) Platform Control Box Switch Panel Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA) Part No. 1268555GT ®...
Page 246 Service and Repair Manual June 2022 Platform Control Box Switch Panel Wiring Diagram, Perkins 404F-22 Models (ANSI/CSA)
Page 247 June 2022 Service and Repair Manual Electrical Schematic, Perkins 404F-E22T Models (ANSI/CSA)
Page 248 Service and Repair Manual June 2022 Electrical Sch emati c, Perki ns 40 4F -22 Mo dels (ANSI/CSA) Electrical Schematic, Perkins 404F-E22T Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 249 June 2022 Service and Repair Manual Electrical Schematic, Perkins 404F-E22T Models (ANSI/CSA) Part No. 1268555GT ® -62/40...
Page 250 Service and Repair Manual June 2022 Electrical Schematic, Perkins 404F-E22T Models (ANSI/CSA)
Page 251 June 2022 Service and Repair Manual Ground Control Box Terminal Strip Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA)
Page 252 Service and Repair Manual June 2022 Grou nd Co ntr ol Box Ter minal St rip Wiri ng Dia gra m, Pe rkins 4 04 F-2 2 M odels (ANSI/CSA) Ground Control Box Terminal Strip Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA) ®...
Page 253 June 2022 Service and Repair Manual Grou nd Co ntr ol Box Switch Pa nel Wiri ng Dia gra m, Pe rkins 404 F-2 2 M odels (ANSI/CSA) Ground Control Box Switch Panel Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA) Part No. 1268555GT ®...
Page 254 Service and Repair Manual June 2022 Ground Control Box Switch Panel Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA)
Page 255 June 2022 Service and Repair Manual Platform Control Box Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA)
Page 256 Service and Repair Manual June 2022 Platfor m Cont rol Box Wiring Diagr am, Perkins 40 4F -22 Mod els (ANSI/CSA) Platform Control Box Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA) ® -62/40 Part No. 1268555GT...
Page 257 June 2022 Service and Repair Manual Platfor m Cont rol Box Switch Pan el Wirin g Diag ra m, Perki ns 4 04F -22 Mo dels (ANSI/CSA) Platform Control Box Switch Panel Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA) Part No. 1268555GT ®...
Page 258 Service and Repair Manual June 2022 Platform Control Box Switch Panel Wiring Diagram, Perkins 404F-E22T Models (ANSI/CSA)
Page 259 June 2022 Service and Repair Manual Electr ica l Sch em ati cs – AS an d CE M od els Electrical Schematic, Ford MSG-425 EFI Models (AS/CE)
Page 260 Service and Repair Manual June 2022 Electrical Sch emati c, F ord MSG- 425 EFI Mod els (AS/CE) Electrical Schematic, Ford MSG-425 EFI Models (AS/CE) ® -62/40 Part No. 1268555GT...
Page 261 June 2022 Service and Repair Manual Electrical Schematic, Ford MSG-425 EFI Models (AS/CE) Part No. 1268555GT ® -62/40...
Page 262 Service and Repair Manual June 2022 Electrical Schematic, Ford MSG-425 EFI Models (AS/CE)
Page 263 June 2022 Service and Repair Manual Ground Control Box Terminal Strip Wiring Diagram, Ford MSG-425 EFI Models (AS/CE)
Page 264 Service and Repair Manual June 2022 Grou nd Co ntr ol Box Ter minal St rip Wiri ng Dia gra m, For d MSG -42 5 EFI Mo dels (AS/CE) Ground Control Box Terminal Strip Wiring Diagram, Ford MSG-425 EFI Models (AS/CE) ®...
Page 265 June 2022 Service and Repair Manual Grou nd Co ntr ol Box Switch Pa nel Wiri ng Dia gra m, For d MSG -42 5 EFI Mo dels (AS/CE) Ground Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (AS/CE) Part No.
Page 266 Service and Repair Manual June 2022 Ground Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (AS/CE)
Page 267 June 2022 Service and Repair Manual Platform Control Box Wiring Diagram, Ford MSG-425 EFI Models (AS/CE)
Page 268 Service and Repair Manual June 2022 Platfor m Cont rol Box Wiring Diagr am, Fo rd MSG- 425 E FI M odels (AS/CE) Platform Control Box Wiring Diagram, Ford MSG-425 EFI Models (AS/CE) ® -62/40 Part No. 1268555GT...
Page 269 June 2022 Service and Repair Manual Platfor m Cont rol Box Switch Pan el Wirin g Diag ra m, F ord MSG- 425 EFI Mod els (AS/CE) Platform Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (AS/CE) Part No. 1268555GT ®...
Page 270 Service and Repair Manual June 2022 Platform Control Box Switch Panel Wiring Diagram, Ford MSG-425 EFI Models (AS/CE)
Page 271 June 2022 Service and Repair Manual Electrical Schematic, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE)
Page 272 Service and Repair Manual June 2022 Electrical Sch emati c, Deu tz 20 11 L03i / Perkin s 40 4D-2 2 M odels (AS/CE) Electrical Schematic, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE) ® -62/40 Part No. 1268555GT...
Page 273 June 2022 Service and Repair Manual Electrical Schematic, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE) Part No. 1268555GT ® -62/40...
Page 274 Service and Repair Manual June 2022 Electrical Schematic, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE)
Page 275 June 2022 Service and Repair Manual Ground Control Box Terminal Strip Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE)
Page 276 Service and Repair Manual June 2022 Grou nd Co ntr ol Box Ter minal St rip Wiri ng Dia gra m, De utz 2 011 L03i / Perki ns 4 04D- 22 Models (AS/CE) Ground Control Box Terminal Strip Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE) ®...
Page 277 June 2022 Service and Repair Manual Grou nd Co ntr ol Box Switch Pa nel Wiri ng Dia gra m, D eutz 201 1 L0 3i / Pe rkins 4 04D- 22 Mod els (AS/CE) Ground Control Box Switch Panel Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE) Part No.
Page 278 Service and Repair Manual June 2022 Ground Control Box Switch Panel Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE)
Page 279 June 2022 Service and Repair Manual Platform Control Box Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE)
Page 280 Service and Repair Manual June 2022 Platfor m Cont rol Box Wiring Diagr am, Deutz 20 11 L 03i / P erkins 404D -22 Mo dels (AS/CE) Platform Control Box Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE) ®...
Page 281 June 2022 Service and Repair Manual Platfor m Cont rol Box Switch Pan el Wirin g Diag ra m, Deu tz 2 011 L03i / Perkin s 40 4D-2 2 M odels (AS/CE) Platform Control Box Switch Panel Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE) Part No.
Page 282 Service and Repair Manual June 2022 Platform Control Box Switch Panel Wiring Diagram, Deutz 2011 L03i / Perkins 404D-22 Models (AS/CE)
Page 283 June 2022 Service and Repair Manual Electrical Schematic, Deutz TD 2.2 L3 Models (CE)
Page 284 Service and Repair Manual June 2022 Electrical Sch emati c, Deu tz TD 2.2 L3 Mod els (CE) Electrical Schematic, Deutz TD 2.2 L3 Models (CE) ® -62/40 Part No. 1268555GT...
Page 285 June 2022 Service and Repair Manual Electrical Schematic, Deutz TD 2.2 L3 Models (CE) Part No. 1268555GT ® -62/40...
Page 286 Service and Repair Manual June 2022 Electrical Schematic, Deutz TD 2.2 L3 Models (CE) Z®-6 2/40 Part No. 126 855 5GT Service a nd Re pair Ma nual June 2022...

This manual is also suitable for:

Genie z-40

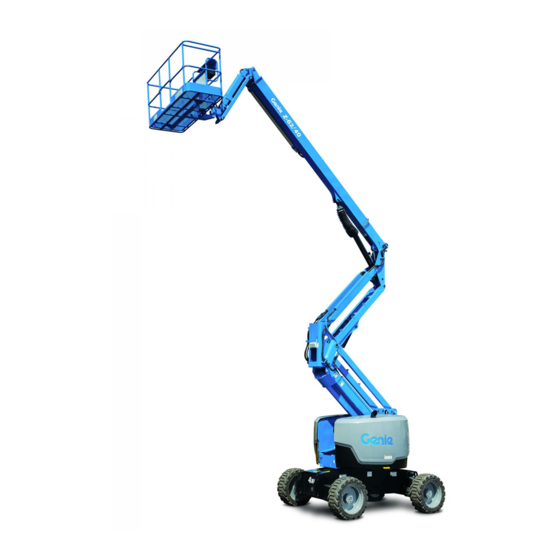

Terex Genie Z-62 Service And Repair Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Terex Genie Z-62

Summary of Contents for Terex Genie Z-62

This manual is also suitable for:

Table of Contents
