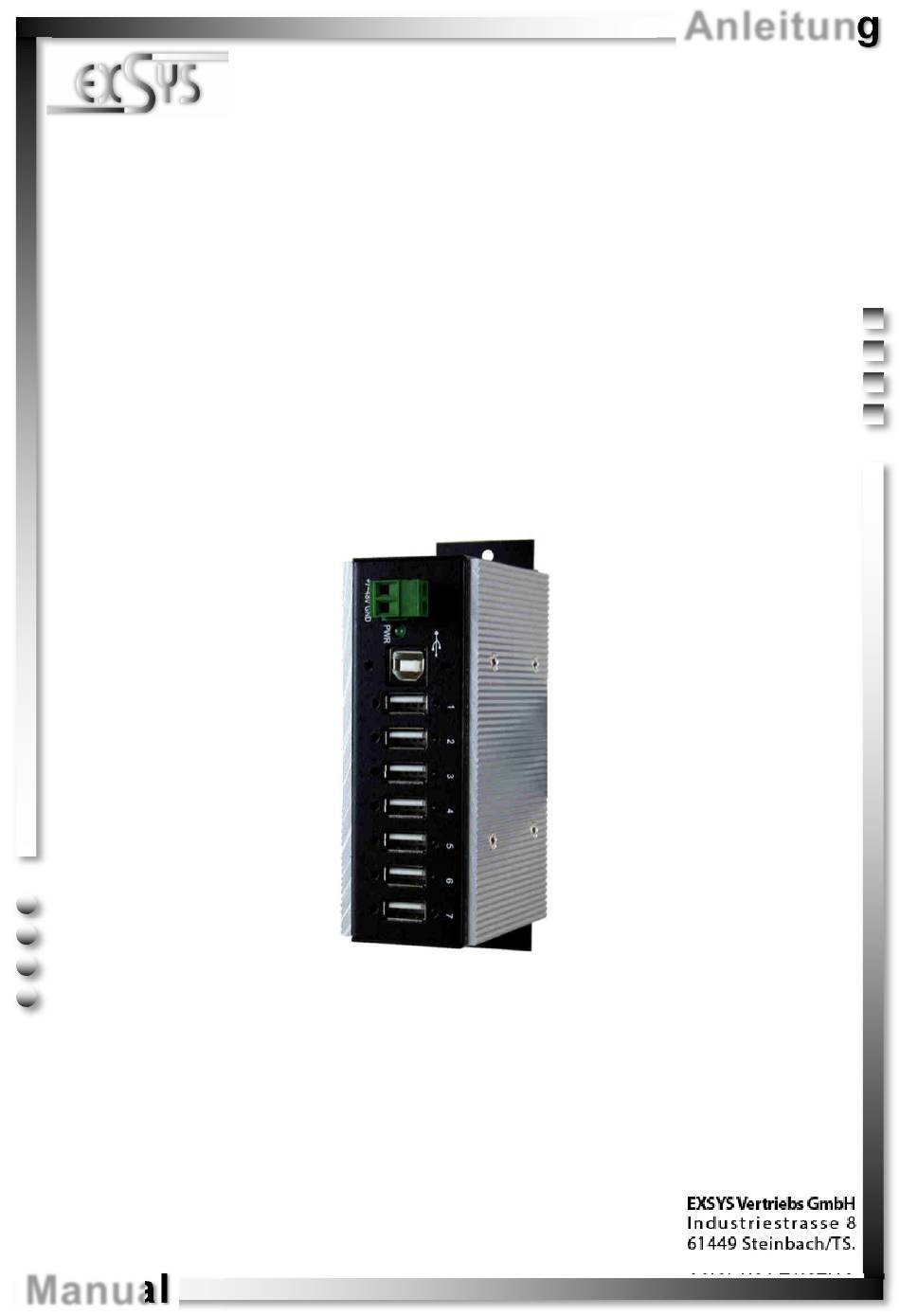

- Page 1 Anleitung EX-1177HMVS-WT 7 Port USB 2.0 Metall HUB (DIN-Rail) mit 15KV ESD Überspannungsschutz und erweitertem Temperaturbereich 7 Port USB 2.0 Metal HUB (DIN-Rail) with 15KV ESD Surge Protection and extended Temperature Range Vers. 1.0 / 21.02.18 Manual...
-
Page 2: Table Of Contents
3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 3.3 Jumper Settings ························································································ 10 Hardware Installation ··········································································· 11 Driver Installation ················································································ 11 Cleaning ··························································································· 11 Technical Information ·········································································· 12 Technical Drawing ·············································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1177HMVS-WT ist ein USB 2.0 Metall HUB für bis zu 7 Endgeräte. Der Hub ist mit 7 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Jeder Anschluss an der EX-1177HMVS-WT ist zu- sätzlich verschraubbar. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
+7V - 48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 48V USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
3.3 Jumper Einstellungen Die EX-1177HMVS-WT wird mit der Einstellung Self-Power ausgeliefert. Sie haben aber die Möglichkeit die EX-1177HMVS-WT mit Bus-Power zu versorgen. Dafür müs- sen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. Nun müs- sen Sie den Jumper JP1 von T (Terminal Block) auf U (USB) setzen. -
Page 6: Hardware Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Technische Daten
-40° bis 85° Celsius Lagertemperatur: -40° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +48 Volt Abmessung: 113,00 x 61,53 x 36,30 mm Gewicht: 600g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description

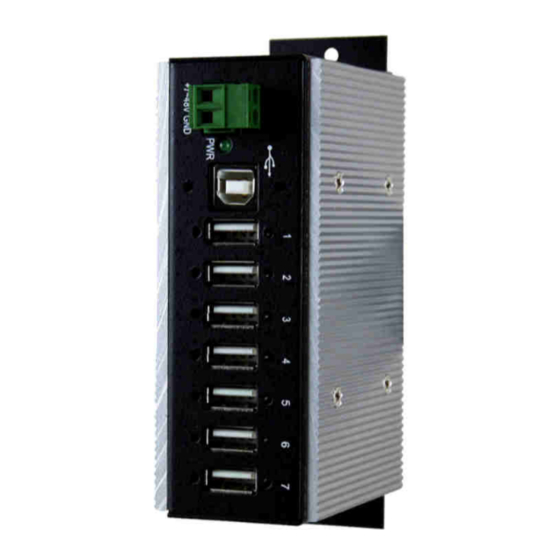

EX-1177HMVS-WT 1. Description The EX-1177HMVS-WT is a plug & play high-speed USB 2.0 metal hub for 7 USB de- vices. The EX-1177HMVS-WT provides 7 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. Each port of the EX-1177HMVS- WT is additionally screw lock. -
Page 9: Layout, Connections & Jumper Settings
+7V - 48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 48V USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Jumper Settings
The EX-1177HMVS-WT comes with the setting Self-Power. You also have the possi- bility the EX-1177HMVS-WT to supply with Bus-Power. For this you open the case with the four screws on both sides. Then you must set the jumper JP1 from T (Terminal Block) to U (USB). -
Page 11: Hardware Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
-40°F to 185°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +48 Volt Size: 113,00 x 61,53 x 36,30 mm Weight: 600g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
