Item Symbol
1
2
3
4
5
6
7
099-005376-EW501
18.07.2014
Description 0
7-pole connection socket (digital)
For connecting digital accessory components
Switching cabinet
Robot interface, Tetrix / Phoenix / alpha Q, RINT X12
Industrial bus interface, Tetrix / Phoenix / alpha Q, BUSINT X11
Interface casing
Connection cable, 7-pole
Connection between switching cabinet and power source
Connection lead
Connection between interface casing and switching cabinet
Design and function

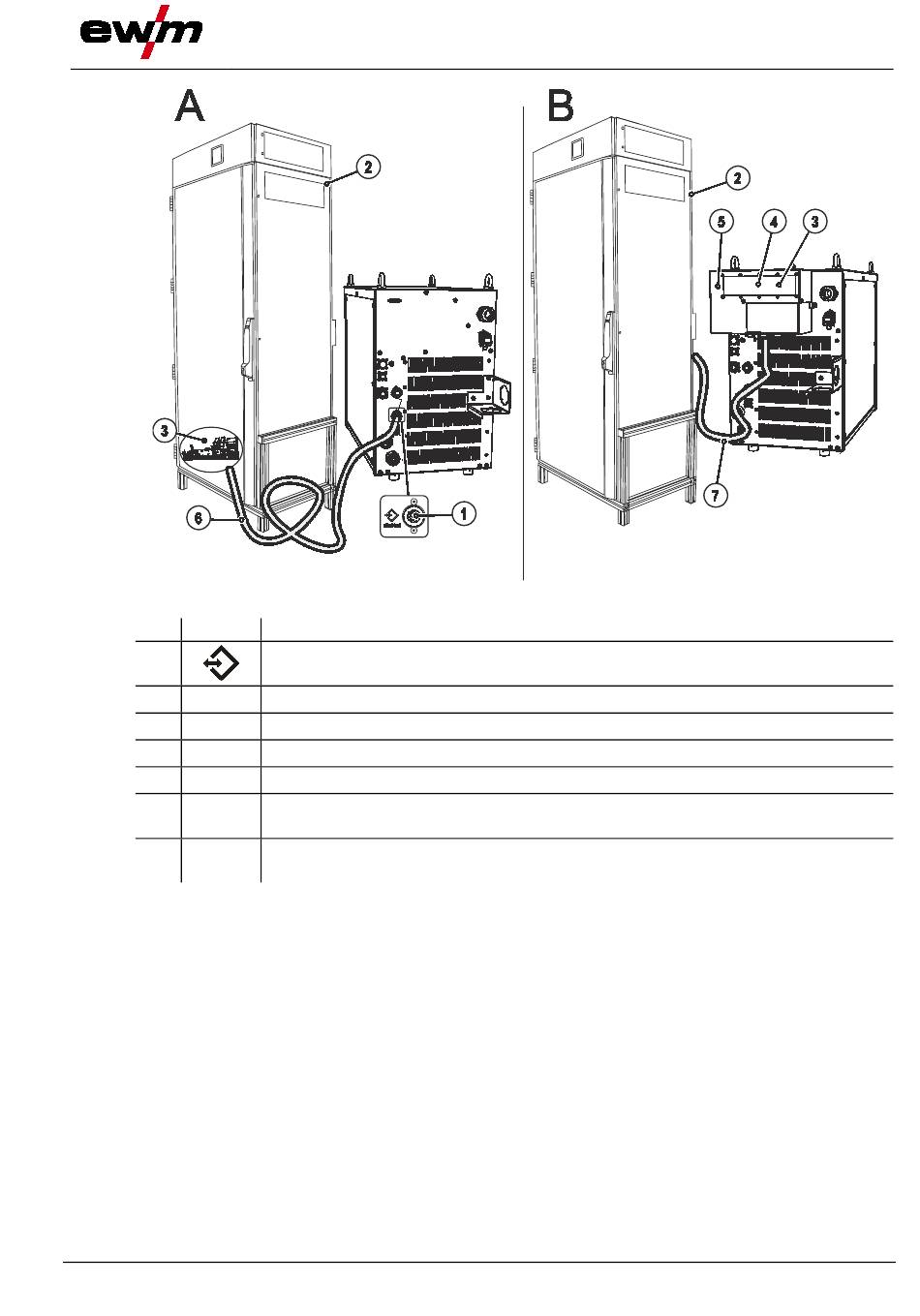

Figure 5-11
Interfaces
