Centronic EasyControl
EC541A-II
Assembly and Operating Instructions
en
Hand-held transmitter
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
4034 630 195 0 14/07/2022
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Becker Centronic EasyControl EC541A-II
Summary of Contents for Becker Centronic EasyControl EC541A-II
- Page 1 Assembly and Operating Instructions Hand-held transmitter Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 4034 630 195 0 14/07/2022 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General .................... 3 Warranty .................... 3 Safety instructions ................... 4 Intended use ................... 5 Explanation of displays and buttons ............ 6 Explanation of functions ................ 6 Programming the transmitter .............. 7 Installing the wall bracket................ 8 Changing batteries................... 9 Cleaning.................... -
Page 3: General
General You can control one or more roller shutter or sun protection systems with this transmitter. This device is exceptionally easy to use. Please observe these Assembly and Operating Instructions when installing and setting up the equipment. Explanation of pictograms CAUTION indicates a hazardous situation CAUTION which, if not avoided, could result in in-... -
Page 4: Safety Instructions
Safety instructions General information • Please keep the instruction manual safe! • Only use in dry rooms. • Only use unmodified original parts from the control unit manufacturer. • Keep children away from control units. • Observe all pertinent country-specific regulations. •... -
Page 5: Intended Use
Intended use The transmitter described in these instructions must only be used for operat- ing Centronic-compatible radio drives and radio control units. • Please note that radio-controlled systems may not be used in areas with a high risk of interference (e.g. hospitals, airports). •... -
Page 6: Explanation Of Displays And Buttons

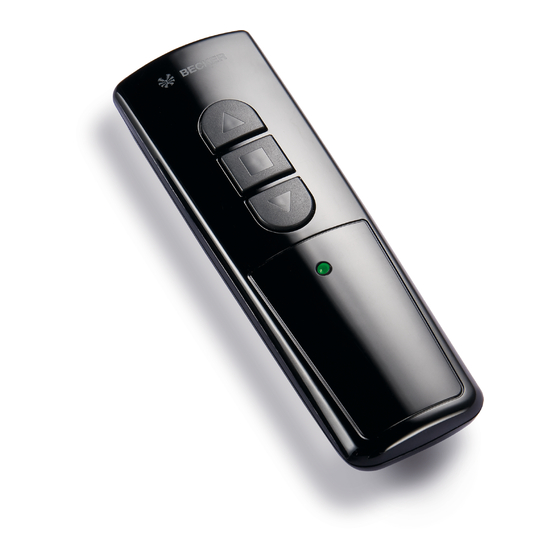

Explanation of displays and buttons 1. UP button 5. Programming button 2. STOP button 6. Labelling field 3. DOWN button 7. Type plate 4. Channel indicator lamp Explanation of functions Channel The channel of a transmitter can be programmed into one or more receivers. One receiver is operated through an individual command, several receivers through a group command. -
Page 7: Programming The Transmitter
Channel indicator lamp A radio signal is indicated by the channel indicator lamp lighting up. When the battery starts to lose power, the channel indicator lamp flashes when transmit- ting. The transmission strength and the radio range decrease as battery power declines. -
Page 8: Installing The Wall Bracket
2) Programming additional transmitters Press the programming button of the master transmitter until the re- ceiver confirms. Then press the programming button of the new transmitter until the re- ceiver confirms. Now press the programming button of the new transmitter again. The receiver confirms successful programming. -
Page 9: Changing Batteries
Changing batteries You will find the appropriate battery type in the "Technical data" chapter. Cleaning Only clean the device with a suitable cloth. Do not use aggressive cleaning agents that may damage the surface. 9 - en... -
Page 10: Technical Data
Technical data Rated voltage 3 V DC Battery type CR 2430 Degree of protection IP 20 Permissible ambient temperature -10 °C to +55 °C Maximum emitted transmission output ≤ 3 mW Radio frequency 915.3 MHz The maximum transmitter range on and in the building is up to 15 m, and up to 150 m in the open.
