Summary of Contents for Bizerba FW N22

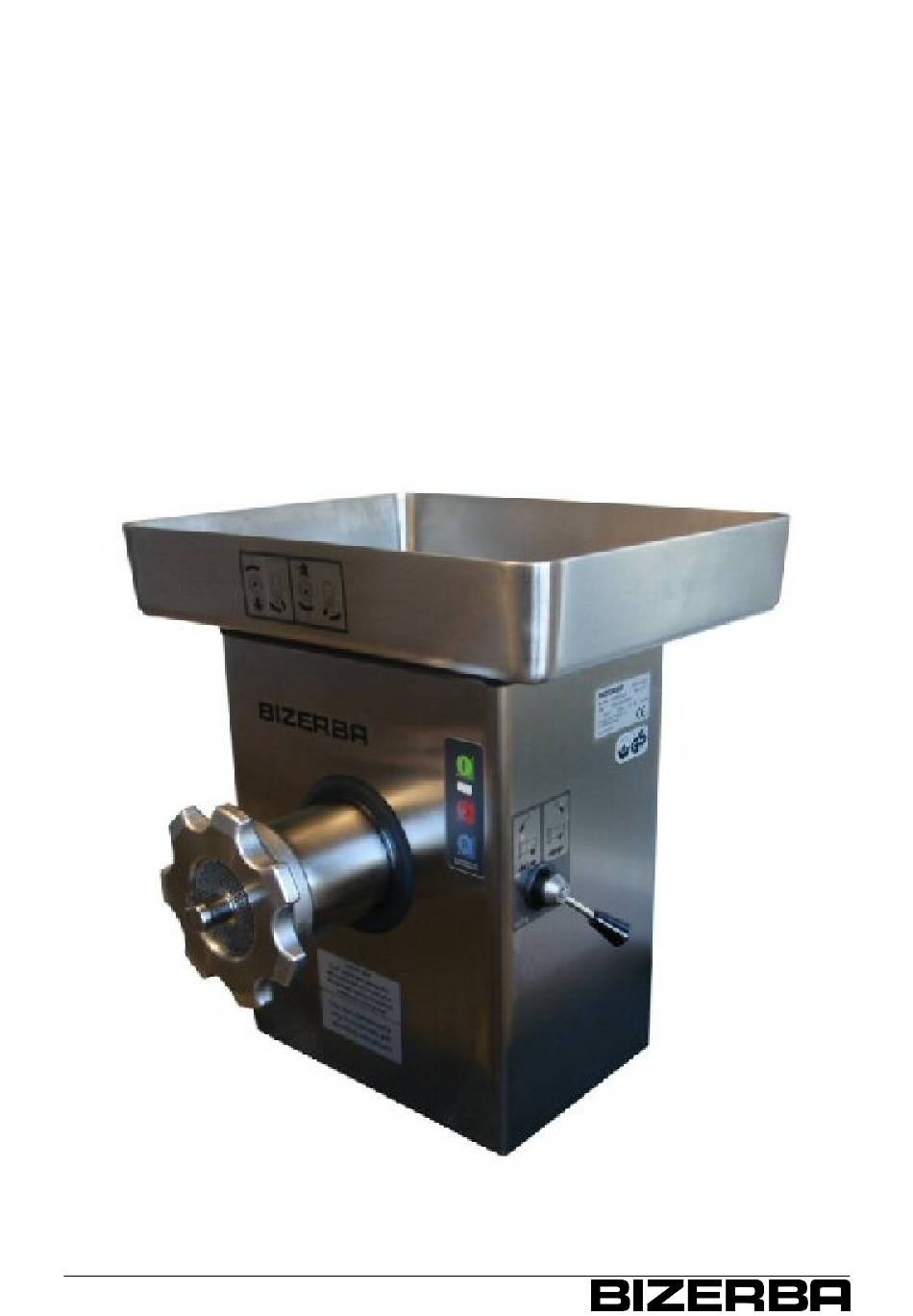

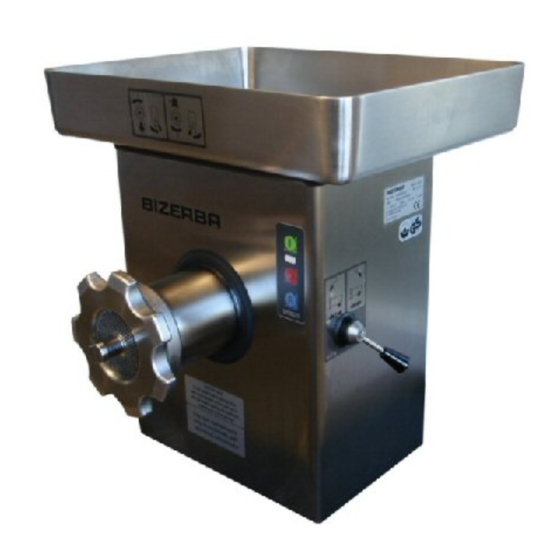

- Page 1 Mincer FW N22 / FW N82 Instruction manual 6.047.98.5.10.20 en...
- Page 2 Alle Rechte vorbehalten All rights reserved Tous droits réservés Reservados todos los derechos Tutti i diritti riservati Bizerba SE & Co. KG, 72336 Balingen Postfach 10 01 64 72301 Balingen, Germany Telephone (+49 7433) 12-0, Fax (+49 7433) 12-2696 E-mail: marketing@bizerba.com Internet: www.bizerba.com...
-
Page 3: Table Of Contents
Instruction manual FW N22 / FW N82 Table of Contents Table of Contents About these instructions .................. Safe-keeping .................. Target group .................. Symbols used .................. Warnings .................... About this machine ..................... Intended use.................. ... - Page 4 Table of Contents Instruction manual FW N22 / FW N82 Mincing set ................... Troubleshooting .................... Fault description ................... Procedure ..................... Maintenance...................... Preparation for cleaning ............... Removing components................. Cleaning .................... Cleaning schedule ................ ...
-
Page 5: About These Instructions
It is recommended that installation, start-up as well as initial training on how to operate, clean, maintain and service the device are provided by the responsible Bizerba customer ser- vice or Bizerba specialist. -
Page 6: Warnings
About these instructions Instruction manual FW N22 / FW N82 Information This information is intended for better understanding. Warnings Warnings are divided into danger levels by the signal word above the warning symbol. Structure of warnings and meaning of signal words are described in these instructions as fol- lows. -
Page 7: About This Machine
Instruction manual FW N22 / FW N82 About this machine About this machine Intended use This mincer is intended for use at work only. It must only be operated by instructed personnel over the age of 14. [} 5] It is used for cutting and mixing meat, vegetables or similar food to produce e.g. minced meat, sausage meat. - Page 8 Blue key <R> non-engaging = Backwards run if blocked/congested. Type designations and versions: FW N22 = Mincer with 2-part cutting set, Enterprise system FW N82 = Mincer with 5 or 3-part cutting set, Unger system incl. flange Add. equipment N = stainless steel Add.
-
Page 9: Names Of Components
Complete mincer insert consisting of: Cap nut Worm shaft Perforated disk Worm housing Plate (only for FW N22) 2.2.2 Accessories Only use the original Bizerba spare parts and accessories in order to en- sure safe and trouble-free operations. 6.047.98.5.10.20 en-US 9 / 40... -
Page 10: Directives
About this machine Instruction manual FW N22 / FW N82 Perforated disk (Ø optional) Spacer rings width 18 mm and 32 mm for FW N82 Round brush Stomper Lever to loosen or fasten cap nut and screw-in cap, also used as extractor Fig. 2: Accessories... -
Page 11: Disposal Of The Machine / Environmental Protection
To ensure that the machine is recycled environmentally friendly, return the machine to the manufacturer or the dealer after intended use has expired. Naturally, Bizerba and its dealers will take back free of charge old machines no longer in op- eration. -
Page 12: Safety Instructions
– Protective devices may not be removed, modified or bypassed. DANGER Open the electrical installation area! danger to life due to electric current – The electrical installation area may only be opened by Bizerba Ser- vice. – Pull power plug before moving the machine. WARNING Unauthorized persons! Serious injuries to fingers and hands and damage to health. -
Page 13: Safety Instructions For Transport And Installation
Instruction manual FW N22 / FW N82 Safety instructions Non-ionizing radiance is not generated intentionally, but is a technical effect caused through electrical equipment: e.g. electric motors, high-voltage cables or magnetic coils. Safety instructions for transport and installation WARNING Incorrect supply voltage! Destruction of electric components, fire hazard. -
Page 14: Safety Instructions For Cleaning
– Risk of crushing when installing the worm housing. Information plates on machine To dismantle or assemble the mincing set of the FW N22, the user needs to proceed as per symbol order 1 - 6 on the plate attached to the filler tray. - Page 15 Instruction manual FW N22 / FW N82 Safety instructions Disassembly: Loosen cap nut Unlock the locking lever by moving it to the left Pull out mincer completely Fig. 3: Plate on FW N22 Assembly: Insert mincer completely Lock by moving the locking lever to the right...
-
Page 16: Installation
Installation and assembly It is recommended that installation, start-up as well as initial training on how to operate, clean, maintain and service the device are provided by the responsible Bizerba customer ser- vice or Bizerba specialist. Servicing and repair works must be performed by Bizerba authorized specialists only. -
Page 17: Electrical Connection
Instruction manual FW N22 / FW N82 Installation Electrical connection Information on identification plate Bizerba logo BIZERBA Machine type Model FW N22, FW N82 Machine description Meat Mincer Machine number Production code BJ ..IP rating IP45 Electrical data see identification plate Manufacturer's address Bizerba SE &... -
Page 18: Start-Up
Start-up Putting into operation, as well as instructing in operation, cleaning, maintenance and servic- ing is carried out by the relevant Bizerba customer services office or the Bizerba specialist. Use of lubricants in the production process. Substances not intended to get in contact with food could be present on the surfaces of the machine. -
Page 19: Switching The Machine Off
Instruction manual FW N22 / FW N82 Installation Press <I>. The worm hub or blade has to be turned in the direction of the arrow. Press <O>. If the direction is incorrect, have the po- larity reversed by Bizerba Customer Ser- vices or professional electrician. -
Page 20: Machine And Operating Elements
Machine and operating elements Instruction manual FW N22 / FW N82 Machine and operating elements Operation keys Switch on<I> (green) machine Lamp (white) <O> (red) switch off machine <R> (blue) not engaging, reverse run Fig. 7: Operation keys The drive is switched on by pressing the green button. -
Page 21: Locking Lever
Instruction manual FW N22 / FW N82 Machine and operating elements Locking lever To disengage or install the mincer or worm housing, the lock has to be released or closed by activating the lever. Move the lever to the left. -
Page 22: Operation
Operation Instruction manual FW N22 / FW N82 Operation Setting up the cutting set In general, make sure to use only cutting sets supplied or recommended by Bizerba! Only install cutting sets belonging to the same system or make. For 3 or 5-part cutting sets (system Unger) with flange, use e.g. parts of L +W company or Christ. -
Page 23: Checking The Cutting Set
Instruction manual FW N22 / FW N82 Operation 2-part cutting set 22 (Enterprise system) with screw-in cap Blade 4 wings Perforated disk 3mm Ø or 4.5 mm Ø coded Screw-in cap (left-thread) The cap can be screwed onto both sides of the perforated disk. -
Page 24: Working With Product
Operation Instruction manual FW N22 / FW N82 If there are rough signs of wear and tear in the form of scratches and nicks on the disk and knives, the cutting set should not be used any longer! Another way of carrying out an inspection is... - Page 25 Instruction manual FW N22 / FW N82 Operation NOTICE Frozen products or products containing remnants of bones! Damages or blockages. – Do not try to mince frozen products or products that contain remnants of bones. Check that the mincer has been mounted properly and is locked into po- sition (right hand side).
-
Page 26: Mincing Set
Operation Instruction manual FW N22 / FW N82 Blockage Press <O> (red) immediately. The drive motor is switched off. Press <R> (blue) for max. 3 sec. Drive motor runs backwards for short time. Fig. 14: Operating keys This can be repeated 3 - 5 times. - Page 27 Instruction manual FW N22 / FW N82 Operation Disassembly Mincer with 3 to 5-part cutting set: Unlock (left). Remove the mincer. Fig. 16: Remove the mincer Mincer with 2-part cutting set: Slightly loosen the cap nut with lever (accessories). Unlock (left).
-
Page 28: Troubleshooting
Switch off machine immediately if untypical noises are heard or if there is a suspected risk of injury. Call the responsible Customer Service if you are unable to rectify the fault yourself. Please provide the Bizerba customer service with the following information: – Machine type (see identification plate) – Machine number (see identification plate) –... -
Page 29: Maintenance
Instruction manual FW N22 / FW N82 Maintenance Maintenance Preparation for cleaning Clean thoroughly: – before putting into operation – depending on use and application frequency – depending on the ambient temperature – if extremely soiled, several times a day –... - Page 30 Maintenance Instruction manual FW N22 / FW N82 Loosen the connection nut via the lever and unscrew. Fig. 18: Ring groove for locking lever Pull the worm out a little using the lever. Fig. 19: Pull out worm a little Remove cutter set parts.
-
Page 31: Cleaning
Instruction manual FW N22 / FW N82 Maintenance Unlock the locking lever by moving it to the left. Remove the worm housing. Fig. 21: Pull out worm housing Now the machine is ready for cleaning. Cleaning NOTICE High-pressure cleaner! Water penetrating the device damages electric components. -
Page 32: Cleaning Schedule
Maintenance Instruction manual FW N22 / FW N82 Cleaning schedule Work steps Cleaning agents Weighing Cleaning devices Remarks method Preparatory Switch off ma- measures chine, pull out power plug Disassemble according to in- all removable struction manual parts Rough clean-... - Page 33 If cleaning agents are used that have not been recommended by the man- ufacturer, damage can be caused to the machine, which is no longer pro- tected by guarantee. The following cleaning agents can be acquired from the Bizerba customer service: Designation Order no.
-
Page 34: Preparing The Machine For Operation
Push the cutting set parts on to the worm hub. How it is equipped depends on the system [} 22]. Screw the cap nut tight manually or tighten the FW N22 using the lever to do Fig. 23: Mincer port The machine is ready for operation again. 34 / 40... -
Page 35: Care Of Machine, Servicing, Maintenance
– Check if the machine is complete before it is re-started. – Check if components are positioned correctly and firmly. – Only use original Bizerba spare parts and accessories. The mincer can be assembled outside of the machine and then inserted into position as a complete unit. -
Page 36: Technical Data
Technical data Instruction manual FW N22 / FW N82 Technical data Dimensions Fig. 24: FW N22/82 * small tray Outer dimensions (max. space requirement): = 423/365* mm Length = 443/349* mm Width = 478 mm Height desktop- mounted machine Installation area:... -
Page 37: Power Supply
Instruction manual FW N22 / FW N82 Technical data Weight incl. mincer = approx. 43 kg Current types, voltages, = see identification plate power consumption Power supply Technical data of power supply – Mains supply Single-phase alternating current, three-phase alternating current, see identification plate –... -
Page 38: Attachment
Attachment Instruction manual FW N22 / FW N82 Attachment 38 / 40 6.047.98.5.10.20 en-US... -
Page 39: Declaration Of Conformity
EN 61000-6-4:2007 + A1:2011 Responsible for technical documentation: Bizerba SE & Co. KG, Balingen. The basis for the declaration of conformity is the contract documents (Bizerba purchase order documents). In the event of a modification to a machine of the above description that is not coordinated with Bizerba or not carried out by Bizerba, this declaration looses its validity. -
Page 40: Declaration Of Conformity For Plastic Materials With Direct Food Contact
Bizerba SE & Co. KG Wilhelm-Kraut-Straße 65 72336 Balingen, Germany Declaration of conformity for plastic materials with direct food contact We herewith declare that the materials used in the following machine Device type: Mincer Model: FW N22, FW N82 are in conformance with the general requirements of the following directives and laws in the valid version at the time of issuance of this declaration: –...
