ORIGINAL INSTRUCTION

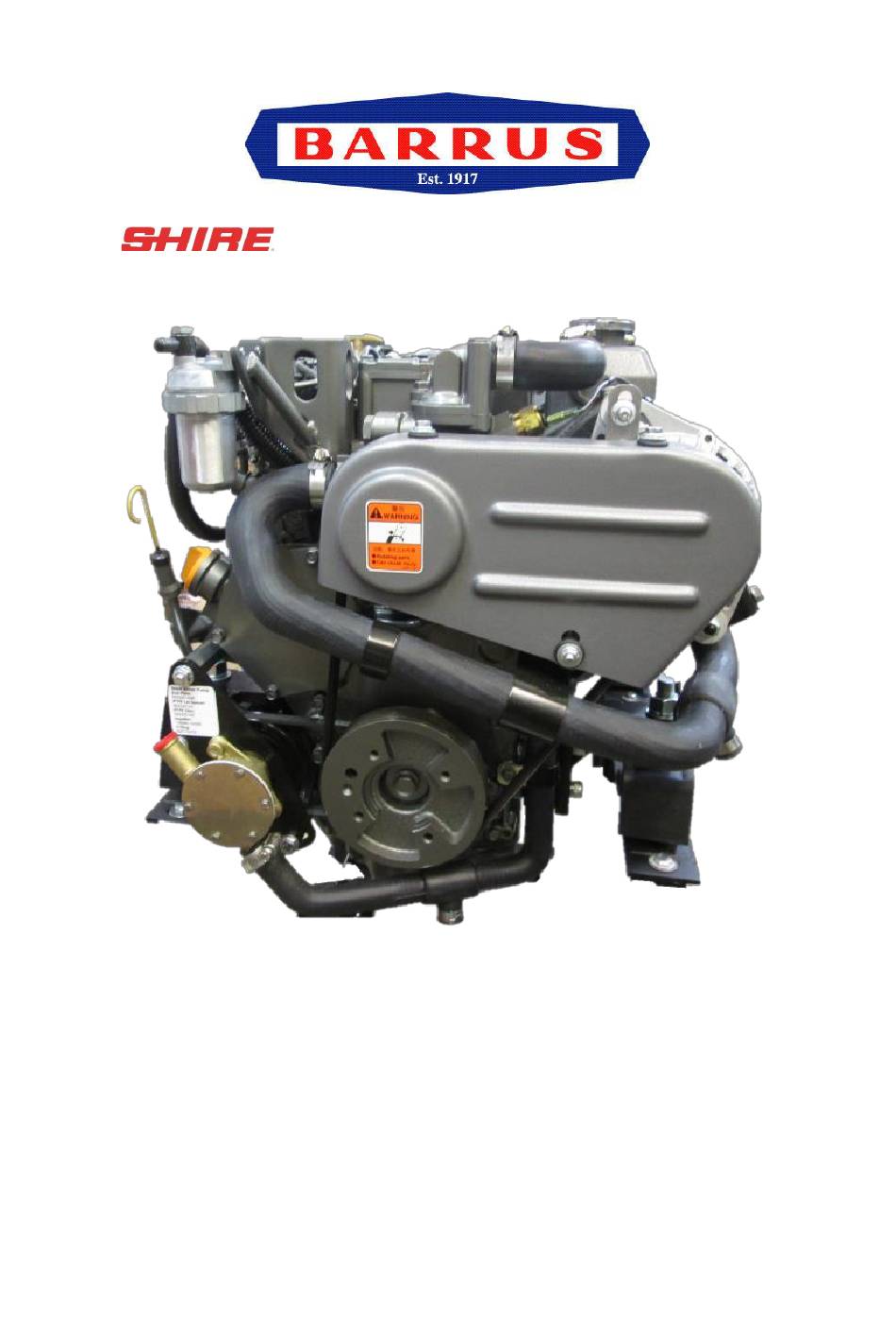

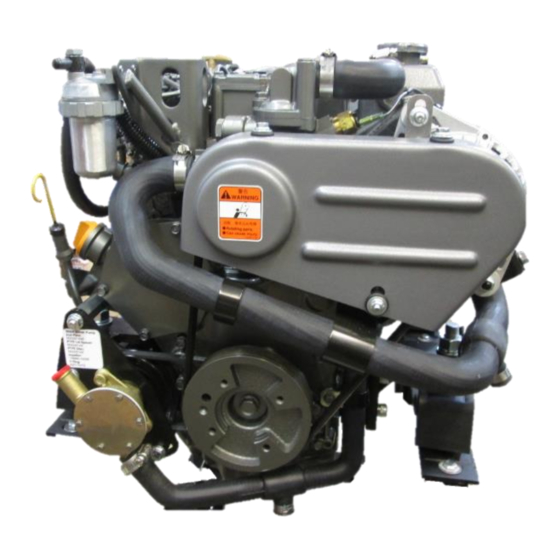

15 YM DB BARNES ENGINE MANUAL
For the following engine model*:
Shire 15 YM DB B
ARNES
Addendum to the Yanmar Marine Engines Manual
*Standard Model, there may be a number of optional extras, or alternative components, that
might be fitted to an engine that are not shown in this book.
RDG603A62 – Issue 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHIRE 15 YM DB BARNES and is the answer not in the manual?

Questions and answers

Summary of Contents for Barrus SHIRE 15 YM DB BARNES

  • Page 1 ORIGINAL INSTRUCTION 15 YM DB BARNES ENGINE MANUAL For the following engine model*: Shire 15 YM DB B ARNES Addendum to the Yanmar Marine Engines Manual *Standard Model, there may be a number of optional extras, or alternative components, that might be fitted to an engine that are not shown in this book.
  • Page 2 SAFETY E.P. Barrus is concerned for your safety. We use safety statements throughout the manual to call your attention to the potential hazards associated with the operation of your Shire engine. Follow the precautions listed throughout the manual before operation, during operation and during servicing/maintenance procedures for your safety, the safety of others and to protect the performance of your engine.
  • Page 3 Engine Details Engine Number: Please enter your engine serial number in the space provided above. Please quote the engine identification number during any enquiry or when ordering spare parts. RDG603A62 – Issue 2 Page 3 of 19...
  • Page 4 A TRANSFER OF TITLE OCCURS, IT MUST ALWAYS BE HANDED OVER TO THE NEW OWNER. Thank you for purchasing this Shire 15 YM DB Barnes Engine from E.P.Barrus. This manual has been compiled to help you to operate your engine and its associated parts with safety and pleasure.
  • Page 5 Routine maintenance outlined in the Owner’s Manual must be performed using genuine parts in order to maintain warranty coverage. If the customer performs maintenance, Barrus reserves the right to make future warranty coverage possible only with proof of proper maintenance.
  • Page 6 WHAT IS NOT COVERED This limited warranty does not cover routine maintenance items, adjustments, normal wear and tear, damage caused by abnormal use, operation of the product in a manner inconsistent with the recommended operation/duty cycle section of the Owner’s Manual, accident, submersion, improper installation (proper installation specification and techniques are set forth in the Operations and First time running sections in this manual), use of an accessory or part not manufactured or sold by us, or alteration or removal of parts.
  • Page 7: Table Of Contents

    Index Page SECTION 1 – Safety Precautions ..............8 General ....................8 Lifting ...................... 8 Rotating Shafts and Belts ................ 8 Exhaust System ..................9 Launching and Lifting Boats ..............9 Batteries ....................9 SECTION 2 – Control Panel ................ 11 Standard Control Panel .................
  • Page 8: Section 1 - Safety Precautions

    SECTION 1 – Safety Precautions 1. General NOTICE: NEVER PERMIT ANYONE TO OPERATE THE ENGINE WITHOUT PROPER TRAINING. It is the responsibility of the installer/operator to ensure that the finished installation complies with CE Marking, the relevant Health & Safety requirements and the recreational craft directive before commissioning.
  • Page 9: Exhaust System

    The engine and its accessories are not intended to be put into operation until they are integrated into the boat as a whole. No person should be in the engine compartment and the engine cover or deck hatches should be closed whilst the engine is running. 4.
  • Page 10 WARNING: BURN HAZARD! BATTERIES CONTAIN SULPHURIC ACID. NEVER ALLOW BATTERY FLUID TO COME IN CONTACT WITH SKIN, EYES OR CLOTHING. SEVERE BURNS COULD RESULT. MAKE SURE THE CORRECT PERSONAL PROTECTION EQUIPMENT IS WORN. • Batteries can produce explosive gases; keep sparks and flames away from the battery. NO SMOKING •...
  • Page 11: Section 2 - Control Panel

    SECTION 2 – Control Panel 1. Control Panel Overview • The Shire 15 YM engine are supplied with a standard control panel. • The control panel is splash proof but is NOT fully water proof. The control panel needs to be installed in a position where it is protected from water. 2.
  • Page 12: Overall Dimensions Of The Standard Control Panel

    and restart the engine. If the coolant level is correct and the fault is still present, or there is a coolant leak, please contact your local dealer. Stop the engine immediately. Contact your local Oil Pressure Warning Light dealer. Failure to stop the engine may result in permanent engine damage.
  • Page 13: Section 3 - Operation

    Figure 1: Standard Control Panel Dimensions SECTION 3 – Operation RDG603A62 – Issue 2 Page 13 of 19...
  • Page 14: Starting The Engine For The First Time

    NOTICE: REFER TO THE YANMAR MANUAL PRIOR TO STARTING THE ENGINE. 1. Starting the engine for the first time • Remove ignition key. • Ensure all oil and coolant levels are checked. • Ensure both the engine and domestic batteries are connected. All battery master switches must be turned on.
  • Page 15: Standard Control Panel

    regular intervals. Note: Engine must be stopped to carry out this check). • Standard Control Panel Description 1 Tachometer Gauge 2 Hour Meter 3 Water Temperature Warning Light 4 Oil Pressure Warning Light 5 Alternator Charge Warning Light 6 Glow Plug Light 7 Heat Start Button 8 Key Flap and Ignition Switch 9 Stop Button...
  • Page 16: Section 4 - Service Procedure

    SECTION 4 – Service Procedure NOTICE: REFER TO THE YANMAR MANUAL PRIOR TO CARRYING OUT ANY SERVICE OR MAINTENANCE WORK. WARNING: PRIOR TO CARRYING OUT ANY SERVICE OR MAINTENANCE WORK MAKE SURE THE RELEVANT PERSONAL PROTECTION EQUIPMENT IS WORN. 1. Control Panel Maintenance WARNING: REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.
  • Page 17: Section 5 - Wiring Diagrams

    SECTION 5 – Wiring Diagrams 1. Shire to Yanmar Extension Loom RDG603A62 – Issue 2 Page 17 of 19...
  • Page 18: Standard Control Panel Wiring Diagram

    2. Standard Control Panel Wiring Diagram RDG603A62 – Issue 2 Page 18 of 19...
  • Page 19: Section 6 - Afterlife Recycling

    SECTION 6 – Afterlife Recycling When it becomes necessary to dispose of your engine. This may be possible at recycling centre; however, it will likely require careful disassembly first before disposal. For further information please contact your local recycling centres for disposal advice to see what they will accept for disposal.
