Safety Labels and Their Locations
It is important to provide warnings to alert individuals to potential hazards and safety actions . Signs should
state the hazards for the particular application and be legible to the building occupants . Consult the factory or
a factory representative for additional information on signage compliance .
Safety warning labels must be maintained on the infrared heater . Illustrations of the safety labels and their
locations are pictured below . When no longer legible, they must be replaced . Contact either your local
distributor or the product manufacturer for obtaining replacement signs or labels .
FIRE HAZARD. Always maintain published clearances to
combustibles. In locations used for the storage of combustible
materials, signs must be posted.
DANGER D'INCENDIE. Toujours maintenir un dégagement
publié à combustibles. Dans les endroits utilisés pour le stockage
de matériaux combustibles, panneaux doivent être installés.
CLEARANCES TO COMBUSTIBLES - Inches (Millimeters)
Mounting
Side
Length
Angle
Front
Behind
Single Element
24"
0°
16 (407)
16 (407)
33"
45°
47 (1194)
4 (102)
46"
Double Element
24"
0°
28 (712)
28 (712)
33"
45°
86 (2185)
4 (102)
46"
Triple Element
24"
0°
31 (788)
31 (788)
33"
45°
105 (2667)
4 (102)
46"
Heaters mounted on an angle between 0° and 45° must maintain clearances posted for 0° or 45°, whichever is greater.
WARNING
Avoid Serious Injury, Death, or Property Damage.
Maintain Clearances to Combustible to Prevent the Risk of Fire.
Clearances to combustibles must be maintained at
all times in order to prevent the ignition of
combustible materials. In locations used for the
storage of combustible materials, signs must be
posted to specify the maximum permissible stacking height to
maintain the required clearances from the heater to the
combustibles. Signs must either be posted adjacent to the
heater's thermostats or, in the absence of such thermostats, in a
conspicuous location. Clearances are provided on the heater's
safety label and in the heater's Installation, Operation, and
Maintenance manual. Product installation and operation must
comply with applicable standards, codes, and regulations. Post
this tag adjacent to the heater's thermostat or controls before
operating the heater.
- INSTALLER: READ AND POST THIS NOTICE -
F/N: LL001 - Clearance Safety Tag
(Affix adjacent to heater's controller)
SHOCK HAZARD. Disconnect all
supplies before working on any
circuit.
RISQUE D'ÉLECTROCUTION. Débrancher
toutes les alimentations avant d'exécuter des
travaux sur un circuit quelconque.
Heater MUST be properly
grounded prior to operation.
End
Top
Below
HOT. Do not touch any part of
the heater while in operation.
12 (305)
6 (153)
56 (1423)
Read and understand the installation, operating, and maintenance
12 (305)
10 (254)
40 (1016)
instructions thoroughly before installing or servicing this equipment. Failure
to properly apply product may result in property damage, injury, or death.
26 (661)
6 (153)
86 (2185)
26 (661)
10 (254)
86 (2185)
34 (864)
9 (229)
105 (2667)
End
34 (864)
10 (254)
105 (2667)
SIDE VIEW - 0°
F/N: LLECL001a - Clearances to Combustibles Label
California Proposition 65
!
This product can
expose you to
chemicals including
lead and carbon
monoxide, which are known to the
State of California to cause birth
defects or other reproductive harm.
For more information go to
www.P65Warnings.ca.gov.
LL001-XM-07/18 (CDS)
1.0
Top View
AVOID EQUIPMENT
FAILURE. Use supply
wires suitable for 200°C
or equivalent.
ÉVITEZ LES PANNES
D'ÉQUIPEMENT. Employer des fils
d'alimentation adéquats pour
200°C.
Apply proper voltage.
Top
Top
Front
Behind
End
Side
Side
Below
Below
END VIEW - 0°
END VIEW - 45°
LLECL001a-1x-07/20 (XXX)
9
Safety
•

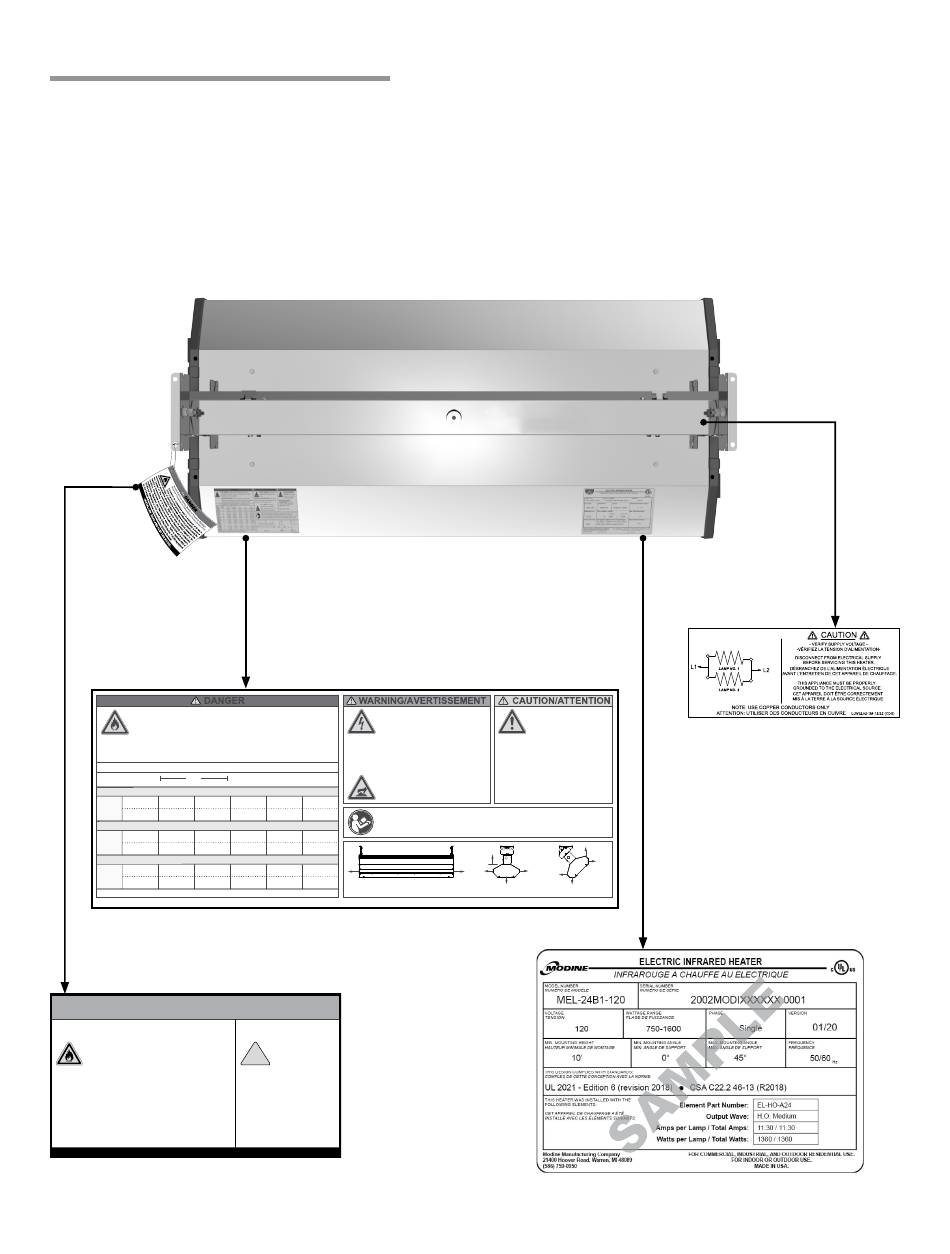

Safety Labels and Their Locations
(Located inside the raceway)
Rating Plate
Electrical Label
