ICP DAS USA BRK Series Quick Start

Hide thumbs Also See for BRK Series:

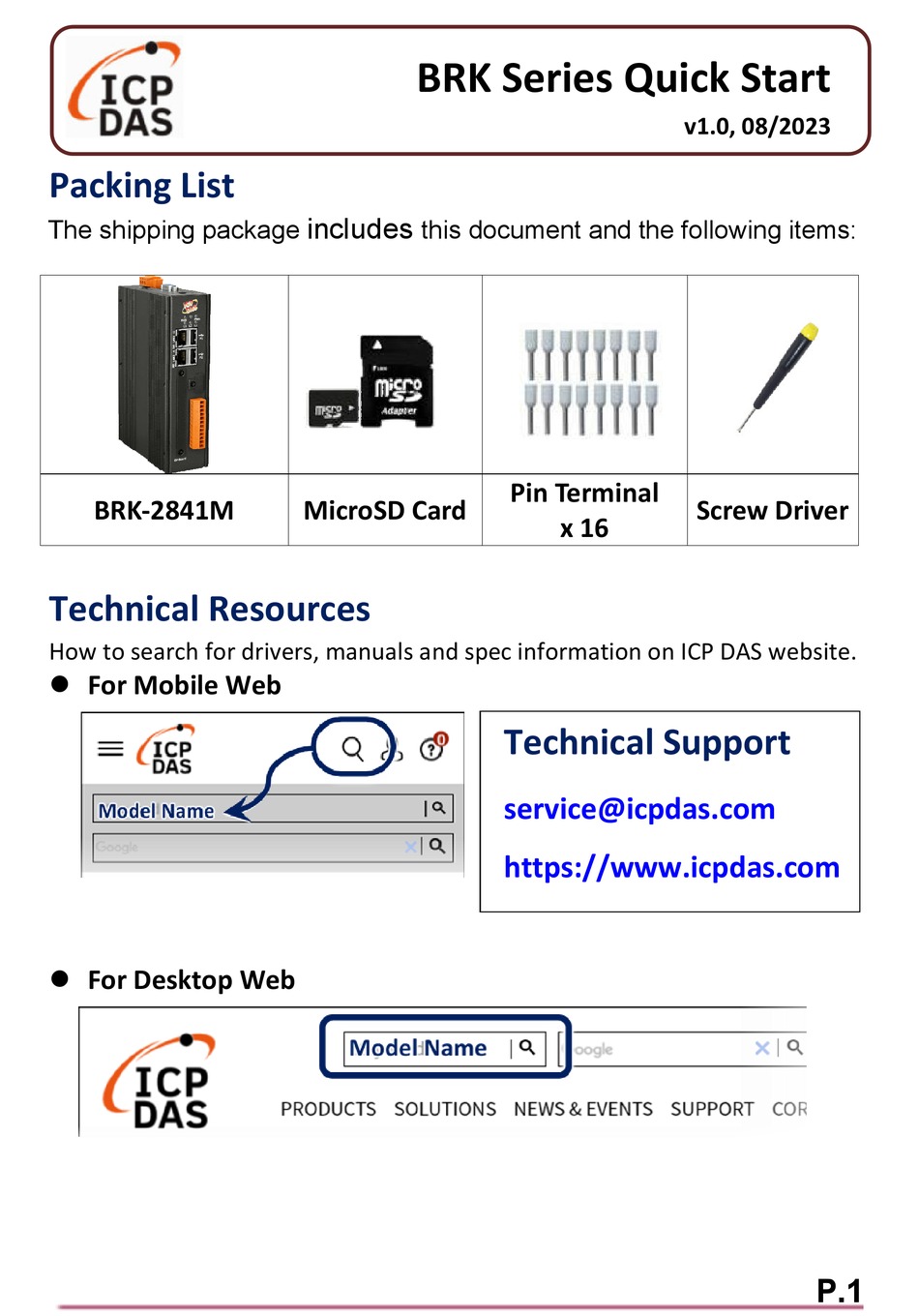

Packing List

The shipping package

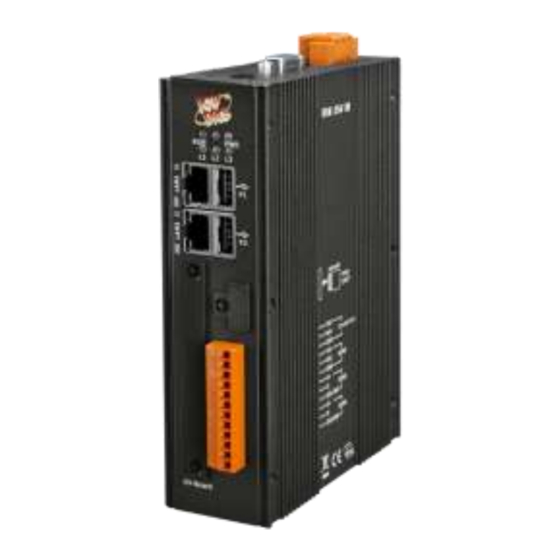

BRK-2841M

Technical Resources

How to search for drivers, manuals and spec information on ICP DAS website.

 For Mobile Web

 For Desktop Web

BRK Series Quick Start

includes

this document and the following items:

MicroSD Card

Pin Terminal

x 16

Technical Support

service@icpdas.com

https://www.icpdas.com

v1.0, 08/2023

Screw Driver

P.1

Table of Contents

Need help?

Do you have a question about the BRK Series and is the answer not in the manual?

Page 1 BRK Series Quick Start v1.0, 08/2023 Packing List includes The shipping package this document and the following items: Pin Terminal BRK-2841M MicroSD Card Screw Driver x 16 Technical Resources How to search for drivers, manuals and spec information on ICP DAS website.
Page 2 Preparations for Devices In addition to the BRK controller (Ex: BRK-2841M) , please prepare the following: 1. Computer: PC/NB Connect to the local network and can set up the network 2. Ethernet Hub or Switch (Ex: NS-205) 3. Power Supply: +12 ~ +48 VDC (Ex: MDR-60-24) Hardware Connection Use LAN2 of BRK-2800 to connect to the PC through a network hub/switch, or directly connect to the PC's network interface.
Page 3 Network Connection Factory Default Settings of BRK 192.168.255.1:8000 Assign BRK-2800 a new IP setting 255.255.0.0 Network Netmask according to your case. 192.168.1.1 Gateway After the first login, root Username change the default Web UI username/passwor Account root Password d to use other functions.
Page 4 Change the default Username/Password in the 【System Setting】【Account Setting】 to use other functions. Click【System Setting】【Network Setting】to change the IP setting by user network. Save the IP setting, restore the PC original IP settings, and type the new IP in the browser to login the Web UI of BRK- 2800.
