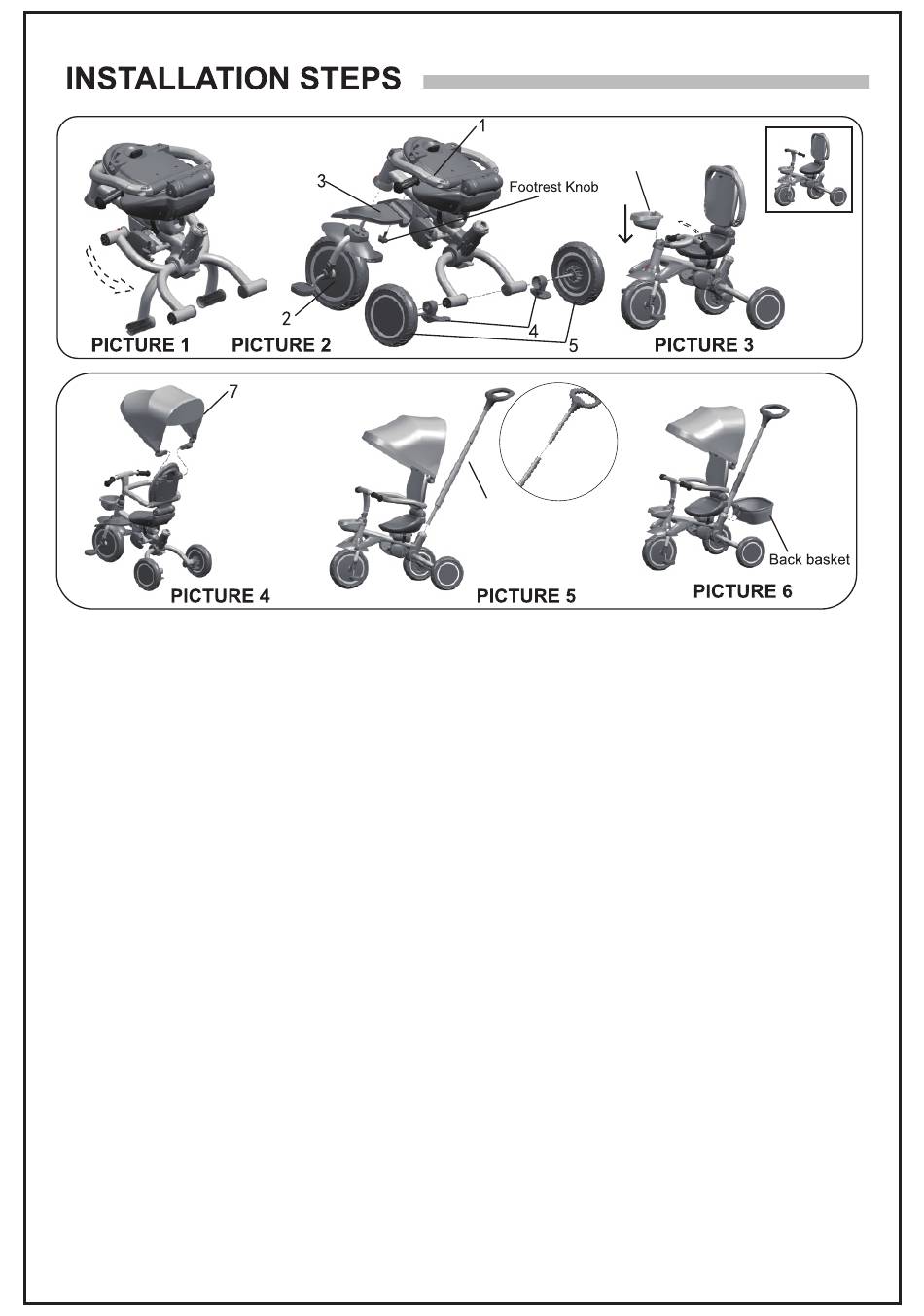

1. Unfolding the U-shaped tube
Unfold the U-shaped tube backwards, following the arrow from picture 1, ensuring the
tube is completely fixed.
2. Installing front/back wheels
As shown in 'PICTURE 2', put the brake pedal 5 into the transverse tube of the rear
wheel frame, then insert the rear wheel 6 into the corresponding hole on brake pedal 5,
completing the installation of the rear wheel.
Note: When installing the brake pedal, ensure you distinguish between the left and the
right – pay attention when fixing the brake pedal onto the right position.
Insert the front wheel 2 into the hole, which is under the head tube of frame 1. To
remove, press the quick release button to remove the front wheel.
3. Installing footrest
Place the footrest 3 under frame 1, using the footrest knob 4 to secure.
4. Unfolding the backrest and handlebar
Pull up the handle on the backside of the backrest, then unfold the backrest to the
appropriate position. Pull up the handlebar to secure.
5. Installing Canopy
Install the canopy as shown in 'PICTURE 4'.
6. Installing push rod
Install the push rod as shown in 'PICTURE 5'.
7. Securing the back basket
As shown in 'PICTURE 6', fix the basket (7) onto the trike, following the track of the
dotted line.
