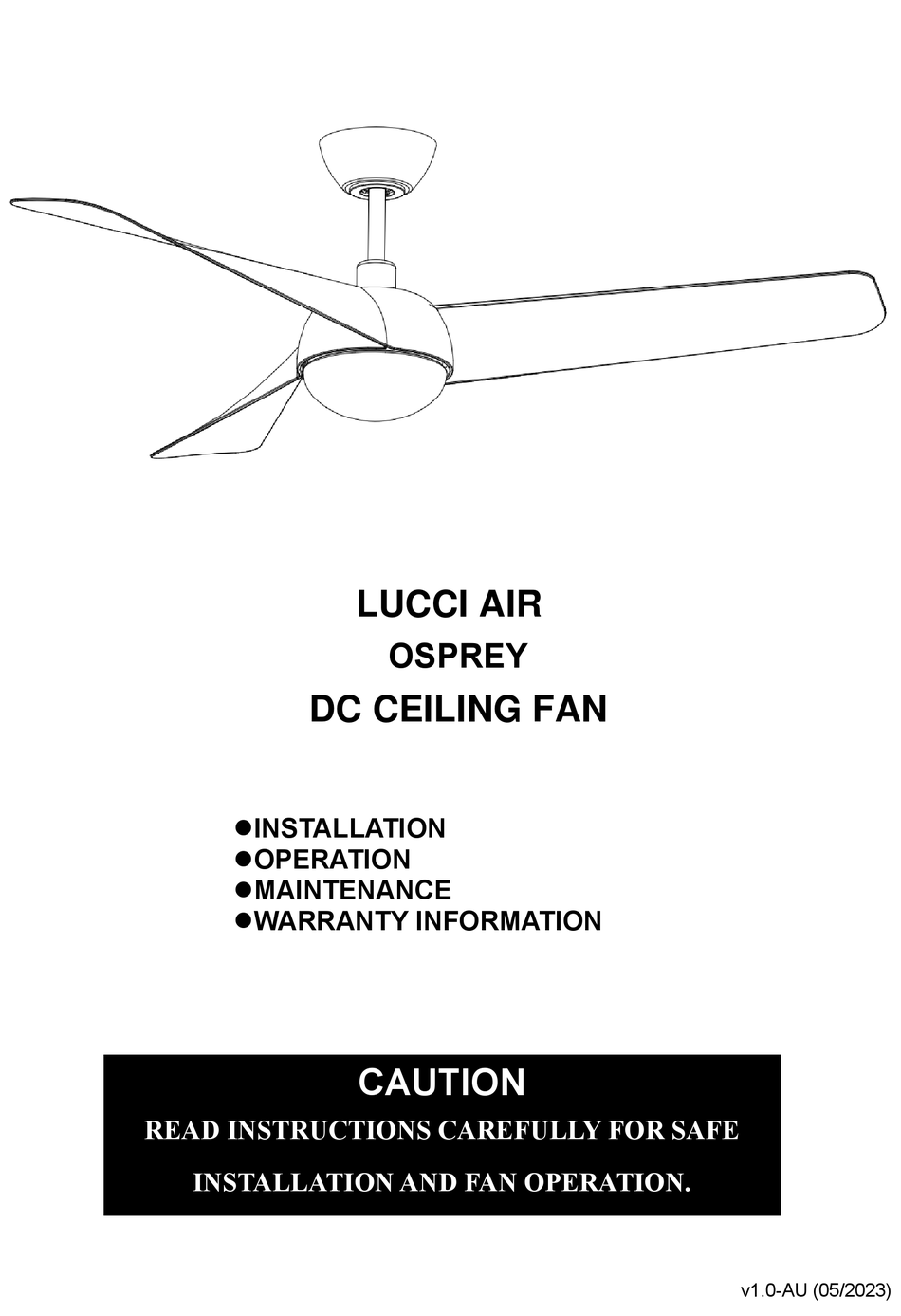

- Page 1 LUCCI AIR OSPREY DC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. v1.0-AU (05/2023)
-
Page 2: Safety Precautions
OSPREY DC Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 OSPREY DC Fan Installation Instructions all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1. A single-pole switch on the active of the receiver input of remote control must also be included in the wiring, and located the same room as the ceiling fan.
-
Page 4: Parts List
OSPREY DC Fan Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth non-scratch surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
OSPREY DC Fan Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 OSPREY DC Fan Installation Instructions INSTALLATION OF BLADE 1. Align the 1 hole on the top of blade with the 1 hole on the rotating member of the top of the fan motor assembly. (Fig.4) to secure the blade onto the fan motor assembly by locking the small screw of blade, (Fig.4) Don’t tighten the small screw of blade, as it need tighten the small screw again after install the big screws of blade on the bottom blades.
- Page 7 OSPREY DC Fan Installation Instructions Fig. 6 6. Ensure all small screws of blades on the top of blades are tightened evenly to reduce the chance of warping or unbalancing. Take care not to over tighten the samll screws of blades, as this can damage the blades INSTALLING THE DOWN ROD (Fig.
- Page 8 OSPREY DC Fan Installation Instructions 2. Loosen the set screws (11) on the down rod coupling housing (8). (Fig. 7.2) Fig. 7.2 3. Carefully feed the fan wires (1) up through the down rod (6). (fig. 7.3) 4. Assemble the down rod (6) into the down rod coupling housing (8), by inserting and line up the down rod coupling housing holes with the down rod holes and insert the hitch pin (9) and secure with the lock clip (10).
- Page 9 OSPREY DC Fan Installation Instructions 6. Insert the decorative cover (7) onto the down rod (6) to cover the down rod coupling housing (8).(Fig. 7.5) Fig. 7.5 7. Insert the canopy cover (12) & canopy (5) over the down rod (6) and install the ball joint (2) and dowel pin (3) back onto the down rod (6) and secure by tightening the set screws (4).
- Page 10 OSPREY DC Fan Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.8) Fig.
- Page 11 OSPREY DC Fan Installation Instructions Fig. 10 INSTALLATION OF BOTTOM COVER If no lamp is required 1. remove the light kit plate from the fan bracket by remove the three screws . 2. align the adapter onto the fan bracket,Mount the adapter onto the fan bracket using the three screws. 3.
- Page 12 OSPREY DC Fan Installation Instructions ELECTRICAL WIRING DIAGRAM THE FAN PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 13) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.
- Page 13 OSPREY DC Fan Installation Instructions Fig. 13 Carefully insert the Remote Receiver above the hanger ball in the remainder spacing in the mounting bracket. Take care not to damage or loosen any of the wiring. (Fig. 14). Fig. 14 12 | P a g e...
-
Page 14: Finishing The Installation
OSPREY DC Fan Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 15: Using Your Ceiling Fan
OSPREY DC Fan Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL 1. Test the remote by touch any button. the LED indication light ring (Cool White) will be lit up at the edge of the remote to indicate that there is power to the remote and it is ready for use to control the fan. 2. - Page 16 OSPREY DC Fan Installation Instructions The LED lamp has a 3-step dimmable function which is controlled by an ON/OFF switch. When the LED light is ON and at 100% brightness, press the light button “ON and then OFF within 3 seconds”, to dim the LED light.
- Page 17 OSPREY DC Fan Installation Instructions RESET TO DEFAULT FOR THE REMOTE CONTROL: Press the button on the remote for 15 seconds within 30 seconds of switching the power ON to the receiver of the ceiling fan. When it exceeds 5 seconds, the LED white indication light ring on the remote edge will flash for twice with full brightness for pairing, keep press the button until exceeds 15 seconds, the LED white indication light ring on the remote edge will flash again, receiver will return to the default factory setting.
-
Page 18: Care And Cleaning
OSPREY DC Fan Installation Instructions NOISE: When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor noise. - Page 19 OSPREY DC Fan Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 20 OSPREY DC Fan Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..…...
