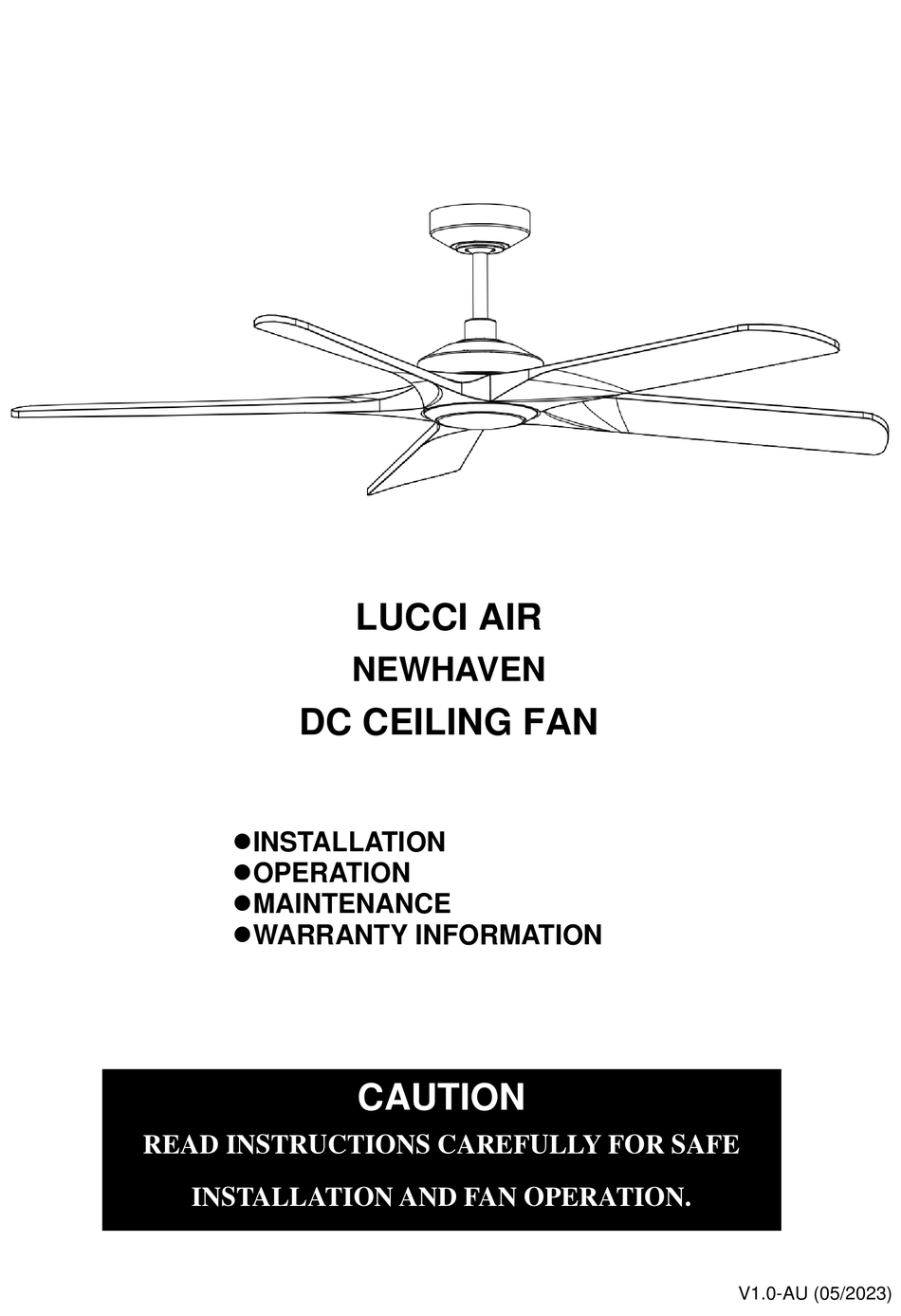

- Page 1 LUCCI AIR NEWHAVEN DC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0-AU (05/2023)
-
Page 2: Safety Precautions
NEWHAVEN DC Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 NEWHAVEN DC Fan Installation Instructions the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
NEWHAVEN DC Fan Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
NEWHAVEN DC Fan Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 NEWHAVEN DC Fan Installation Instructions INSTALLING THE DOWN ROD (Fig. 4) 1. Remove the ball joint (2) and dowel pin (3) by loosening the set screws (4) from the down rod (6). Remove the hitch pin (9) by removing the lock clip (10) (Fig. 4.1). NOTE: Do not discard keep these parts, they are required to reassemble later.
- Page 7 NEWHAVEN DC Fan Installation Instructions Fig. 4.4 Fig. 4.3 6. Insert the decorative cover (7) onto the down rod (6) to cover the down rod coupling housing (8).(Fig. 4.5) 7. Insert the canopy cover (12) & canopy (5) over the down rod (6) and install the ball joint (2) and dowel pin (3) back onto the down rod (6) and secure by tightening the set screws (4).
-
Page 8: Hanging The Fan
NEWHAVEN DC Fan Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.5) Fig. - Page 9 NEWHAVEN DC Fan Installation Instructions INSTALLATION OF LIGHT KIT (Fig. 7) NOTE: The light kit must be installed by a licensed electrician. 1. Loosen the screw (1) from the fan bracket. (Fig. 7) 2. Align the two slot screws with the keyhole slots (2) of the light kit plate. (Fig. 7) 3.
- Page 10 NEWHAVEN DC Fan Installation Instructions INSTALLATION OF BOTTOM COVER (Fig. 9 & Fig.10) If no lamp is required 1. remove the light kit plate from the fan bracket . 2. Orientate the adapter onto the fan bracket, mount the adapter onto the fan bracket using three screws Tighten all three screws.
- Page 11 NEWHAVEN DC Fan Installation Instructions ELECTRICAL WIRING DIAGRAM THE FAN PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 11) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.
- Page 12 NEWHAVEN DC Fan Installation Instructions Fig. 11 Carefully insert the Remote Receiver above the hanger ball in the remainder spacing in the mounting bracket. Take care not to damage or loosen any of the wiring. (Fig. 12). Fig. 12 11 | P a g e...
-
Page 13: Finishing The Installation
NEWHAVEN DC Fan Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 14: Using Your Ceiling Fan
NEWHAVEN DC Fan Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL 1. Test the remote by touch any button. the LED indication light ring (Cool White) will be lit up at the edge of the remote to indicate that there is power to the remote and it is ready for use to control the fan. 2. - Page 15 NEWHAVEN DC Fan Installation Instructions The LED lamp has a 3-step dimmable function which is controlled by an ON/OFF switch. When the LED light is ON and at 100% brightness, press the light button “ON and then OFF within 3 seconds”, to dim the LED light.
- Page 16 NEWHAVEN DC Fan Installation Instructions RESET TO DEFAULT FOR THE REMOTE CONTROL: Press the button on the remote for 15 seconds within 30 seconds of switching the power ON to the receiver of the ceiling fan. When it exceeds 5 seconds, the LED white indication light ring on the remote edge will flash for twice with full brightness for pairing, keep press the button until exceeds 15 seconds, the LED white indication light ring on the remote edge will flash again, receiver will return to the default factory setting.
-
Page 17: Care And Cleaning
NEWHAVEN DC Fan Installation Instructions NOISE: When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor noise. - Page 18 NEWHAVEN DC Fan Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 19 NEWHAVEN DC Fan Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..…...
