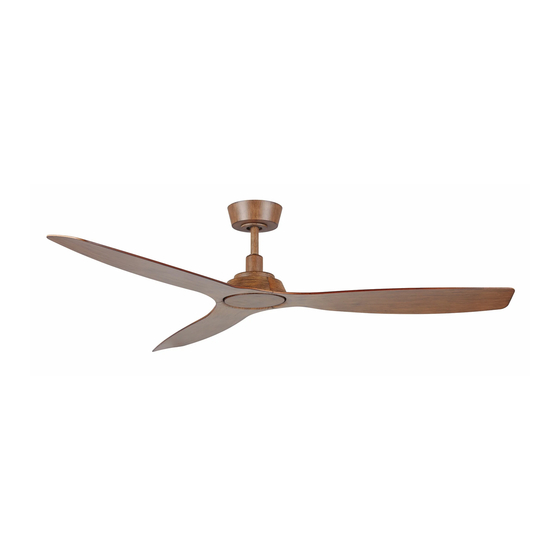

LUCCI Air AIRFUSION MOTO LD-MOTO-52 Installation Operation Maintenance Warranty Manual
Dc ceiling fan
Hide thumbs
Also See for AIRFUSION MOTO LD-MOTO-52:
Related Manuals for LUCCI Air AIRFUSION MOTO LD-MOTO-52
Summary of Contents for LUCCI Air AIRFUSION MOTO LD-MOTO-52
- Page 1 LUCCI AIRFUSION MOTO DC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. v1.0-AU (09/2020)
-
Page 2: Safety Precautions
AIRFUSION MOTO Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 AIRFUSION MOTO Installation Instructions pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1. A single-pole switch on the active of the receiver input of remote control must also be included in the wiring, and located the same room as the ceiling fan.
-
Page 4: Parts List
AIRFUSION MOTO Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
AIRFUSION MOTO Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 AIRFUSION MOTO Installation Instructions INSTALLATION OF BLADE (Fig. 4) 1. Before Installing the blades, remove the blade screws from the top of the fan motor assembly. 2. Align the 2 holes on the blade with the 2 holes on the rotating member of the fan motor assembly. 3.
-
Page 7: Hanging The Fan
AIRFUSION MOTO Installation Instructions INSTALLATION OF BOTTOM COVER (Fig. 5) • Install the bottom cover to the fan assembly then secure it by turning clockwise. Fig. 5 HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. - Page 8 AIRFUSION MOTO Installation Instructions ELECTRICAL WIRING DIAGRAM THE FAN PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG.7) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.
- Page 9 AIRFUSION MOTO Installation Instructions From mounting bracket to fan control unit and motor（Fig. 7b） Connect the supply wiring from the mounting bracket to the input of the fan control unit. Connect the output wires of fan control unit to the input wires of the fan assembly/motor. Connect the output wires (2 Pin connector) of fan control unit to the wires of the reverse function switch on canopy.
-
Page 10: Finishing The Installation
AIRFUSION MOTO Installation Instructions Carefully insert the receiver above the hanger ball in the remainder spacing in the mounting bracket. Take care not to damage or loosen any of the wiring. (Fig. 8). Fig. 8 FINISHING THE INSTALLATION NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 11: Using Your Ceiling Fan
AIRFUSION MOTO Installation Instructions USING YOUR CEILING FAN FAN WALL CONTROL (Fig. 10) Turn on the power and check the operation of the fan. • OFF Position – Fan Off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed •... -
Page 12: After Installation
AIRFUSION MOTO Installation Instructions AFTER INSTALLATION NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. - Page 13 AIRFUSION MOTO Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 14 AIRFUSION MOTO Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………………………………. DATE OF PURCHASE………………………………………………………………………………….…...
