Front panel

Front panel view of the server

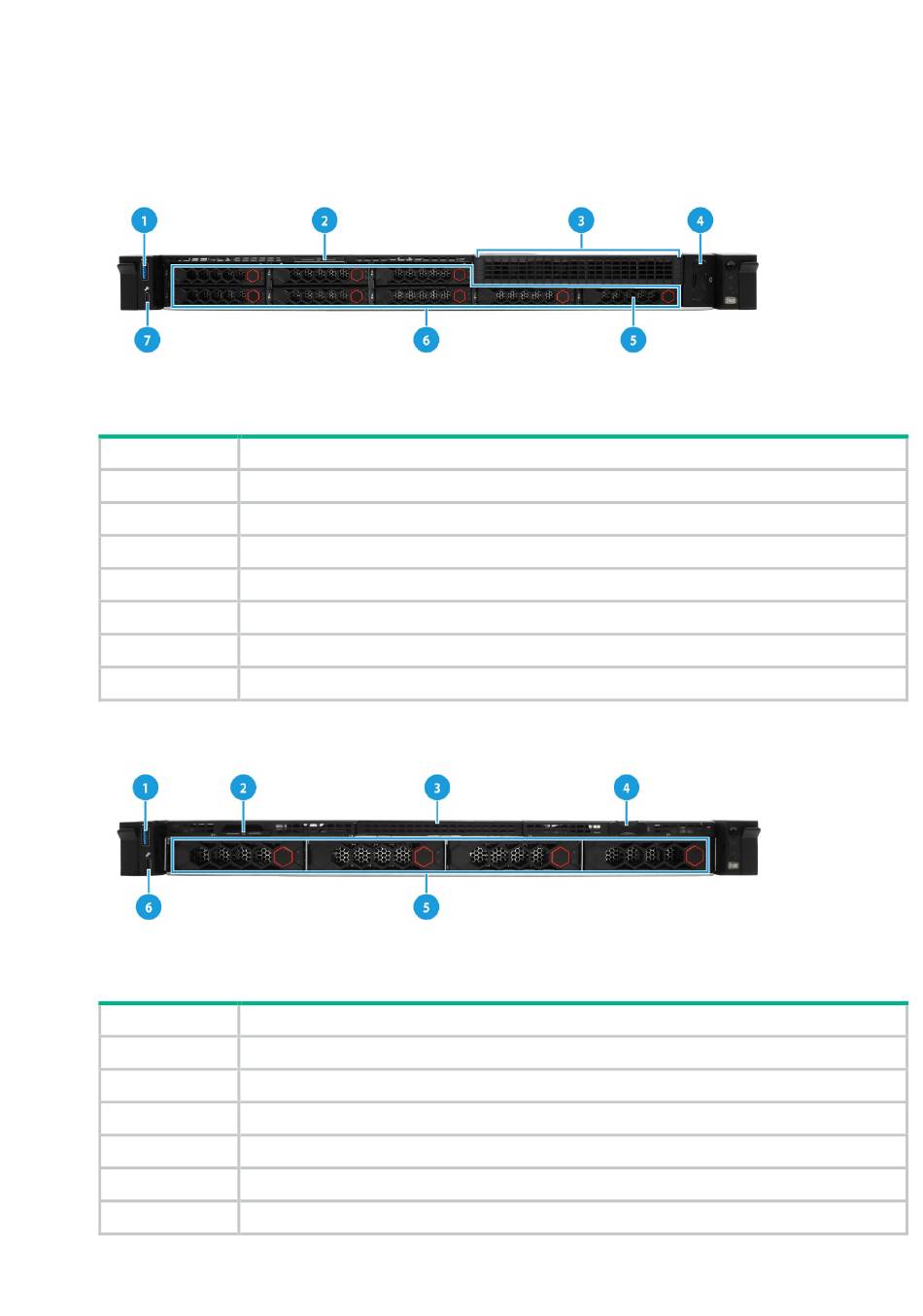

Figure 2 8SFF front panel
Table 1 8SFF front panel description
Item
1
2
3
4
5
6
7
Figure 3 4LFF front panel
Table 2 4LFF front panel description
Item
1
2
3
4
5
6
Description
USB 2.0 connector
Serial label pull tab
2SFF drives or PCIe modules and a riser card on PCIe riser connector 4 (optional)
VGA module (supports one VGA connector) (optional)
Drives or LCD smart management module (optional)
8SFF drives
Dedicated management connector
Description
USB 2.0 connector
Serial label pull tab
ODD blank
VGA module (supports one VGA connector)(optional)
4LFF drives
Dedicated management connector
