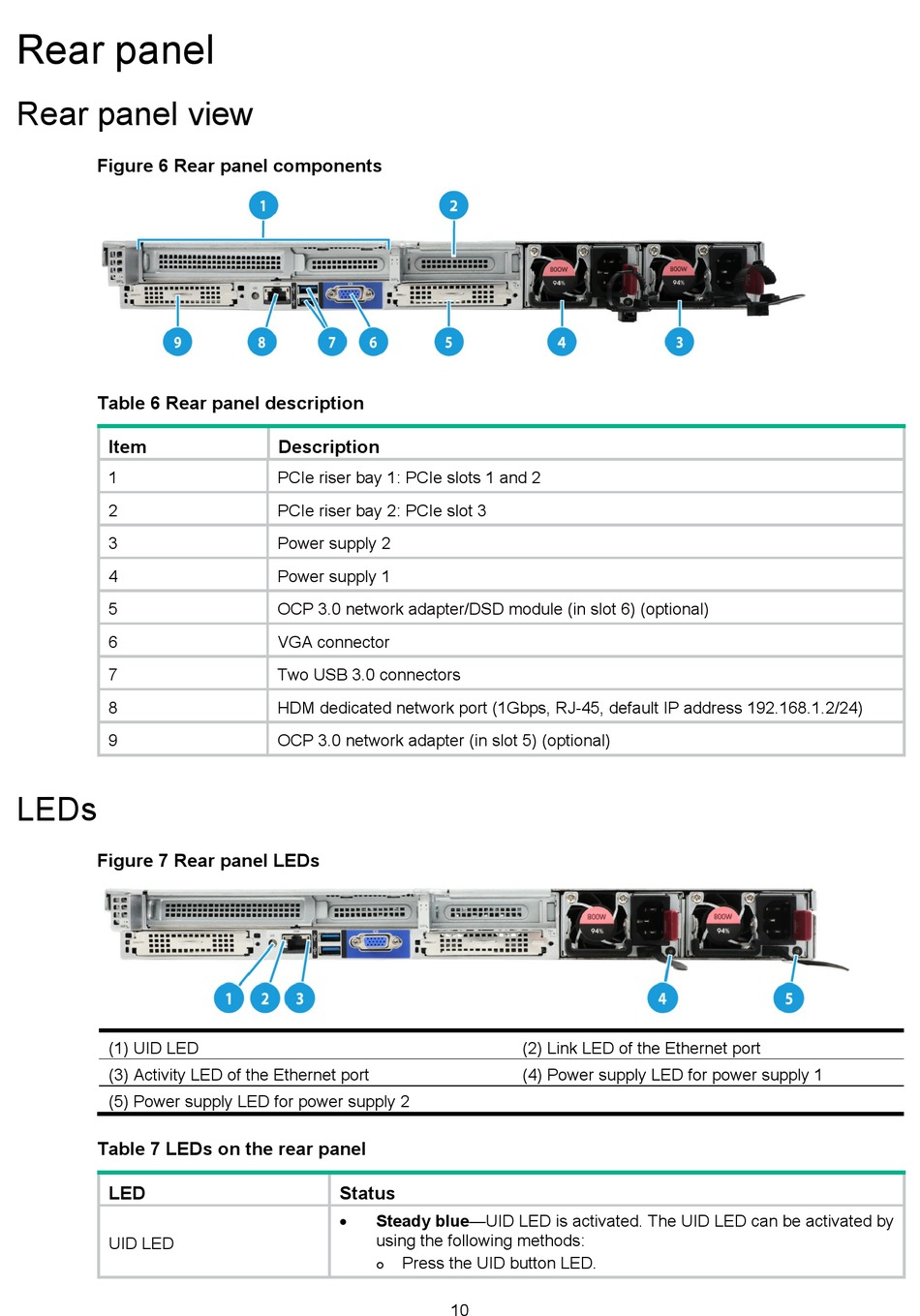

Rear panel

Rear panel view

Figure 6 Rear panel components
Table 6 Rear panel description
Item
1
2
3
4
5
6
7
8
9

LEDs

Figure 7 Rear panel LEDs
(1) UID LED
(3) Activity LED of the Ethernet port
(5) Power supply LED for power supply 2
Table 7 LEDs on the rear panel
LED
UID LED
Description
PCIe riser bay 1: PCIe slots 1 and 2
PCIe riser bay 2: PCIe slot 3
Power supply 2
Power supply 1
OCP 3.0 network adapter/DSD module (in slot 6) (optional)
VGA connector
Two USB 3.0 connectors
HDM dedicated network port (1Gbps, RJ-45, default IP address 192.168.1.2/24)
OCP 3.0 network adapter (in slot 5) (optional)
Status
Steady blue—UID LED is activated. The UID LED can be activated by
•
using the following methods:
Press the UID button LED.

10
(2) Link LED of the Ethernet port
(4) Power supply LED for power supply 1
