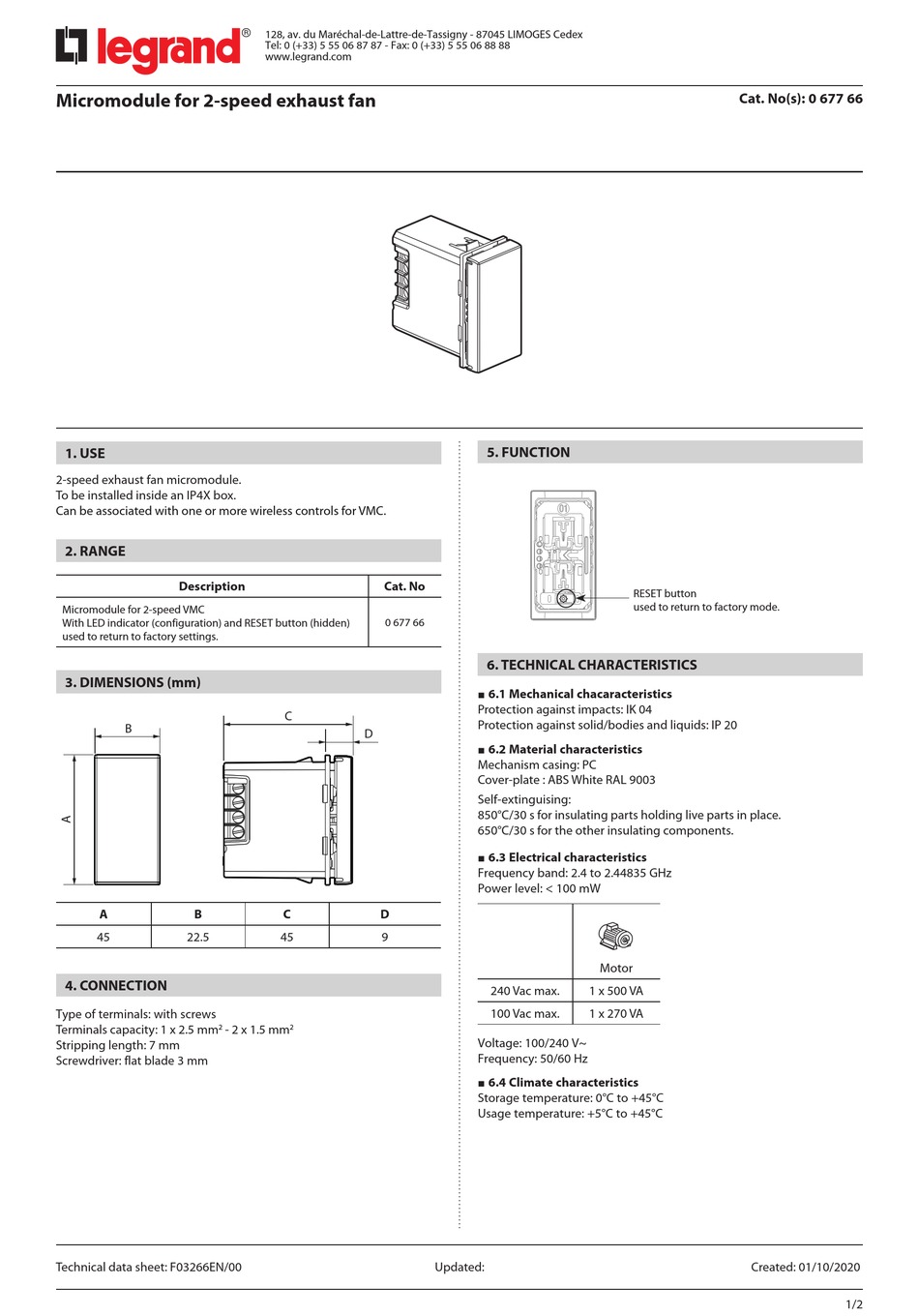

LEGRAND 0 677 66 Manual

Micromodule for 2-speed exhaust fan
1. USE
2-speed exhaust fan micromodule.
To be installed inside an IP4X box.
Can be associated with one or more wireless controls for VMC.
2. RANGE
Description
Micromodule for 2-speed VMC
With LED indicator (configuration) and RESET button (hidden)
used to return to factory settings.
3. DIMENSIONS (mm)
B
A B
45 22.5
4. CONNECTION
Type of terminals: with screws
Terminals capacity: 1 x 2.5 mm - 2 x 1.5 mm
2
Stripping length: 7 mm
Screwdriver: flat blade 3 mm
Technical data sheet: F03266EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: 0 (+33) 5 55 06 87 87 - Fax: 0 (+33) 5 55 06 88 88
www.legrand.com
Cat. No
0 677 66
C
D
C D
45 9
2
Updated:
5. FUNCTION
RESET button
used to return to factory mode.
6. TECHNICAL CHARACTERISTICS
 6.1 Mechanical chacaracteristics
Protection against impacts: IK 04
Protection against solid/bodies and liquids: IP 20
 6.2 Material characteristics
Mechanism casing: PC
Cover-plate : ABS White RAL 9003
Self-extinguising:
850°C/30 s for insulating parts holding live parts in place.
650°C/30 s for the other insulating components.
 6.3 Electrical characteristics
Frequency band: 2.4 to 2.44835 GHz
Power level: < 100 mW
Motor
240 Vac max. 1 x 500 VA
100 Vac max. 1 x 270 VA
Voltage: 100/240 V~
Frequency: 50/60 Hz
 6.4 Climate characteristics
Storage temperature: 0°C to +45°C
Usage temperature: +5°C to +45°C
Cat. No(s): 0 677 66
Created: 01/10/2020
