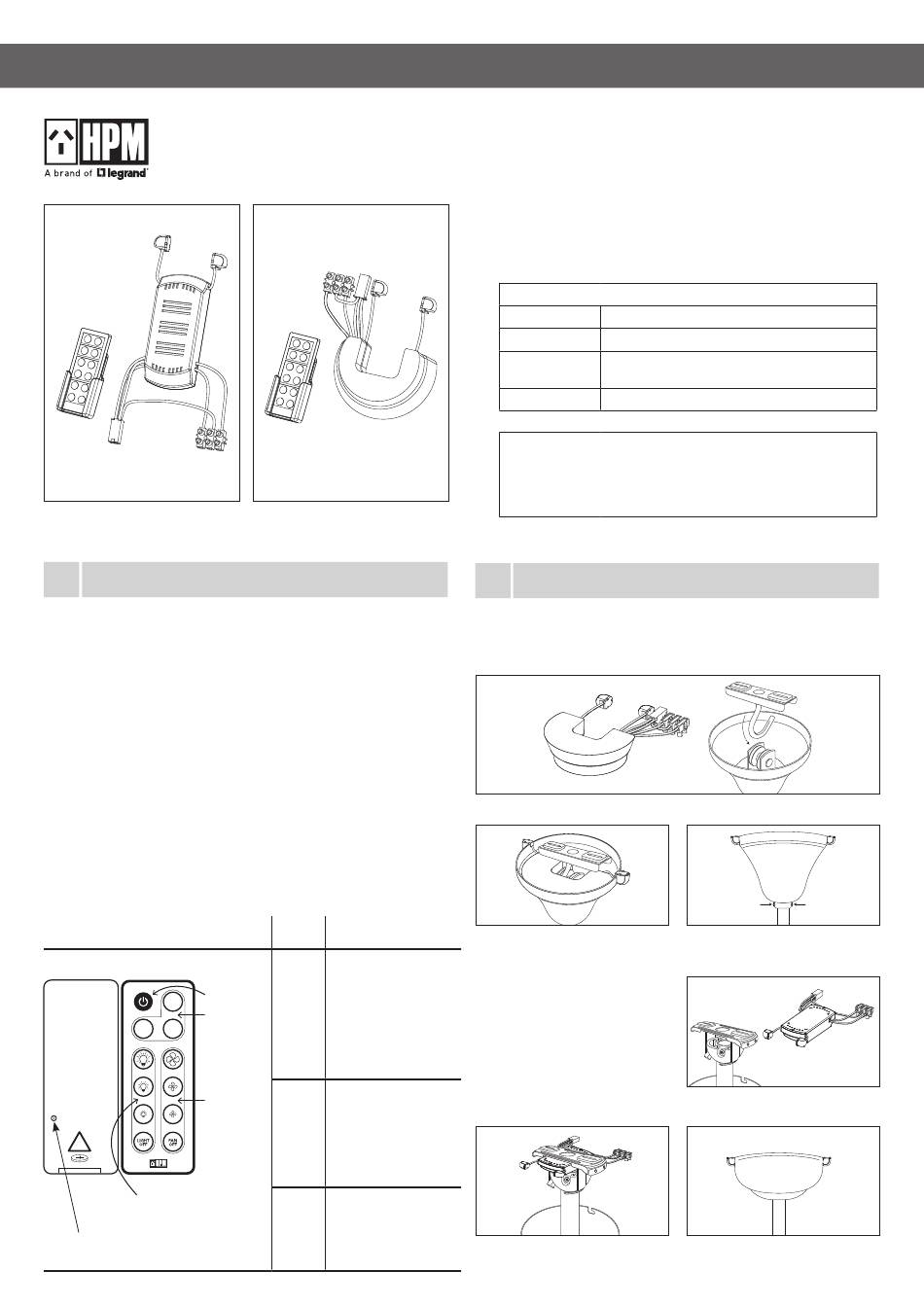

LEGRAND HPM CFREMOTEH Instruction Manual

CFREMOTEH
PLEASE READ ALL INSTRUCTIONS CAREFULLY. RETAIN FOR FUTURE REFERENCE.
INSTALLATION MUST BE CARRIED OUT BY A LICENSED ELECTRICAL CONTRACTOR.
1

Important considerations

1. The CFREMOTE range is compatible with HPM's CF Series of
Ceiling Sweep Fans only.
2. CFREMOTEH is compatible with HPM Hang-Sure fans only.
CFREMOTEJ is compatible with HPM J-Hook fans only.
3. The infrared transmitter has a maximum working range of 10
metres (unobstructed).
4. The remote control cannot be used in combination with a wall
mounted fan controller.
5. The same remote control can be used to control several of
HPM CF ceiling fans fitted with the receiver module.
6. Dimming function works with dimmable halogen,
incandescent and some LED lamps only. Compatibility with
non-dimmable or CFL lamps is not guaranteed. Dimming
levels will vary depending on the dimmable lamp.
7. Fan can be directly connected using the compatible cable
connectors on the Remote Control Kit.

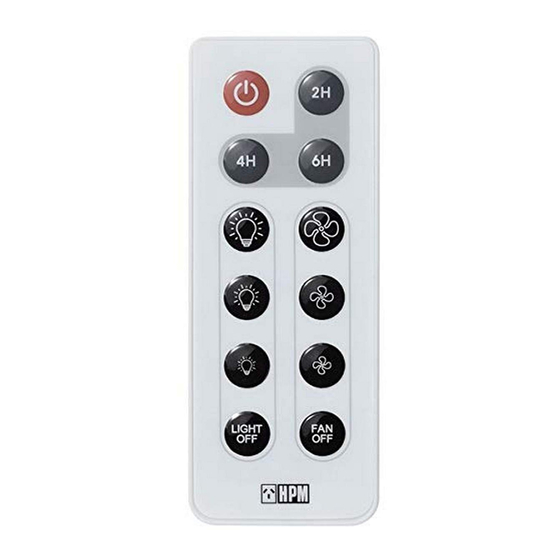

Hand-held Remote
All ON/OFF
2H
2H
Timer
2, 4 & 6 hour
4H 6H
4H 6H
Fan Speed
Low, med & high
FOR CFREMOTEH
!
Wall-mount
bracket
included
Light
Low, med & high
Safety screw must be installed after replacing battery.
Fig. 1
Ceiling Fan Infrared Remote Control Kit
CFREMOTEJ
Mode Operation
Timer Allows the fan to run
for a further 2/4/6
hours of operation
before switching off
automatically.
Does not affect the
light output.
Fan 3 fan speeds can be
Speed selected.
FAN OFF will switch
off fan when in
Timer mode.
Light 3 light levels can be
selected. Requires a
dimmable lamp to be
fitted in lighting kit.
CFREMOTEH,CFREMOTEJ
Cat. No:

Specifications

Input voltage 230 - 240 V a.c. 50 Hz
Standby Power < 0.5 W
Output Rating Fan motor 65 VA max.
Light 120 VA max.
Light Dimmer Trailing Edge Dimmer
Box Contents
■ Receiver
■ Wall mount bracket
■ Remote control (with CR2025 lithium battery included)
2

Mounting

J-Hook Bracket
Hang the fan on the J-Hook.
Ensure that all wires are clear of the rubber roller.
Position the receiver in the cowling.
Place the sensors on edge of
cowling at opposite ends.
Hang-sure Bracket
Hang the fan on the bracket.
Ensure bracket guide pin is
fitted into slot on ball joint
and that all wires are clear
of the ball joint.
Place the sensors on edge of
cowling at opposite ends.
Instruction Manual
Tighten the 2 screws to the
downrod.
Insert the receiver into the
Hang-sure bracket.
Fix the cowling to the bracket
by tightening the 2 screws.
